Beckhoff EQ2809-0022

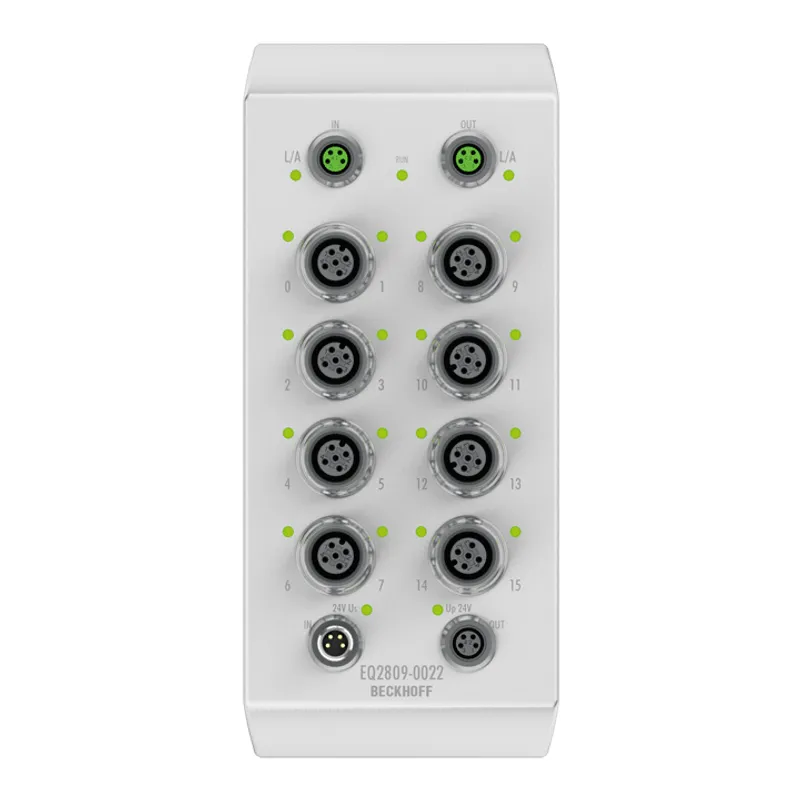

EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M12, stainless steel

MPN: EQ2809-0022
Category: EQ2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EQ2809-0022?

The EQ2809 EtherCAT Box with digital outputs connects the binary control signals from the controller on to the actuators at the process level. The 16 outputs handle load currents of up to 0.5 A each, although the sum current is limited to 4 A. This makes

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Number of outputs	16
Output connections	M12 x 1, 5-pin, a-coded
Rated load voltage	24 V DC (-15%/+20%)
Load type	ohmic, inductive, lamp load
Nominal output voltage	24 V DC (-15%/+20%)
Max. output current	0.5 A per channel, individually short-circuit proof, ∑ 4 A
Switching times	typ. TON: 60 µs, typ. TOFF: 300 µs
Short-circuit current	typ. 1.5 A
Distributed clocks	–
Current consumption from US	typ. 130 mA
Auxiliary power current	typ. 20 mA + load
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Electrical isolation	500 V
Special features	stainless steel, Hygienic Design
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP69K (according to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	72 mm x 160 mm x 43 mm
Material	stainless steel
Installation	2 fixing lugs for M5
