EtherCAT Box, 4-channel analog input, temperature, thermocouple, 16 bit, M12, Ex i
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EPXxxxx | Explosion protection (Ex i) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EPX3314-0022 be shipped?
EPX3314-0022 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EPX3314-0022 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EPX3314-0022 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EPX3314-0022, subject to availability and destination.

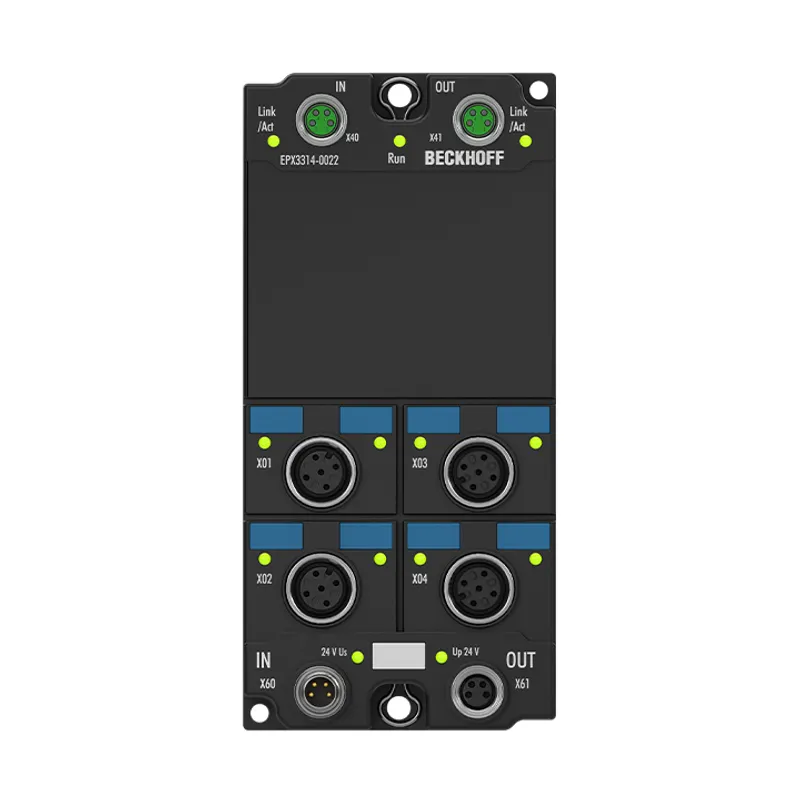

The EPX3314-0022 EtherCAT Box allows direct connection of thermocouples from zone 0/20 and 1/21 hazardous areas. The EPX3314-0022 circuit can operate sensors in 2-wire technology. Linearization takes place across the entire, freely selectable temperature
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Number of inputs | 4 |
| Input connections | M12 x 1, 5-pin, a-coded |
| Connection method | 2-wire |
| Conversion time | 10…5000 ms (adjustable, default: 310 ms) |
| Resolution | 16 bit (incl. sign) |
| Sensor types | thermocouples type K, J, L, E, T, N, U, B, R, S, C (default: type K) |
| Measuring range | depending on sensor; preset is type K: -270…+1370°C, voltage measurement: ±30…±75 mV, for further types and details see documentation |
| Measurement error/uncertainty | ±0.3% (relative to full scale value) |
| Input filter | configurable |
| Sensor supply | from load supply voltage UP |
| Current consumption from US | 30 mA |
| Power supply connection | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Special features | integrated limit value monitoring, digital filters and characteristic curve linearization |
| Weight | approx. 300 g |
| Operating temperature | -25…+70°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL, ATEX, IECEx |
| Dimensions (W x H x D) | 60 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
