Beckhoff EQ1809-0022

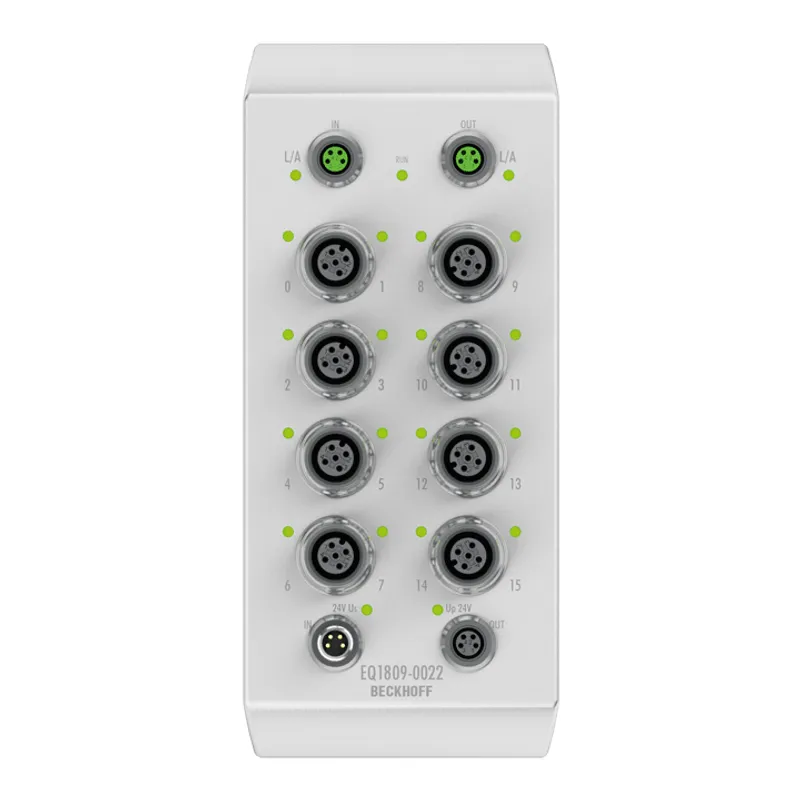

EtherCAT Box, 16-channel digital input, 24 V DC, 3 ms, M12, stainless steel
- MPN
- EQ1809-0022
- Category
- EQ1xxx | Digital input
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff EQ1809-0022?
The EQ1809-0022 EtherCAT Box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Specification | EN 61131-2, type 1/3 |
| Number of inputs | 16 |
| Input connections | M12 x 1, 5-pin, A-coded |
| Nominal input voltage | 24 V DC (-15%/+20%) |
| Input filter | 3.0 ms |
| “0” signal voltage | -3…+5 V |
| “1” signal voltage | 11…30 V, 6 mA input current (EN 61131-2, type 3) |
| Input current | typ. 3 mA (EN 61131-2, type 3) |
| Distributed clocks | – |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Sensor supply | from load supply voltage, max. 0.5 A, short-circuit proof in total |
| Current consumption from US | typ. 130 mA |
| Electrical isolation | 500 V |
| Special features | stainless steel, Hygienic Design |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP69K (according to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 72 mm x 160 mm x 43 mm |
| Material | stainless steel |
| Installation | 2 fixing lugs for M5 |
