ABB GJL1201902R0001

LB6 Soldering Receptacle 5-pole

MPN
GJL1201902R0001
EAN
4013614051074
Price and lead time confirmed within 1 business day

Discontinued by ABB — we can still source the original GJL1201902R0001 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

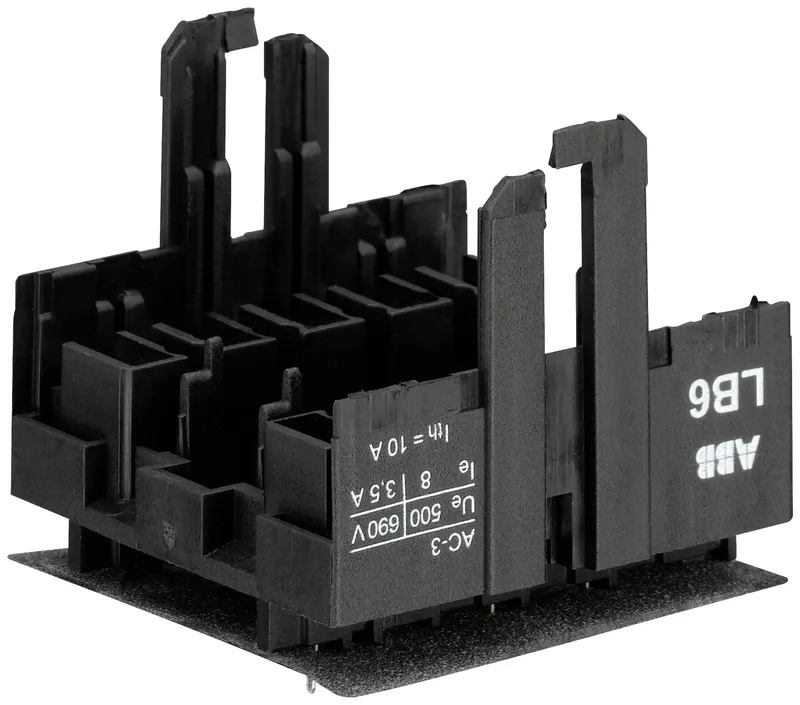

What is the ABB GJL1201902R0001?

The LB6 is a soldering receptacle for 5-pole B-Mini contactors with flat pin connection. With the LB6-CA, all B6-F, BC6-F, B6S-F, B7-F, BC7-F, K6-F and KC6-F can be quickly and easily changed to circuit boards by soldering the LB6 to the board and plugging the contactor into the socket.

Lifecycle: ABB sales units no longer offer this product (end of life). PartnerPLC sources discontinued ABB parts — request a quote for availability, or ask us about the current ABB successor.

Specifications

General

Order code (ABB product ID)GJL1201902R0001
TypeLB6
LifecycleEnd of life (no longer sold by ABB sales units)
Country of originSweden

Ordering

Minimum Order Quantity1 piece
Customs Tariff Number85366990

Dimensions

Product Net Width47.5 mm
Product Net Depth / Length40 mm
Product Net Height44 mm
Product Net Weight0.02 kg

Technical

StandardsUL 60947-1, UL 60947-4-1
Conventional Free-air Thermal Current (I<sub>th</sub>)Auxiliary Circuit 10 A, Main Circuit 10 A
Rated Operational Current AC-3 (I<sub>e</sub>)(500 V) 55 °C 8 A, (690 V) 55 °C 3.5 A
Rated Insulation Voltage (U<sub>i</sub>)690 V
Terminal TypeSoldering Pins
Suitable ForB6-F, BC6-F, B6S-F, B7-F, BC7-F, K6-F, KC6-F
Suitable for Product ClassMini Contactors
Product NameSoldering Socket

Technical UL/CSA

Maximum Operating Voltage UL/CSAMain Circuit 300 V AC

Environmental

Ambient Air TemperatureOperation -25 ... +50 °C, Storage -40 ... +80 °C

Material Compliance

RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification CodeX
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.0 : 27371392
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory

GJL1201902R0001: frequently asked questions

Can I still buy the GJL1201902R0001 now that it is discontinued?

Yes. ABB has discontinued the GJL1201902R0001, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can GJL1201902R0001 be shipped?

GJL1201902R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GJL1201902R0001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GJL1201902R0001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GJL1201902R0001, subject to availability and destination.

More ABB parts

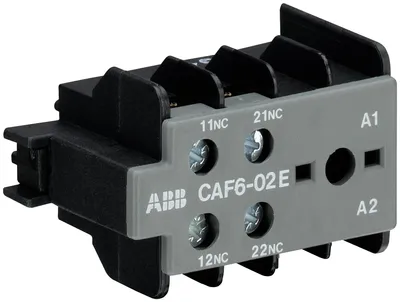

ABB GJL1201330R0010 – CAF6-02E Auxiliary Contact 0NO/2NC screw terminal, front mounted
ABB
GJL1201330R0010

CAF6-02E Auxiliary Contact 0NO/2NC screw terminal, front mounted

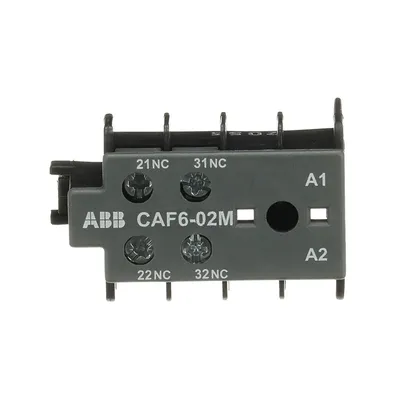

ABB GJL1201330R0011 – CAF6-02M Auxiliary Contact 0NO/2NC screw terminal, front mounted
