ABB GJL1201330R0010

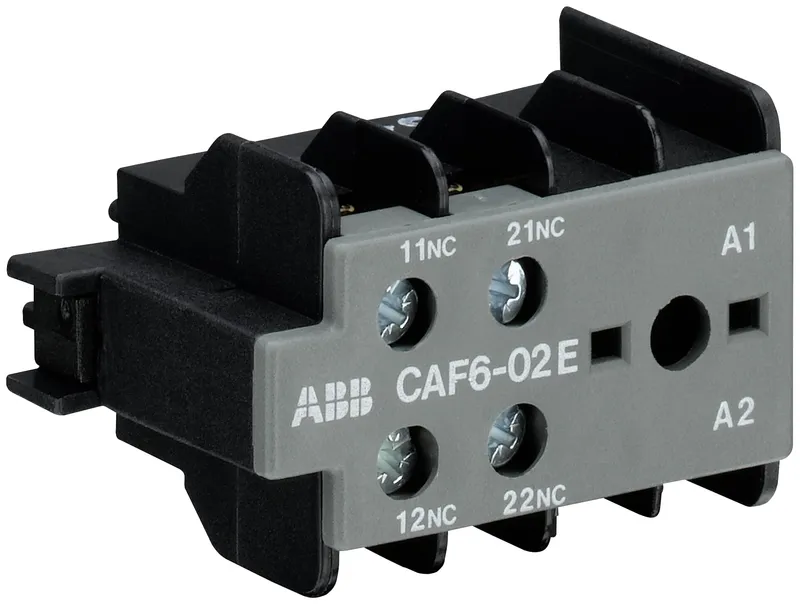

CAF6-02E Auxiliary Contact 0NO/2NC screw terminal, front mounted

MPN
GJL1201330R0010
EAN
4013614148385
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB GJL1201330R0010?

The CAF6-02E is an auxiliary contact for front mounting with 2 auxiliary contact and screw terminals.

Specifications

General

Order code (ABB product ID)GJL1201330R0010
TypeCAF6-02E
LifecycleActive (current ABB product)
Country of originGermany

Ordering

Minimum Order Quantity1 piece
Customs Tariff Number85365080

Dimensions

Product Net Width47.5 mm
Product Net Depth / Length26.5 mm
Product Net Height29 mm
Product Net Weight0.02 kg

Technical

Number of Main Contacts NO0
Number of Main Contacts NC0
Number of Auxiliary Contacts NO0
Number of Auxiliary Contacts NC2
Number of Poles2P
StandardsIEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L
Rated Operational VoltageAuxiliary Circuit 690 V AC, Auxiliary Circuit 250 V DC
Rated Frequency (f)Auxiliary Circuit 50 Hz, Auxiliary Circuit 60 Hz, Auxiliary Circuit DC
Conventional Free-air Thermal Current (I<sub>th</sub>)Auxiliary Circuit 6 A
Rated Operational Current AC-15 (I<sub>e</sub>)(24 V) 4 A, (240 V) 4 A, (500 V) 2 A, (380 / 400 V) 3 A
Rated Operational Current DC-13 (I<sub>e</sub>)(24 V) 1.5 A, (110 V) 0.4 A, (220 / 240 V) 0.04 A
Short-Circuit Protective DevicesgG Type Fuses 10 A
Rated Insulation Voltage (U<sub>i</sub>)690 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency(AC-15) 600 cycles per hour, (DC-13) 600 cycles per hour
Minimum Switching Capacity17 V, 5 mA
Power Lossat Rated Operating Conditions AC-15 per Pole 0.25 W
Connecting Capacity Auxiliary CircuitFlexible with Ferrule 1/2x 1 ... 2.5 mm², Flexible 1/2x 1 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm²
Wire Stripping LengthAuxiliary Circuit 9 mm
Degree of ProtectionIP20
Tightening TorqueAuxiliary Circuit 0.8 ... 1.1 N·m
Terminal TypeScrew Terminals
Suitable ForB6-30-01, BC6-30-01, B7-30-01, BC7-30-01, VB6-30-01, VBC6-30-01, VB7-30-01, VBC7-30-01, VB6A-30-01, VBC6A-30-01, VB7A-30-01, VBC7A-30-01
Suitable for Product ClassMini Contactors
Product NameAuxiliary Contact

Technical UL/CSA

Maximum Operating Voltage UL/CSA600 V AC
General Use Rating UL/CSA(600 V AC) 5 A
Connecting Capacity Auxiliary Circuit UL/CSAStranded 1/2x 22-10 AWG
Contact Rating UL/CSAA600
Tightening Torque UL/CSAAuxiliary Circuit 7 in·lb

Environmental

Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +80 °C
Maximum Operating Altitude Permissible2000 m
Resistance to Shock acc. to IEC 60068-2-2711 ms Pulse 15g
Resistance to Vibrations5g 5 ... 150 Hz

Material Compliance

RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification CodeK
ETIM 7EC000041 - Auxiliary contact block
ETIM 8EC000041 - Auxiliary contact block
ETIM 9EC000041 - Auxiliary contact block
eClassV11.0 : 27371302
UNSPSC39121522
IDEA Granular Category Code (IGCC)4743 >> Auxiliary contact block

GJL1201330R0010: frequently asked questions

When can GJL1201330R0010 be shipped?

GJL1201330R0010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GJL1201330R0010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GJL1201330R0010 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GJL1201330R0010, subject to availability and destination.
