ABB GJL1201903R0001

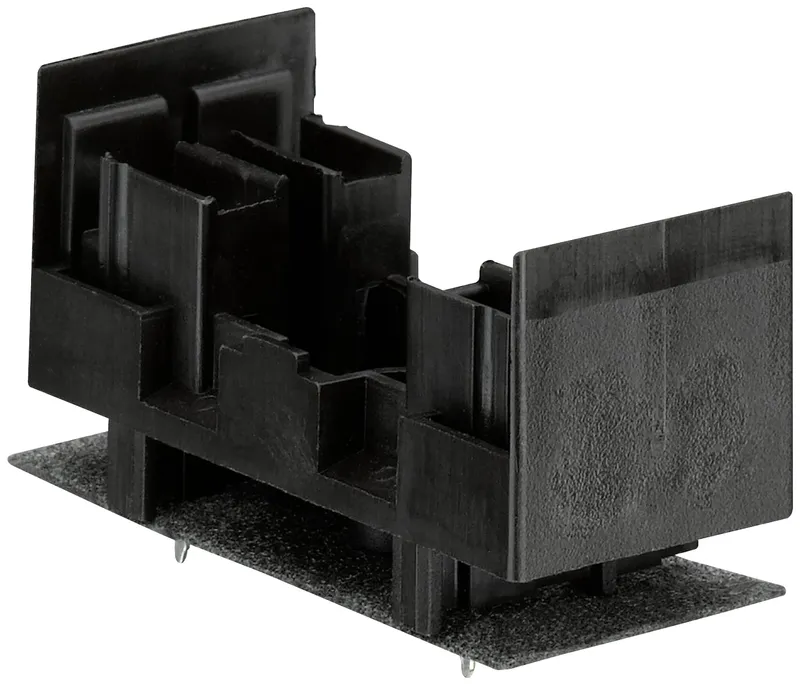

LB6-CA Soldering Receptacle 2-pole

MPN
GJL1201903R0001
EAN
4013614051081
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB GJL1201903R0001?

The LB6-CA is a soldering receptacle for 2-pole auxiliary contacs with flat pin connection. With the LB6-CA, the 2-pole auxiliary contact can be quickly and easily changed to circuit boards by soldering the LB6-CA to the board and plugging the auxiliary contact into the socket.

Specifications

General

Order code (ABB product ID)GJL1201903R0001
TypeLB6-CA
LifecycleActive (current ABB product)

Ordering

Minimum Order Quantity1 piece
Customs Tariff Number85365080

Dimensions

Product Net Width44 mm
Product Net Depth / Length22 mm
Product Net Height20.3 mm
Product Net Weight0.01 kg

Technical

StandardsUL 60947-1, UL 60947-4-1
Conventional Free-air Thermal Current (I<sub>th</sub>)Auxiliary Circuit 8 A, Main Circuit 8 A
Rated Insulation Voltage (U<sub>i</sub>)690 V
Terminal TypeSoldering Pins
Suitable ForCA6-11E-F, CA6-11K-F, CA6-11M-F, CA6-11N-F
Suitable for Product ClassMini Contactors
Product NameSoldering Socket

Technical UL/CSA

Maximum Operating Voltage UL/CSAMain Circuit 300 V AC

Environmental

Ambient Air TemperatureOperation -25 ... +50 °C, Storage -40 ... +80 °C

Material Compliance

RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification CodeX
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.0 : 27371392
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory

GJL1201903R0001: frequently asked questions

When can GJL1201903R0001 be shipped?

GJL1201903R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GJL1201903R0001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GJL1201903R0001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GJL1201903R0001, subject to availability and destination.
