ABB GJL1201901R0001 – PZ6 Socket
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Mini Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.02 kg |
| UPC / EAN | 4013614051067 |
Shipping & availability
When can GJL1201901R0001 be shipped?
GJL1201901R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GJL1201901R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GJL1201901R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GJL1201901R0001, subject to availability and destination.

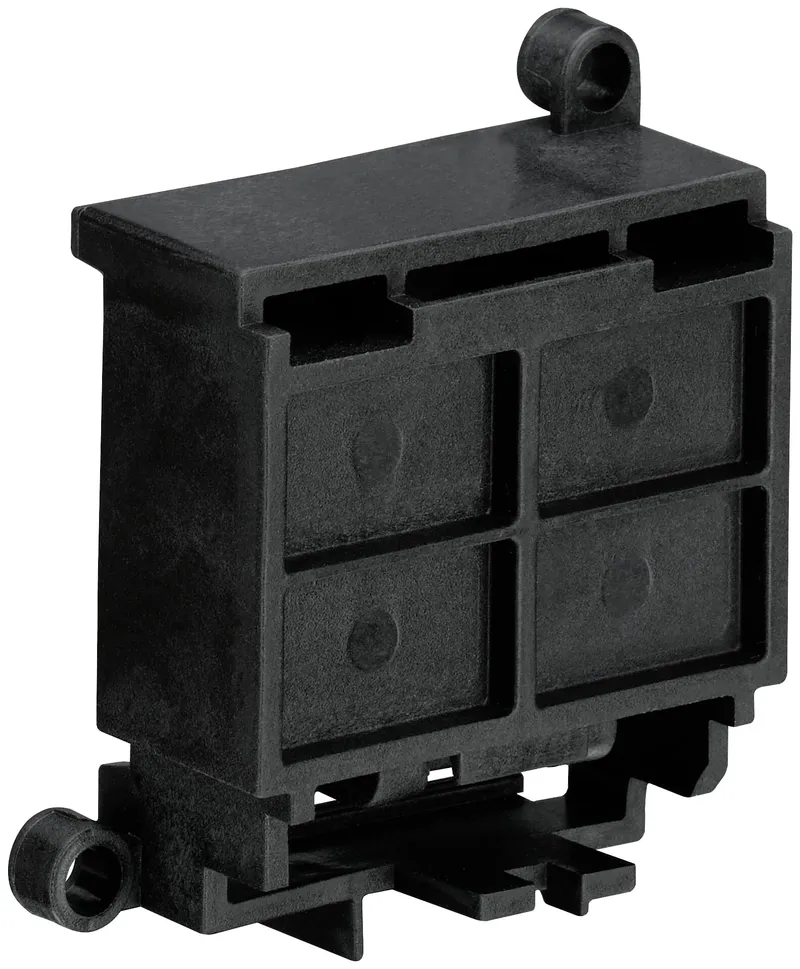

The PZ6 Socket is an adapter socket for all B-mini contactors to close the gap between the DIN-rail or a mounting plate and the contactor.
Specifications
General
| Order code (ABB product ID) | GJL1201901R0001 |
| Type | PZ6 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 52 mm |
| Product Net Depth / Length | 23 mm |
| Product Net Height | 61.5 mm |
| Product Net Weight | 0.02 kg |
Technical
| Terminal Type | No Terminals |
| Suitable For | B6, BC6, B7, BC7, VB6, VBC6, VB7, VBC7 |
| Suitable for Product Class | Mini Contactors |
| Product Name | Socket |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards
| Object Classification Code | X |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts

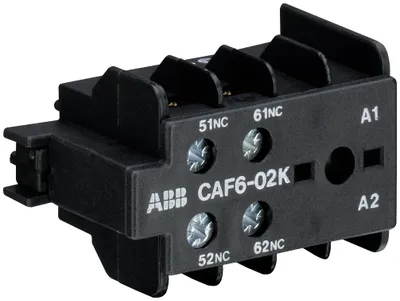

Available on requestCAF6-02K Auxiliary Contact 0NO/2NC screw terminal, front mounted

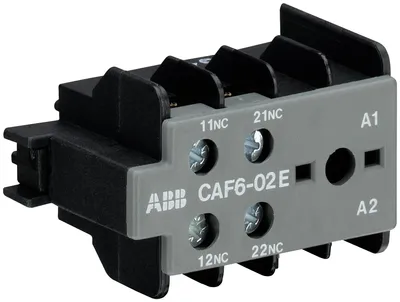

Available on requestCAF6-02E Auxiliary Contact 0NO/2NC screw terminal, front mounted

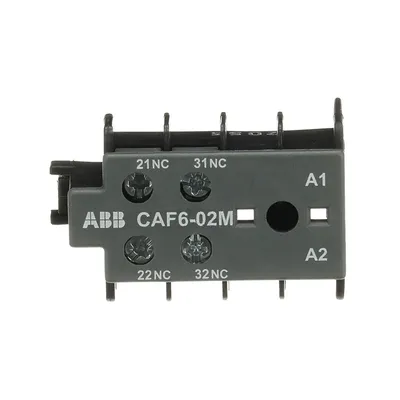

Available on requestCAF6-02M Auxiliary Contact 0NO/2NC screw terminal, front mounted
Available on requestCAF6-02N Auxiliary Contact 0NO/2NC screw terminal, front mounted

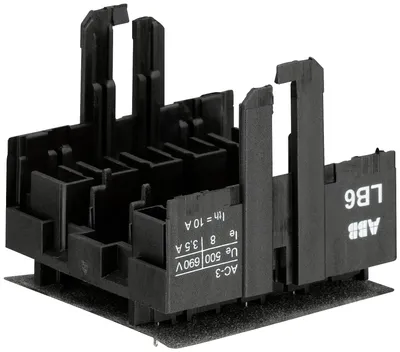

Available on requestLB6 Soldering Receptacle 5-pole

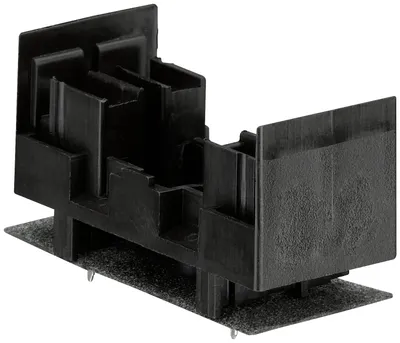

Available on requestLB6-CA Soldering Receptacle 2-pole

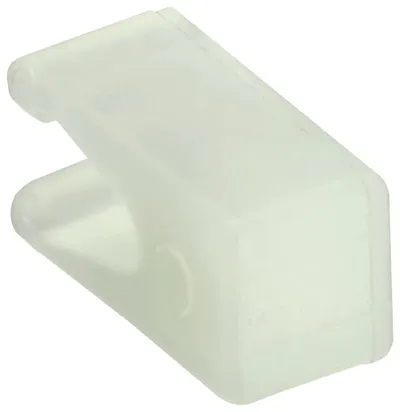

Available on requestBN6 Plunger for Mini Contactor (50 pcs) BN6 Plunger for Mini Contactor 50 pcs

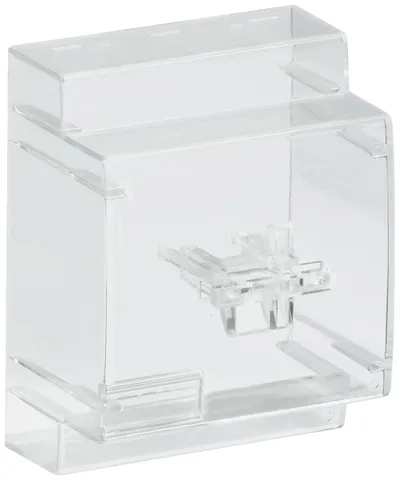

Available on requestLT6-B Mini Contactor Cover Cap
