ABB GJL1201906R0001 – LT6-B Mini Contactor Cover Cap
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Mini Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.015 kg |
| UPC / EAN | 4013614051104 |
Shipping & availability
When can GJL1201906R0001 be shipped?
GJL1201906R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GJL1201906R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GJL1201906R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GJL1201906R0001, subject to availability and destination.

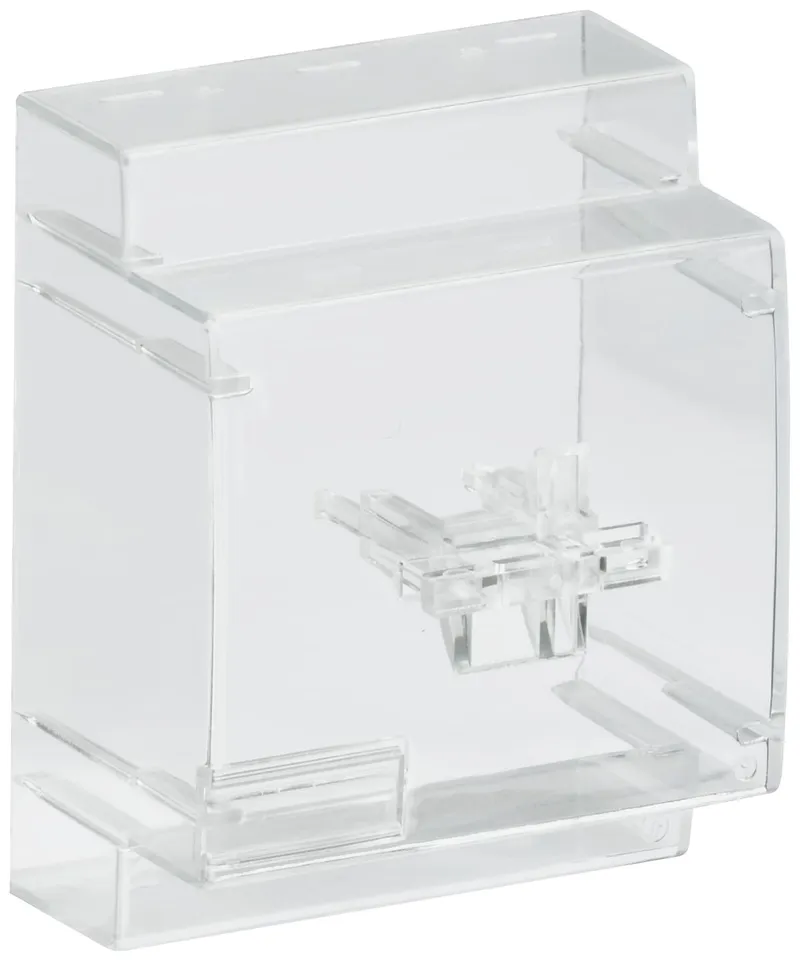

The LT6-B Mini Contactor Cover Cap is a sealable and transparent protective covers to protect the devices against accidental contact. The LT6-B Cover Cap is sealable and can be easily clipped onto all B6, BC6, B7, BC7, K6 and KC6 mini contactors.
Specifications
General
| Order code (ABB product ID) | GJL1201906R0001 |
| Type | LT6-B |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 52.5 mm |
| Product Net Depth / Length | 63 mm |
| Product Net Height | 32.4 mm |
| Product Net Weight | 0.015 kg |
Technical
| Rated Insulation Voltage (U<sub>i</sub>) | 690 V |
| Terminal Type | No Terminals |
| Suitable For | B6, BC6, B6S, B7, BC7, B7D, K6, KC6, K6S |
| Suitable for Product Class | Mini Contactors |
| Product Name | Cover cap |
Environmental
| Ambient Air Temperature | Operation -25 ... +50 °C, Storage -40 ... +80 °C |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards
| Object Classification Code | N |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3845909 |
| E-Number (Norway) | 4184097 |
| E-Number (Sweden) | 3210091 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (2CDC102047M6802) | |
| Dimension Diagram (GJL1200423) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
