ABB GJL1201908R0001

BSM6-30 Reversing Connecting Link

MPN
GJL1201908R0001
EAN
4013614140631
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

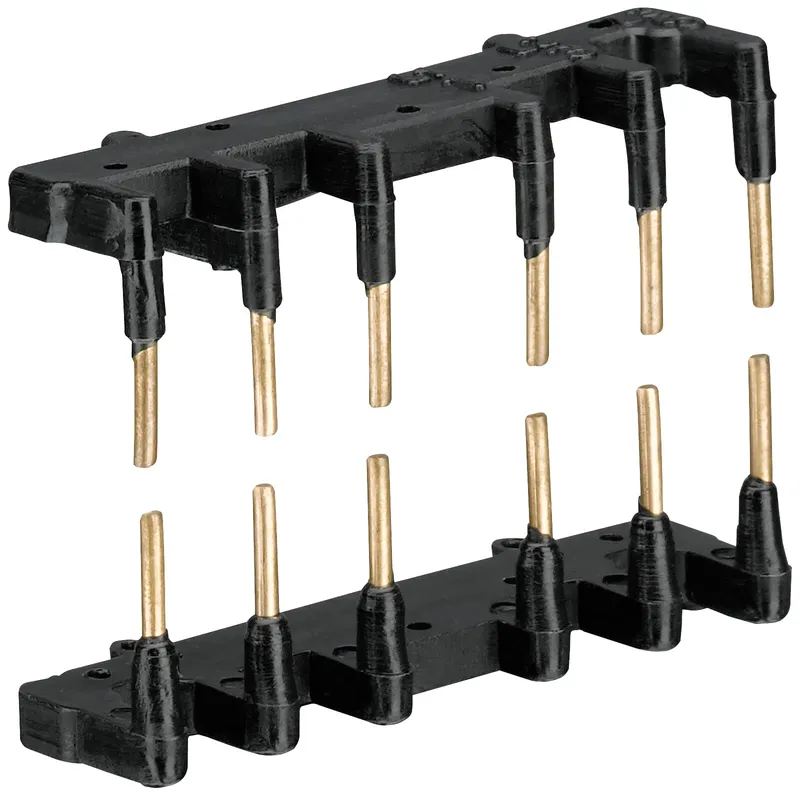

What is the ABB GJL1201908R0001?

The BSM6-30 reversing connecting link is used to connect the main poles of two 3-pole contactors

mounted side by side. The BSM6-30 reversing connecting link is made up of 1 insulated upstream and 1 insulated downstream connections and suitable for all VB6/VB7 mini reversing contactors. The connector ensures a quick and safe connection of the contacts.

Specifications

General

Order code (ABB product ID)GJL1201908R0001
TypeBSM6-30
LifecycleActive (current ABB product)
Country of originSwitzerland

Ordering

Minimum Order Quantity1 piece
Customs Tariff Number85389099

Dimensions

Product Net Width53 mm
Product Net Depth / Length15 mm
Product Net Height17 mm
Product Net Weight0.01 kg

Technical

Rated Insulation Voltage (U<sub>i</sub>)690 V
Terminal TypeNo Terminals
Suitable ForVB6, VBC6, VB6A, VBC6A, VB7, VBC7, VB7A, VBC7A
Suitable for Product ClassMini Contactors
Product NameConnecting Link

Material Compliance

RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification CodeX
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.0 : 27371392
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
E-Number (Norway)4184098

GJL1201908R0001: frequently asked questions

When can GJL1201908R0001 be shipped?

GJL1201908R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GJL1201908R0001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GJL1201908R0001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GJL1201908R0001, subject to availability and destination.

More ABB parts

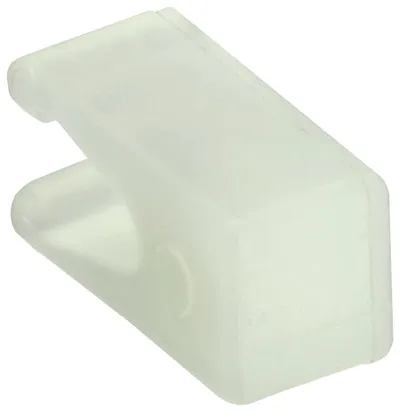

ABB GJL1201904R0001 – BN6 Plunger for Mini Contactor (50 pcs) BN6 Plunger for Mini Contactor 50 pcs
ABB
GJL1201904R0001

BN6 Plunger for Mini Contactor (50 pcs) BN6 Plunger for Mini Contactor 50 pcs

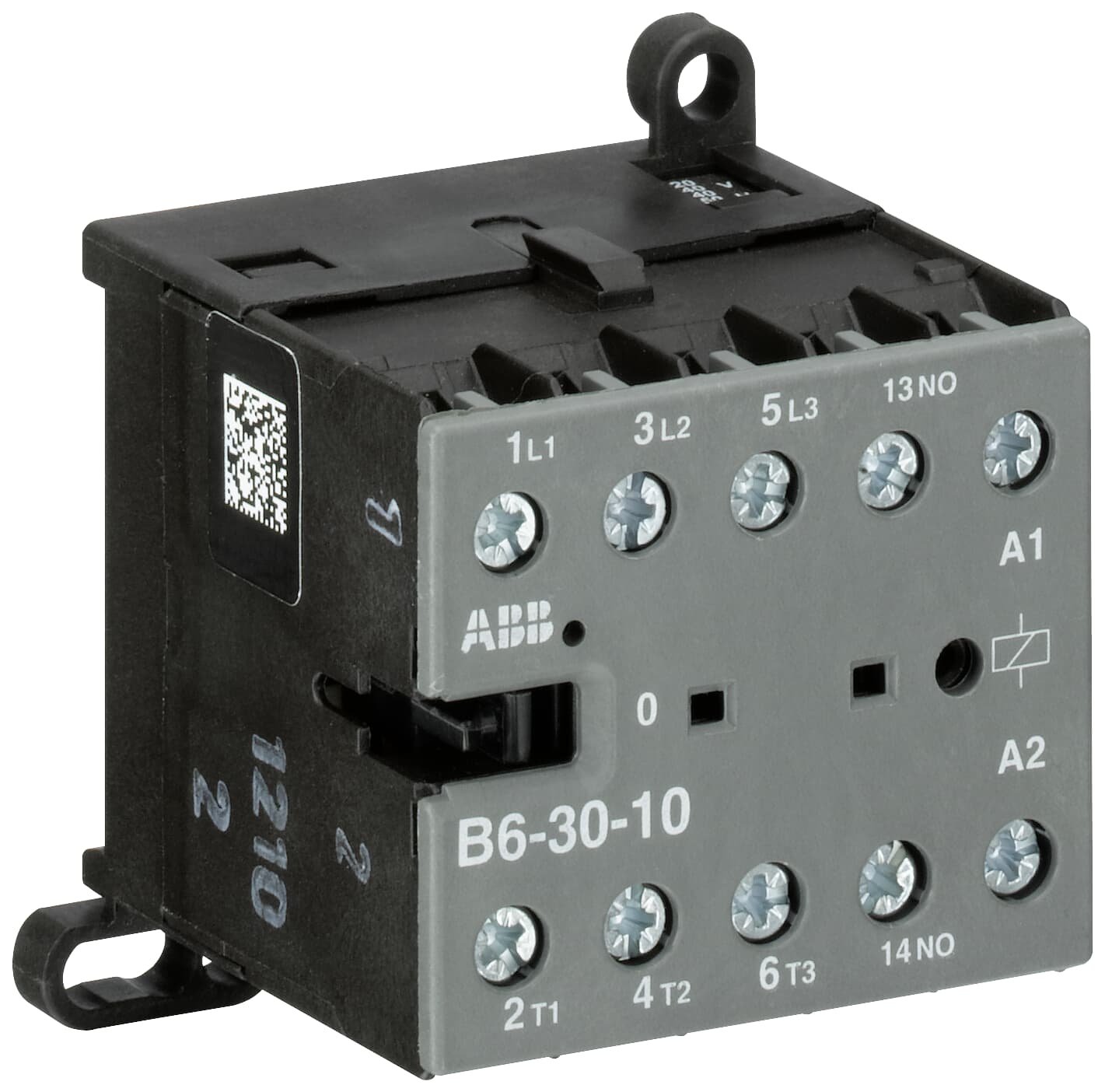

ABB GJL1211001R0011 – Mini Contactor B6 24 V AC - 3 NO - 0 NC - Screw Terminals
