ABB 1SBN073403T1000

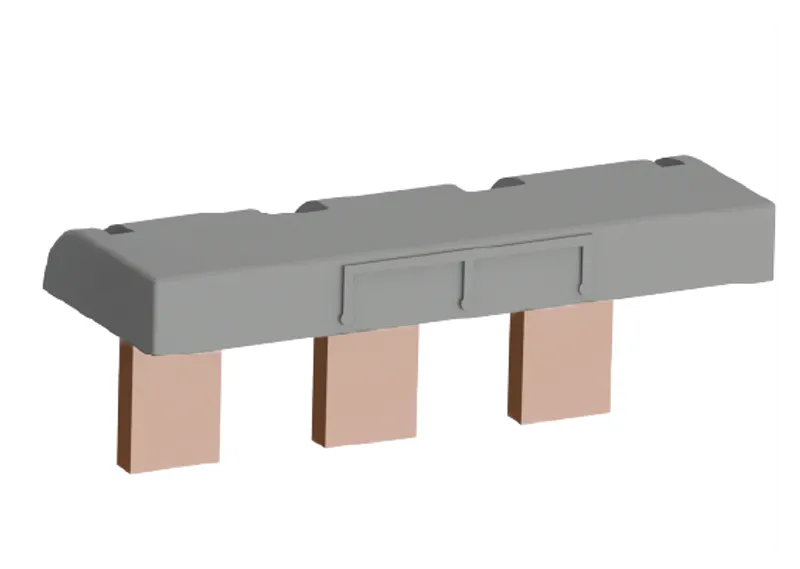

LY65-4 Connecting Strip

MPN
1SBN073403T1000
EAN
3471525000566
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB 1SBN073403T1000?

LY65-4 is an insulated connecting strip used on 3-pole AF(C)(S)40..65 contactors:

To obtain a star point (3 parallel-connected poles)

To connect 3 poles in parallel and thus increase the AC load passing through the flow path made up of the parallel-connected poles. The relevant cable cross-sectional area may limit the maximum permissible current: consult technical data information on catalogue.

Specifications

General

Order code (ABB product ID)1SBN073403T1000
TypeLY65-4
LifecycleActive (current ABB product)

Ordering

Minimum Order Quantity10 piece
Customs Tariff Number85369010

Dimensions

Product Net Width55 mm
Product Net Depth / Length21.5 mm
Product Net Height19.9 mm
Product Net Weight0.025 kg

Technical

StandardsEN 60947-1, EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1
Rated Frequency (f)Main Circuit 50 / 60 Hz
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Recommended Screw DriverMain Circuit Pozidriv 2, Main Circuit Flat Ø 6.5 mm
Tightening TorqueMain Circuit 4 N·m
Terminal TypeScrew Terminals
Suitable ForAF40, AF52, AF65, AFS40, AFS52, AFS65, AFC40, AFC52, AFC65
Product NameConnecting Strip

Environmental

Pollution Degree3

Material Compliance

RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC39121407
IDEA Granular Category Code (IGCC)4538 >> Terminal strips
