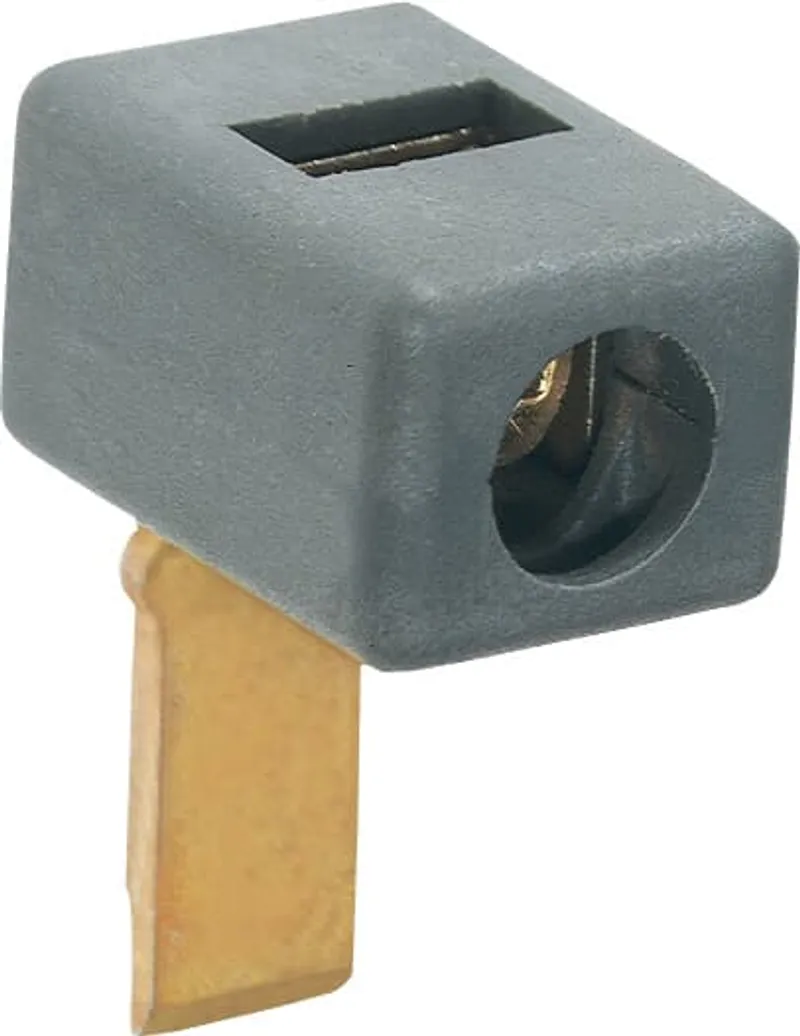

ABB 1SBN073552R1002 – LK75-F Terminals for Control Lead Connections
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.006 kg |
| UPC / EAN | 3471522199249 |
Shipping & availability
When can 1SBN073552R1002 be shipped?
1SBN073552R1002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN073552R1002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN073552R1002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN073552R1002, subject to availability and destination.
LK75-F is a terminal for control lead connections designed to connect the control conductors to the main poles of the A45 ... 75 contactors. The cable connection is done on top of the connection block. LK75-F is clipped into the slot placed above each power terminal connector.
Specifications
General
| Order code (ABB product ID) | 1SBN073552R1002 |
| Type | LK75-F |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 2 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 10.1 mm |
| Product Net Depth / Length | 13.5 mm |
| Product Net Height | 26.7 mm |
| Product Net Weight | 0.006 kg |
Technical
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Terminal Type | Screw Terminals |
| Suitable For | A45, A50, A63, A75, AE45, AE50, AE63, AE75, GA75, GAE75, UA50, UA63, UA75, UA95, UA50RA, UA63RA, UA75RA, AX50, AX65, AX80 |
| Product Name | Terminals for Control Lead Connections |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39121432 |
| IDEA Granular Category Code (IGCC) | 4603 >> Electrical terminals |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
