ABB 1SBN072304R1000 – LH38-4 Connecting Strip

MPN: 1SBN072304R1000 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Block Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.012 kg
UPC / EAN	3471523130883

Shipping & availability

When can 1SBN072304R1000 be shipped?

1SBN072304R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBN072304R1000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBN072304R1000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN072304R1000, subject to availability and destination.

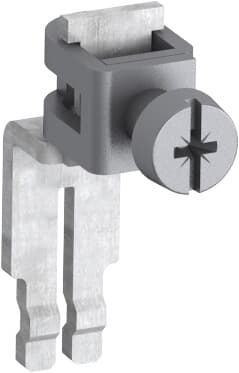

LH38-4 is a non-insulated connecting strip used on 3 and 4-pole AF(C)(S)09..16, 3-pole AF(C)(S)26..38 contactors, equipped with a main terminal screw used to connect 2 poles in parallel and thus increase the AC load passing through the flow path made up of the parallel-connected poles. The relevant cable cross-sectional area may limit the maximum permissible current: consult technical data information on catalogue.

Specifications

General

Order code (ABB product ID)	1SBN072304R1000
Type	LH38-4
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	2 piece
Customs Tariff Number	85369010

Dimensions

Product Net Width	10 mm
Product Net Depth / Length	26.3 mm
Product Net Height	34.6 mm
Product Net Weight	0.012 kg

Technical

Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
Rated Frequency (f)	Main Circuit 50 / 60 Hz
Connecting Capacity Main Circuit	Flexible with Ferrule 1x 2.5 ... 16 mm², Flexible with Insulated Ferrule 1x 2.5 ... 16 mm², Rigid 1x 2.5 ... 25 mm²
Wire Stripping Length	Main Circuit 10 mm
Recommended Screw Driver	Main Circuit Pozidriv 2, Main Circuit Flat Ø 5.5 mm
Tightening Torque	Main Circuit 2.5 N·m
Terminal Type	Screw Terminals
Suitable For	AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AFS09, AFS12, AFS16, AFS26, AFS30, AFS38, AFC09, AFC12, AFC16, AFC26, AFC30, AFC38
Product Name	Connecting Strip

Technical UL/CSA

Connecting Capacity Main Circuit UL/CSA	1x 12-4 AWG
Tightening Torque UL/CSA	Main Circuit 22 in·lb

Environmental

Pollution Degree

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

ETIM 7	EC002498 - Accessories for low-voltage switch technology
ETIM 8	EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9	EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC	39121407
IDEA Granular Category Code (IGCC)	4538 >> Terminal strips
E-Number (Sweden)	3210254

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)
Instructions and Manuals (1SBC101079M6801)
Instructions and Manuals (Part 2) (1SAC200017M0002)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (6)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
Declaration of Conformity - CE (1SBD250021U1000)
Declaration of Conformity - UKCA (1SBD250043U1000)
UL Certificate (UL-US-2150887-5)
UL Certificate (UL-CA-2142658-5)
