ABB 1SBN072305R1000 – LF38-4 Connecting Strip

MPN: 1SBN072305R1000 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Block Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.04 kg
UPC / EAN	3471523130906

Shipping & availability

When can 1SBN072305R1000 be shipped?

1SBN072305R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBN072305R1000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBN072305R1000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN072305R1000, subject to availability and destination.

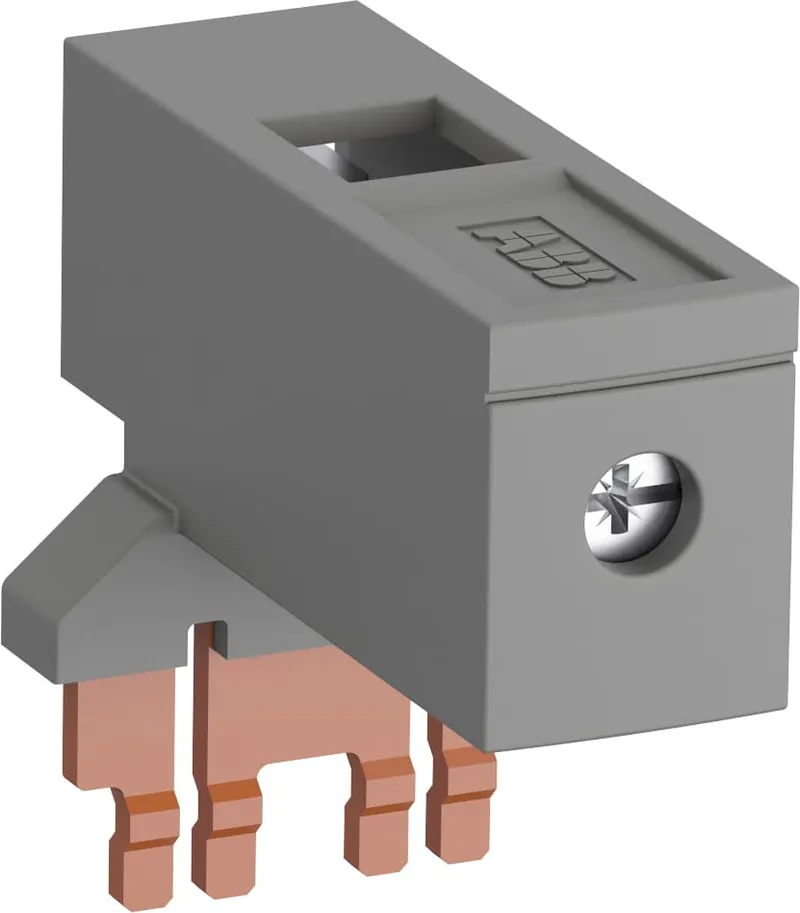

LF38-4 is an insulated connecting strip used on 3 or 4-pole AF(C)(S)09..16 contactors, equipped with a main terminal screw used to connect 3 poles in parallel and thus increase the AC load passing through the flow path made up of the parallel-connected poles. The relevant cable cross-sectional area may limit the maximum permissible current: consult technical data information on catalogue.

Specifications

General

Order code (ABB product ID)	1SBN072305R1000
Type	LF38-4
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	2 piece
Customs Tariff Number	85369010

Dimensions

Product Net Width	32.6 mm
Product Net Depth / Length	52 mm
Product Net Height	46.2 mm
Product Net Weight	0.04 kg

Technical

Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
Rated Frequency (f)	Main Circuit 50 / 60 Hz
Connecting Capacity Main Circuit	Flexible with Ferrule 1x 6 ... 35 mm², Flexible with Insulated Ferrule 1x 6 ... 35 mm², Rigid 1x 6 ... 50 mm²
Wire Stripping Length	Main Circuit 18 mm
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Recommended Screw Driver	Main Circuit Pozidriv 2, Main Circuit Flat Ø 6.5 mm
Tightening Torque	Main Circuit 4 N·m
Terminal Type	Screw Terminals
Suitable For	AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AFC26, AFC30, AFC38
Product Name	Connecting Strip

Technical UL/CSA

Connecting Capacity Main Circuit UL/CSA	1x 8-1 AWG
Tightening Torque UL/CSA	Main Circuit 35 in·lb

Environmental

Pollution Degree

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

ETIM 7	EC002498 - Accessories for low-voltage switch technology
ETIM 8	EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9	EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC	39121407
IDEA Granular Category Code (IGCC)	4538 >> Terminal strips
E-Number (Sweden)	3210253
