ABB 1SBN072308R1000 – LD38-4 Additional Terminal Block
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.07 kg |
| UPC / EAN | 3471523130838 |
Shipping & availability
When can 1SBN072308R1000 be shipped?
1SBN072308R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN072308R1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN072308R1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN072308R1000, subject to availability and destination.

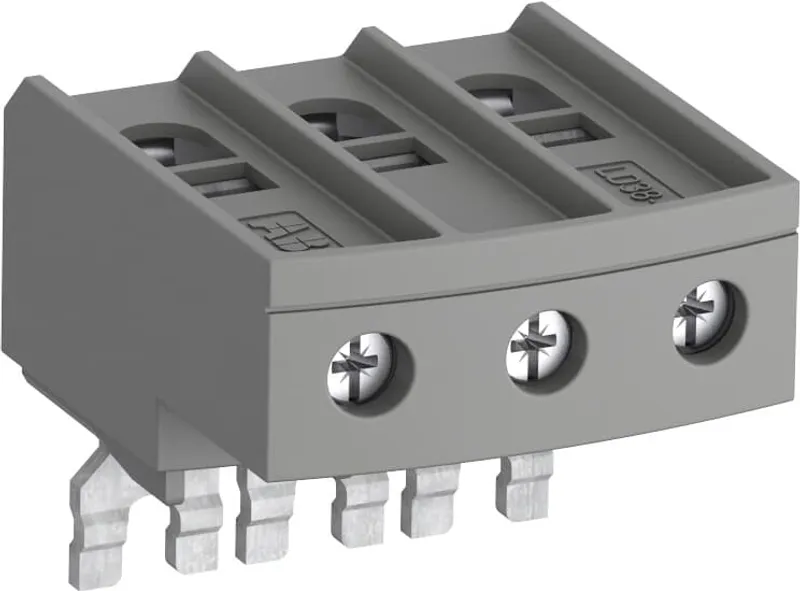

LD38-4 is an additional terminal block designed to increase the connecting capacity of 3-pole AF(C)(S)26 ... 38 contactors on which it is fitted and for preparation of the wiring before final connection to the contactor. LD38-4 blocks is 3-pole terminal block with tunnel terminals.
Specifications
General
| Order code (ABB product ID) | 1SBN072308R1000 |
| Type | LD38-4 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 2 piece |
| Customs Tariff Number | 85369010 |
Dimensions
| Product Net Width | 44.8 mm |
| Product Net Depth / Length | 50 mm |
| Product Net Height | 40.5 mm |
| Product Net Weight | 0.07 kg |
Technical
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-5-1 690 V, acc. to UL/CSA 600 V |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 2.5 ... 16 mm², Flexible with Ferrule 1/1x 2.5 ...10/...16 mm², Flexible with Insulated Ferrule 1x 2.5 ... 16 mm², Flexible with Insulated Ferrule 1/1x 2.5 ...10/...16 mm², Rigid Solid 1/2x 2.5 ... 4 mm², Rigid Stranded 1/1x 6 ...16/ ... 25 mm² |
| Wire Stripping Length | Main Circuit 14 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Connecting Terminals (delivered in open position) Main Poles | M5 with 2 x (7 width x 5.8/9.2 depth) double connector |
| Recommended Screw Driver | Main Circuit Slot, Main Circuit 6.5, Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 2.5 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AFC26, AFC30, AFC38 |
| Product Name | Additional Terminal Block |
Technical UL/CSA
| Connecting Capacity Main Circuit UL/CSA | 1x 8-4 AWG, 2x 8-6 AWG |
| Tightening Torque UL/CSA | Main Circuit 22 in·lb |
Environmental
| Pollution Degree | 3 |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39121410 |
| IDEA Granular Category Code (IGCC) | 4547 >> Terminal blocks |
| E-Number (Sweden) | 3210256 |
