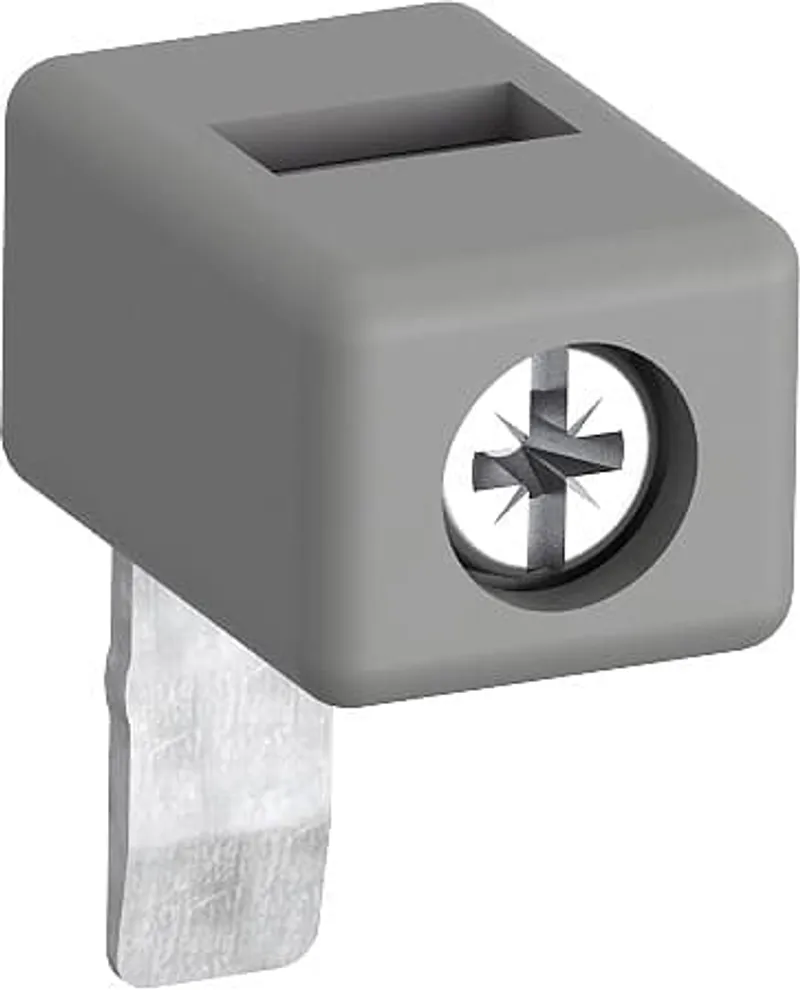

ABB 1SBN073452R2000 – LK96-4F Terminals for Control Lead Connections
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.005 kg |
| UPC / EAN | 3471523131019 |
Shipping & availability
When can 1SBN073452R2000 be shipped?
1SBN073452R2000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN073452R2000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN073452R2000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN073452R2000, subject to availability and destination.
LK96-4F is a terminal for control lead connections designed to connect the control conductors to the main poles of the AF(C)(S)40...96. The cable connection is done on top of the connection block. LK96-4F is clipped into the slot placed above each power terminal connector. The LK96-4F are fitted with a pin designed to hold them in place until the connector has been fully clamped with its power cable.
LK96-4F are not compatible with LT Terminal shrouds.
Specifications
General
| Order code (ABB product ID) | 1SBN073452R2000 |
| Type | LK96-4F |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 2 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 10.1 mm |
| Product Net Depth / Length | 15 mm |
| Product Net Height | 21 mm |
| Product Net Weight | 0.005 kg |
Technical
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22 |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Rigid 1/2x 1 ... 2.5 mm² |
| Wire Stripping Length | 10 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| Tightening Torque | Control Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | AF40, AF52, AF65, AF80, AF96, AFC40, AFC52, AFC65, AFC80, AFC96 |
| Product Name | Terminals for Control Lead Connections |
Technical UL/CSA
| Tightening Torque UL/CSA | Control Circuit 11 in·lb |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39121432 |
| IDEA Granular Category Code (IGCC) | 4603 >> Electrical terminals |
| E-Number (Sweden) | 3210239 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
Certificates (8)
More ABB parts

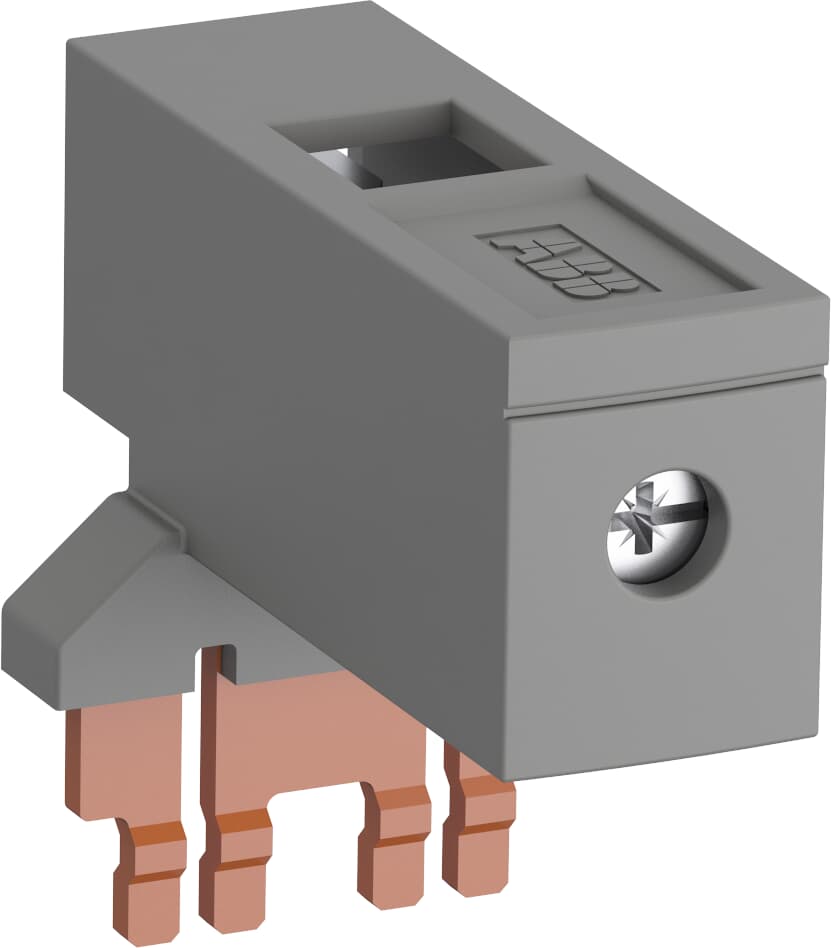

Available on requestLF38-4 Connecting Strip

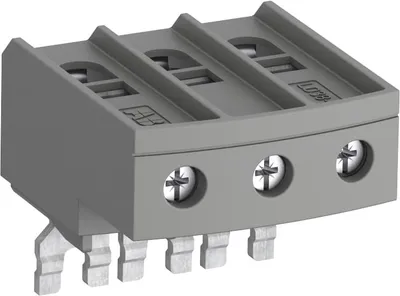

Available on requestLD38-4 Additional Terminal Block

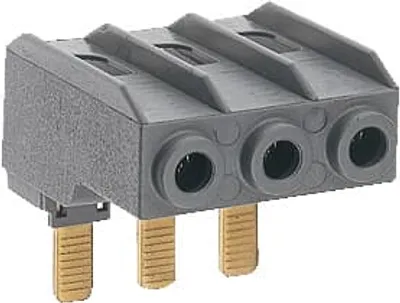

Available on requestLD40 Additional Terminal Block

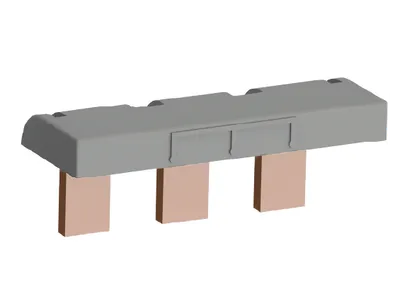

Available on requestLY65-4 Connecting Strip

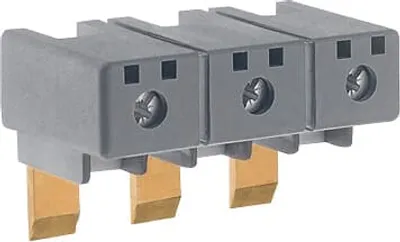

Available on requestLD75 Additional Terminal Block

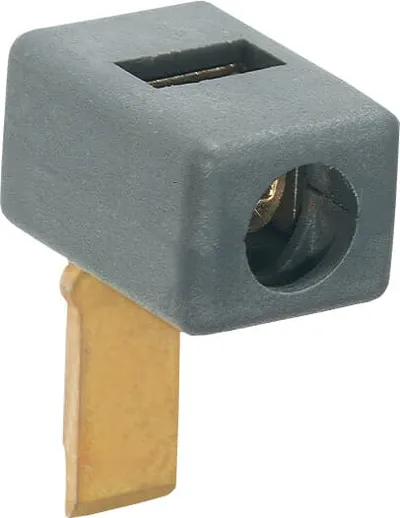

Available on requestLK75-F Terminals for Control Lead Connections

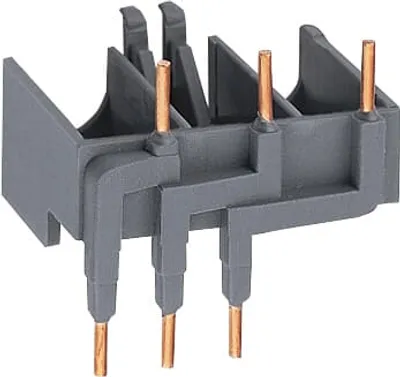

Available on requestBEA7/132 Connecting Link

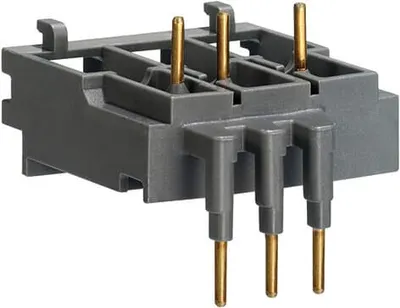

Available on requestBEA16-3 Connecting Link with Manual Motor Starter
