ABB 1SBN071305R1000

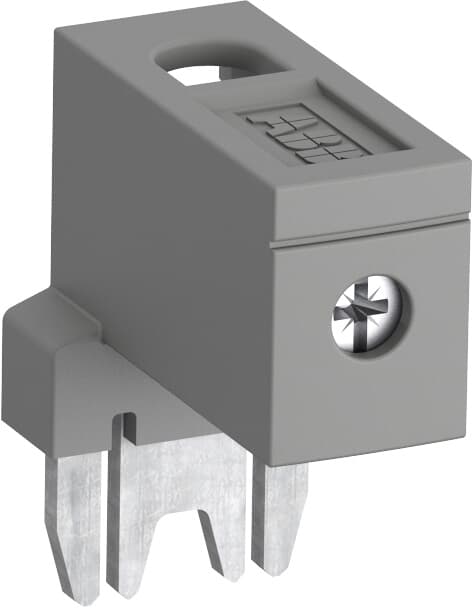

LF16-4 Connecting Strip

MPN
1SBN071305R1000
EAN
3471523130890
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB 1SBN071305R1000?

LF16-4 is an insulated connecting strip used on 3 or 4-pole AF(C)(S)09..16 contactors, equipped with a main terminal screw used to connect 3 poles in parallel and thus increase the AC load passing through the flow path made up of the parallel-connected poles. The relevant cable cross-sectional area may limit the maximum permissible current: consult technical data information on catalogue.

Specifications

General

Order code (ABB product ID)1SBN071305R1000
TypeLF16-4
LifecycleActive (current ABB product)

Ordering

Minimum Order Quantity2 piece
Customs Tariff Number85369010

Dimensions

Product Net Width21.4 mm
Product Net Depth / Length33 mm
Product Net Height39.3 mm
Product Net Weight0.02 kg

Technical

StandardsIEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
Rated Frequency (f)Main Circuit 50 / 60 Hz
Connecting Capacity Main CircuitFlexible with Ferrule 1x 2.5 ... 16 mm², Flexible with Insulated Ferrule 1x 2.5 ... 16 mm², Rigid 1x 2.5 ... 25 mm²
Wire Stripping LengthMain Circuit 14 mm
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Recommended Screw DriverMain Circuit Pozidriv 2, Main Circuit Flat Ø 5.5 mm
Tightening TorqueMain Circuit 2.5 N·m
Terminal TypeScrew Terminals
Suitable ForAF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AFC09, AFC12, AFC16
Product NameConnecting Strip

Technical UL/CSA

Connecting Capacity Main Circuit UL/CSA1x 12-4 AWG
Tightening Torque UL/CSAMain Circuit 22 in·lb

Environmental

Pollution Degree3

Material Compliance

RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC39121407
IDEA Granular Category Code (IGCC)4538 >> Terminal strips
E-Number (Sweden)3210252
