ABB 1SBN071303T1000 – LY16-4 Connecting Strip
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.006 kg |
| UPC / EAN | 3471523130845 |
Shipping & availability
When can 1SBN071303T1000 be shipped?
1SBN071303T1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN071303T1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN071303T1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN071303T1000, subject to availability and destination.

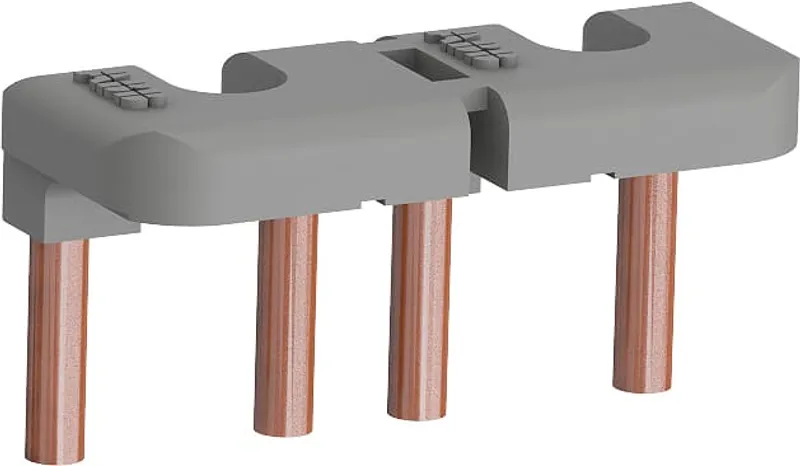

LY16-4 is an insulated connecting strip used on 3-pole AF(C)(S)09..16 contactors:
• To obtain a star point (3 parallel-connected poles)
• To connect 2 poles (LY16-4 includes secable strips) or 3 poles in parallel and thus increase the AC load passing through the flow path made up of the parallel-connected poles. The relevant cable cross-sectional area may limit the maximum permissible current: consult technical data information on catalogue
• To connect 2 or 3 poles in series and thus increase the DC voltage controlled by the poles: LY16-4 includes secable strips.
Specifications
General
| Order code (ABB product ID) | 1SBN071303T1000 |
| Type | LY16-4 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369010 |
Dimensions
| Product Net Width | 32.2 mm |
| Product Net Depth / Length | 14 mm |
| Product Net Height | 17.4 mm |
| Product Net Weight | 0.006 kg |
Technical
| Standards | EN 60947-1, EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Recommended Screw Driver | Main Circuit Pozidriv 2, Main Circuit Flat Ø 5.5 mm |
| Tightening Torque | Main Circuit 1.5 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AFC09, AFC12, AFC16 |
| Product Name | Connecting Strip |
Environmental
| Pollution Degree | 3 |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39121407 |
| IDEA Granular Category Code (IGCC) | 4538 >> Terminal strips |
| E-Number (Sweden) | 3210082 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SBC101079M6801) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts
Available on requestRA5-1 (EMB x 10) Interface Relay
Available on requestLDC4 Additional Coil Terminal Block
Available on requestLDC4RT Coil Terminal Block
Available on requestLDC4K Additional Coil Terminal Block
Available on requestLF16-4 Connecting Strip

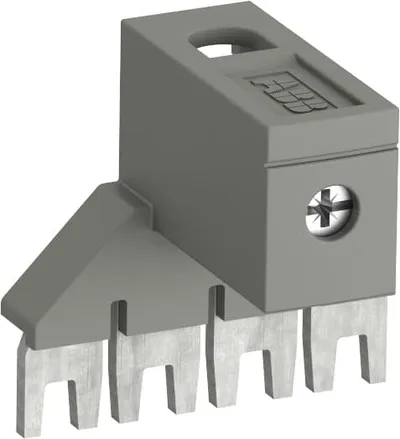

Available on requestLG16-4 Connecting Strip
