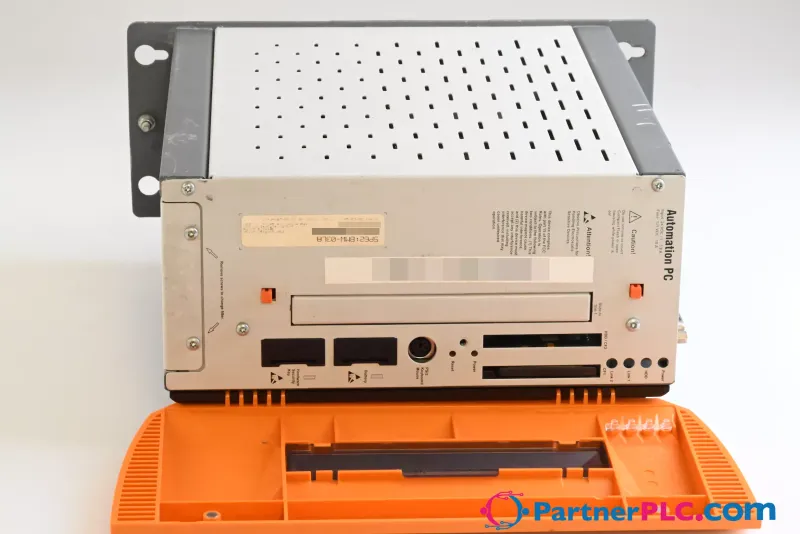

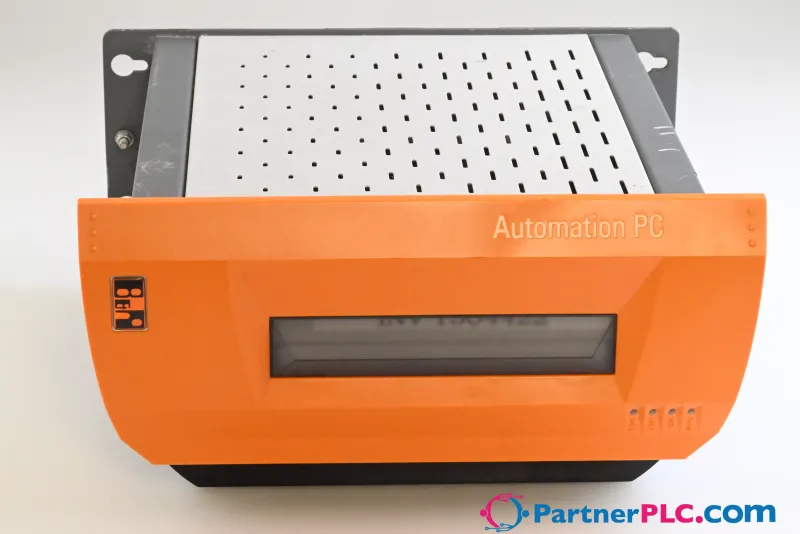

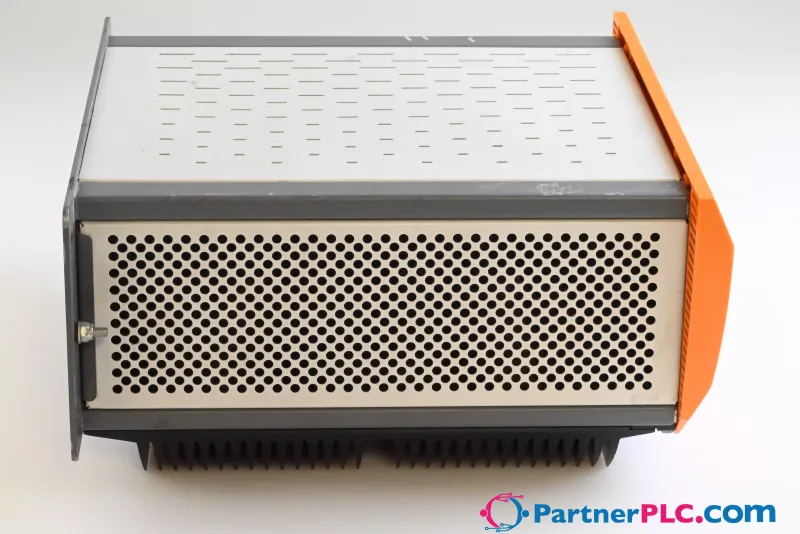

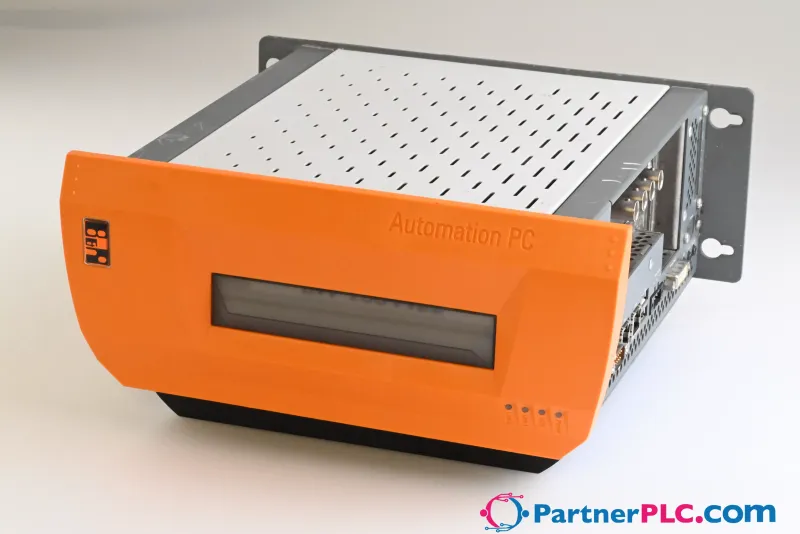

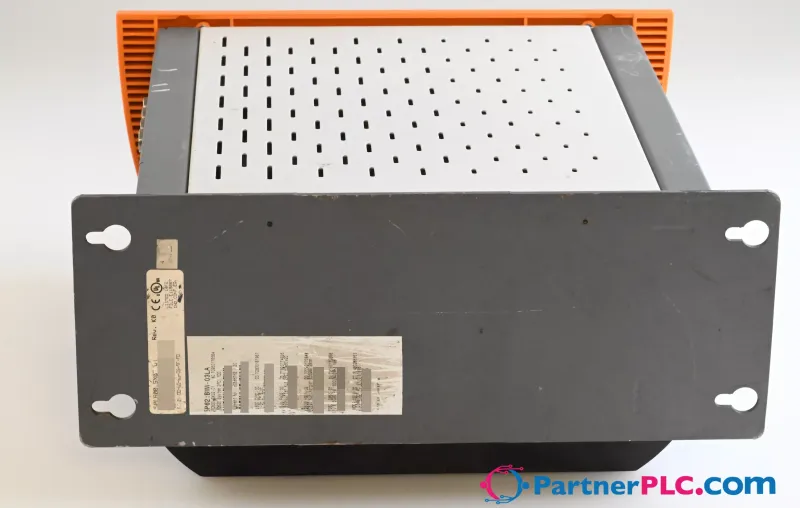

B&R 5PC600.SX02-01 – APC620 system unit 2 PCI slots, 1 drive slot

Name: B&R 5PC600.SX02-01 – APC620 system unit 2 PCI slots, 1 drive slot
Brand: B&R
SKU: 5PC600.SX02-01
Price: 901.00 EUR
Availability: InStock

MPN: 5PC600.SX02-01 · Brand: B&R

€901.00 excl. VAT & shipping

Request a Quote

3-month warranty

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	In stock — 1 available
Category	Industrial PCs
Warranty	3-month
Weight	4.2 kg
Country of origin	AT

Shipping & availability

When can 5PC600.SX02-01 be shipped?

5PC600.SX02-01 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 5PC600.SX02-01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 5PC600.SX02-01.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PC600.SX02-01, subject to availability and destination.

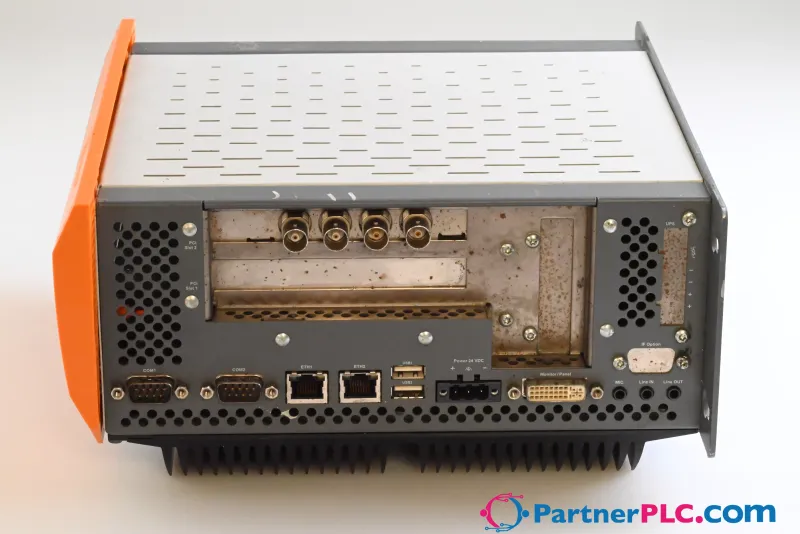

APC620 system unit 2 PCI slots, 1 drive slot, connections for 2x RS232, 2x USB 2.0, Smart Display Link/DVI-I, 2x ETH 10/100, AC97 sound, PS/2 keyboard/mouse, 24 VDC. (order screw clamp terminal block 0TB103.9 or cage clamp terminal block 0TB103.91 separately).

Accessories

Required accessories (order separately)

5PC600.X945-00	CPU boards — Intel® Atom™ N270 1.6 GHz; Intel® 945GME chipset; 2x DDR2 memory slot; Intel® GMA 950; AMI BIOS CPU board Intel Atom, 1600 MHz, 533 MHz FSB…
5AC600.HS01-03	Heat sinks — APC620 heat sink for CPU boards with Atom 1600 MHz.
5MMDDR.2048-01	Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300
5MMDDR.1024-01	Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300
5MMDDR.0512-01	Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300

Optional accessories (13)

5ACPCI.ETH3-01	Accessories — PCI Ethernet card; 3x Ethernet interfaces (10/100 Mbit/s) These universal (3.3 V and 5 V) half-size PCI Ethernet card have three 10/100 Mbi…
5ACPCI.ETH1-01	Accessories — PCI Ethernet card; 1x Ethernet interface (10/100 Mbit/s) These universal (3.3 V and 5 V) half-size PCI Ethernet card have a 10/100 Mbit/s n…
5AC600.SRAM-00	Accessories — SRAM module for APC620 and PPC700, 512 kB
5ACPCI.RAIC-05	Drives — SATA RAID controller; RAID level 0 (striped) and 1 (mirrored); 2 SATA hard disk drives (suitable for 24-hour operation); Only requires 1 PC…
5AC600.HDDS-02	Drives — This hard disk is specified for 24-hour operation, features an extended temperature range and can be used in APC620 and PPC700 system units…
5AC600.HDDI-06	Drives — 80 GB hard disk; Add-on; Specified for 24-hour operation; S.M.A.R.T. Support This 80 GB hard disk is specified for 24-hour operation and al…
5AC600.HDDI-05	Drives — This 40 GB hard disk is specified for 24-hour operation (24x7) and also provides an extended temperature specification (ET).
5AC600.CFSS-00	Drives — Dual CompactFlash slot (slide-in) (1x IDE, 1x USB 2.0) for operation in a drive slot in an APC620 or Panel PC.
5AC600.CFSI-00	Drives — CompactFlash slot; Add-on This add-on drive provides a slot for a CompactFlash card.
5PC600.FA02-00	Fan kits — APC620 fan kit, for system units with 2 PCI slots.
5AC600.CANI-00	Serial adapters — The add-on CAN interface is equipped with an Intel 82527 CAN controller that conforms to the CAN 2.0 specification, Part A/B. The CAN contr…
5AC600.485I-00	Serial adapters — This serial interface is a combined RS232/RS422/RS485 interface. The operating mode (RS232/RS422/RS485) is selected automatically depending…
5AC600.UPSI-00	Uninterruptible power supplies — UPS module for APC620, APC810, PPC800, for system units 5PC600.SX01-00 (starting with Rev. H0), 5PC600.SX02-00 (starting with Rev. G0), 5PC…

Specifications

General information

Battery – Type	Renata 950 mAh
Battery – Service life	4 years " data-placement="top" data-html="true" data-container="body" data-content="At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%. <br>If an SRAM module (order number 5AC600.SRAM-00) is installed, the retention time is 2 1/2 years.">
Battery – Removable	Yes, accessible behind the orange cover
Battery – Variant	Lithium ion
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – KC	Yes
Dongle port	Yes
LEDs	Power, HDD, Link 1, Link 2
B&R ID code	0x1BB7
Cooling	Passive via heat sink and optionally supported with an active fan kit
Power button	Yes
Reset button	Yes
Buzzer	Yes
Keyboard/Mouse	PS/2 (combined)

Controller

Real-time clock – Accuracy	Component-dependent
Real-time clock – Battery-backed	Yes
Power failure logic – Controller	MTCX " data-placement="top" data-html="true" data-container="body" data-content="Maintenance Controller Extended">
Power failure logic – Buffer time	10 ms " data-placement="top" data-html="true" data-container="body" data-content="Revision-dependent on the system unit.">
Graphics – Controller	Depends on the CPU board being used
SRAM – Note	optional " data-placement="top" data-html="true" data-container="body" data-content="Revision K0 and later">
Bootloader	BIOS

Interfaces

COM1 – Type	RS232, modem supported, not galvanically isolated
COM1 – Variant	9-pin male DSUB connector
COM1 – UART	16550-compatible, 16-byte FIFO buffer
COM1 – Max. baud rate	115 kbit/s
COM2 – Type	RS232, modem supported, not galvanically isolated
COM2 – Variant	9-pin male DSUB connector
COM2 – UART	16550-compatible, 16-byte FIFO buffer
COM2 – Max. baud rate	115 kbit/s
CompactFlash slot 1 – Quantity	1
CompactFlash slot 1 – Type	Type I
USB – Quantity	2
USB – Type	USB 2.0
USB – Variant	Type A
USB – Transfer rate	Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s)
USB – Current-carrying capacity	Max. 500 mA per connection
Ethernet – Quantity	2
Ethernet – Variant	Shielded RJ45 port
Ethernet – Transfer rate	10/100 Mbit/s
Ethernet – Max. baud rate	100 Mbit/s
Panel/Monitor interface – Variant	Female DVI-I connector
Panel/Monitor interface – Type	SDL/DVI/Monitor
CAN – Note	optional
Audio – Type	AC97 sound
Audio – Inputs	Microphone, Line In
Audio – Outputs	Line Out
Add-on interface slot – Quantity	1

Slots

PCI slots – Quantity	2
PCI slots – Type	32-bit
PCI slots – Variant	PCI half-size
PCI slots – Standard	2.2
PCI slots – Bus speed	33 MHz
Slide-in drives	1
Slide-in compact drives	No
Add-on drives	optional
Automation Panel Link slot	No
Add-on UPS slot	Yes " data-placement="top" data-html="true" data-container="body" data-content="Revision H0 and later">
Slot for fan kit	Yes

Electrical properties

Nominal voltage	24 VDC ±25%
Nominal current	3.8 A
Inrush current	Typ. 7 A, max. 40 A for < 300 µs

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	Component-dependent
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	Component-dependent
Relative humidity – Storage	Component-dependent
Relative humidity – Transport	Component-dependent
Vibration " data-placement="top" data-html="true" data-container="body" data-content="Maximum values unless specified otherwise by another individual component."> – Operation (continuous)	2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g
Vibration " data-placement="top" data-html="true" data-container="body" data-content="Maximum values unless specified otherwise by another individual component."> – Operation (occasional)	2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
Vibration " data-placement="top" data-html="true" data-container="body" data-content="Maximum values unless specified otherwise by another individual component."> – Storage	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Vibration " data-placement="top" data-html="true" data-container="body" data-content="Maximum values unless specified otherwise by another individual component."> – Transport	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Shock " data-placement="top" data-html="true" data-container="body" data-content="Maximum values unless specified otherwise by another individual component."> – Operation	15 g, 11 ms
Shock " data-placement="top" data-html="true" data-container="body" data-content="Maximum values unless specified otherwise by another individual component."> – Storage	30 g, 15 ms
Shock " data-placement="top" data-html="true" data-container="body" data-content="Maximum values unless specified otherwise by another individual component."> – Transport	30 g, 15 ms
Elevation – Operation	Max. 3000 m (component-dependent) " data-placement="top" data-html="true" data-container="body" data-content="The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.">

Mechanical properties

Housing " data-placement="top" data-html="true" data-container="body" data-content="Visual deviations in color and surface quality are possible due to process or batch conditions."> – Material	Galvanized plate
Housing " data-placement="top" data-html="true" data-container="body" data-content="Visual deviations in color and surface quality are possible due to process or batch conditions."> – Front cover	Dyed orange plastic (similar to Pantone 144CV)
Housing " data-placement="top" data-html="true" data-container="body" data-content="Visual deviations in color and surface quality are possible due to process or batch conditions."> – Coating	Light gray (similar to Pantone 427CV), dark gray (similar to Pantone 432CV)
Dimensions – Width	114.9 mm with heat sink 5AC600.HS01-00 and 5AC600.HS01-01 ; 130.1 mm with heat sink 5AC600.HS01-02
Dimensions – Height	270 mm
Dimensions – Depth	253 mm
Weight	Approx. 4500 g (component-dependent)
