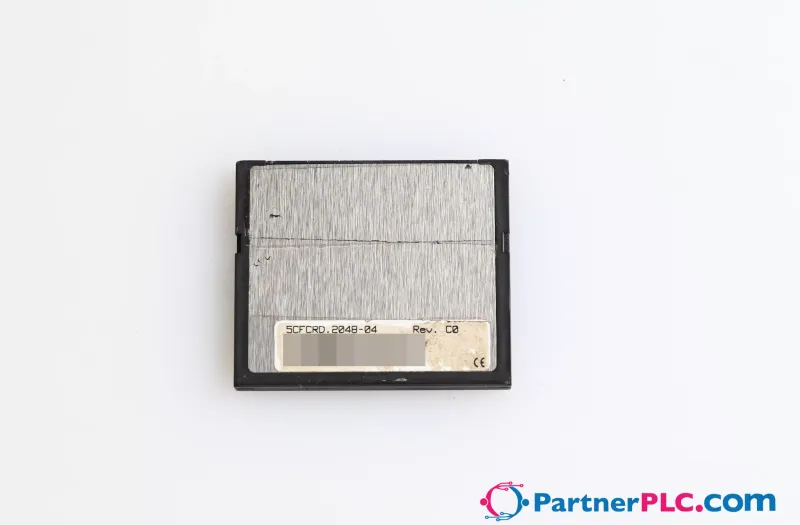

B&R 5CFCRD.2048-04

Memory Modules & Card

MPN: 5CFCRD.2048-04
Category: Memory Modules & Cards

€168.54excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 5CFCRD.2048-04?

CompactFlash 2 GB B&R (SLC)

Specifications

General information

Continuous reading – Typical	35 MB/s; (240X) (note: Speed specifications with 1X = 150 kB/s. All specifications refer to Samsung flash chips, CompactFlash card in UDMA mode 4, cycle time 30 ns in True IDE mode with sequential write/read test.)
Continuous reading – Maximum	37 MB/s; (260X) (note: Speed specifications with 1X = 150 kB/s. All specifications refer to Samsung flash chips, CompactFlash card in UDMA mode 4, cycle time 30 ns in True IDE mode with sequential write/read test.)
Continuous writing – Typical	17 MB/s; (110X)
Continuous writing – Maximum	20 MB/s; (133X)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Capacity	2 GB
Data retention	10 years (note: Per JEDEC (JESD47), EOL conditions are not permitted to be reached before 18 months. A higher average daily write workload reduces the expected service life and data retention of the data storage medium.)
Data reliability	<1 unrecoverable error per 10 14 bits read
Lifetime monitoring	Yes
MTBF	>3,000,000 hours (at 25°C)
Servicing	None
Supported operating modes	PIO mode 0-6, Multiword DMA mode 0-4, Ultra DMA Mode 0-4

Endurance

Guaranteed data volume – Guaranteed	200 TB (note: Endurance of B&R CFs (with linear written block size ≥ 128 kB).)
Guaranteed data volume – Results for 5 years	109.59 GB/day (note: Endurance of B&R CFs (with linear written block size ≥ 128 kB).)
Erase/Write cycles – Typical	2,000,000 (note: Depends on the average file size.)
Erase/Write cycles – Guaranteed	100,000
SLC flash memory	Yes
Wear leveling	Static
Error-correcting code (ECC)	Yes
S.M.A.R.T. support	No

Support

Operating systems – Windows 7 32-bit	No
Operating systems – Windows 7 64-bit	No
Operating systems – Windows Embedded Standard 7 32-bit	No
Operating systems – Windows Embedded Standard 7 64-bit	No
Operating systems – Windows XP Professional	No
Operating systems – Windows XP Embedded	Yes
Operating systems – Windows Embedded Standard 2009	Yes
Operating systems – Windows CE 6.0	Yes
Operating systems – Windows CE 5.0	No
Software – PVI Transfer	≥V3.2.3.8 (part of the PVI Development installer ≥ V2.06.00.3011)
Software – B&R Embedded OS Installer	≥V3.10
Hardware	PP300/400, PP500, PPC300, PPC700, PPC725, PPC800, APC620, APC810, APC820

Ambient conditions

Temperature – Operation	0 to 70°C
Temperature – Storage	-65 to 150°C
Temperature – Transport	-65 to 150°C
Relative humidity – Operation	Max. 85% at 85°C
Relative humidity – Storage	Max. 85% at 85°C
Relative humidity – Transport	Max. 85% at 85°C
Vibration – Operation	20 g peak, 20 to 2000 Hz, 4 in each direction (JEDEC JESD22, method B103); 5.35 g RMS, 15 min. per level (IEC 68-2-6)
Vibration – Storage	20 g peak, 20 to 2000 Hz, 4 in each direction (JEDEC JESD22, method B103); 5.35 g RMS, 15 min. per level (IEC 68-2-6)
Vibration – Transport	20 g peak, 20 to 2000 Hz, 4 in each direction (JEDEC JESD22, method B103); 5.35 g RMS, 15 min. per level (IEC 68-2-6)
Shock – Operation	1500 g peak, 0.5 ms 5 times (JEDEC JESD22, method B110) ; 30 g, 11 ms 1 time (IEC 68-2-27)
Shock – Storage	1500 g peak, 0.5 ms 5 times (JEDEC JESD22, method B110) ; 30 g, 11 ms 1 time (IEC 68-2-27)
Shock – Transport	1500 g peak, 0.5 ms 5 times (JEDEC JESD22, method B110) ; 30 g, 11 ms 1 time (IEC 68-2-27)
Elevation – Operation	Max. 4,572 m

Mechanical properties

Dimensions – Width	42.8 ±0.10 mm
Dimensions – Length	36.4 ±0.15 mm
Dimensions – Height	3.3 ±0.10 mm
Weight	10 g
