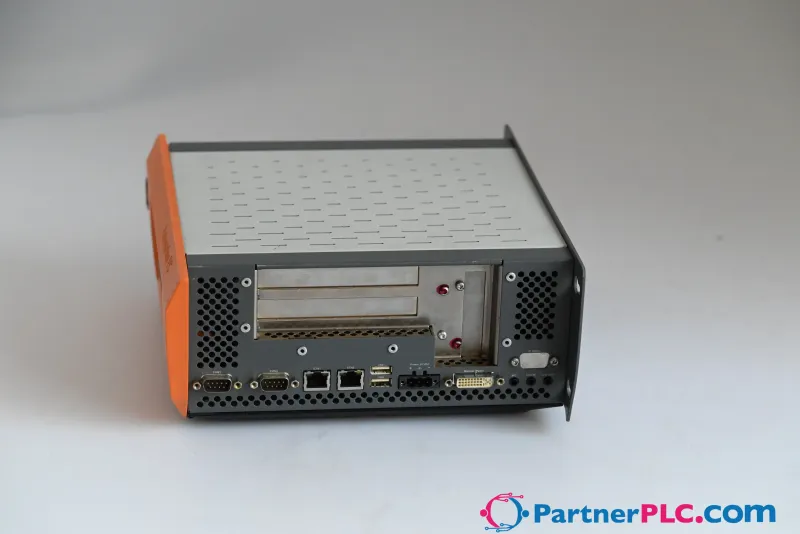

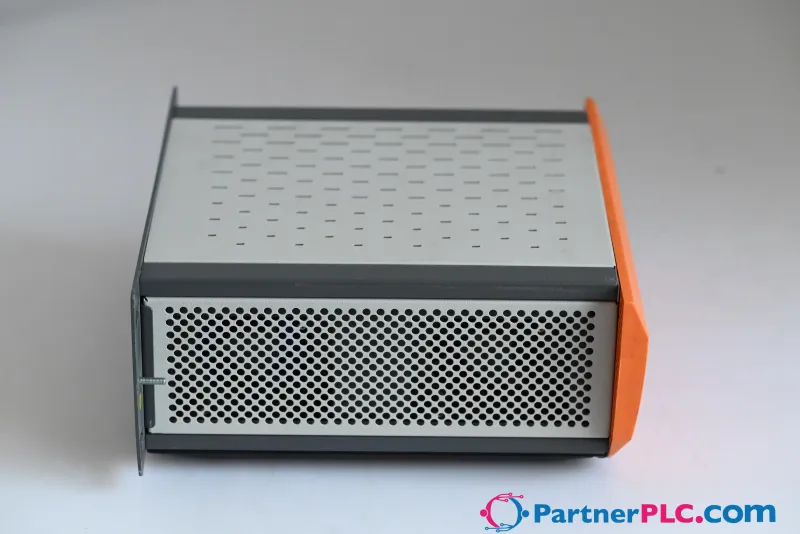

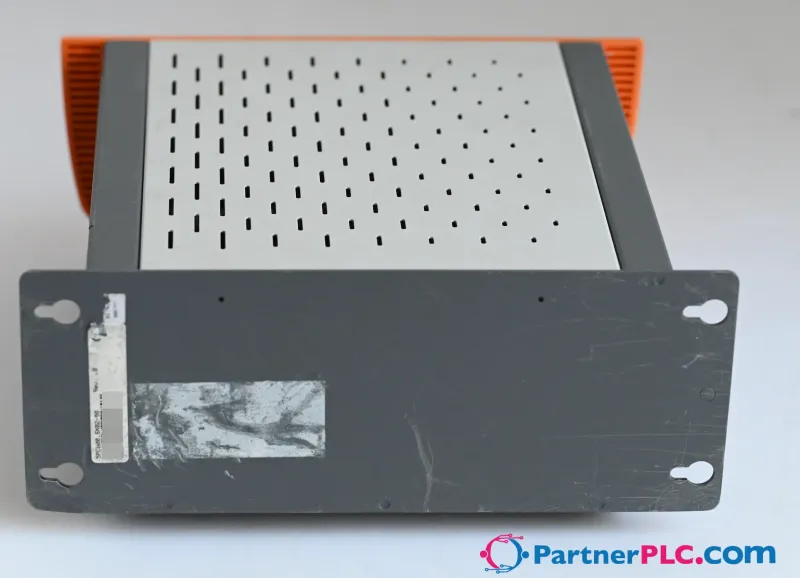

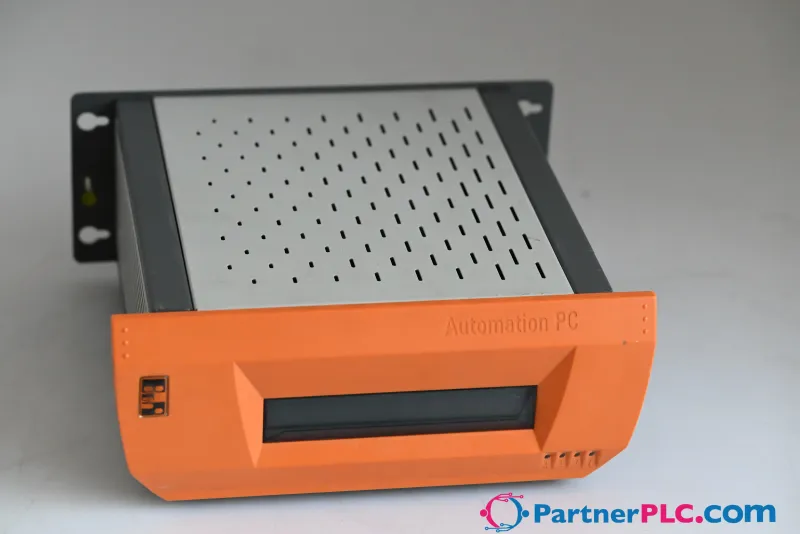

B&R 5PC600.SX02-00
Industrial PC
- MPN
- 5PC600.SX02-00
- Category
- Industrial PCs
€704.90excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 3-month warranty
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 5PC600.SX02-00?
Industrial PC
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 4 years (note: At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%. If an SRAM module (order number 5AC600.SRAM-00) is installed, the retention time is 2 1/2 years.) |

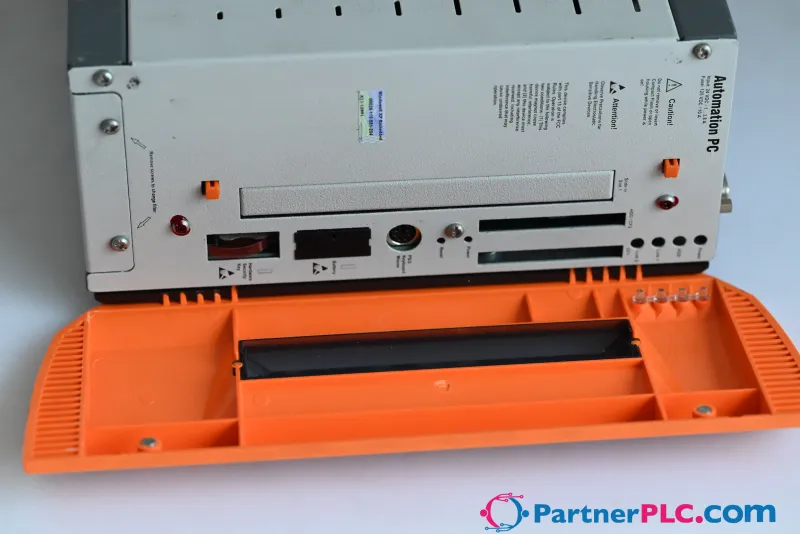

| Battery – Removable | Yes, accessible behind the orange cover |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – KC | Yes |
| Dongle port | Yes |
| LEDs | Power, HDD, Link 1, Link 2 |
| B&R ID code | 0x1BB6 |
| Cooling | Passive via heat sink and optionally supported with an active fan kit |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
| Keyboard/Mouse | PS/2 (combined) |
Controller
| Real-time clock – Accuracy | Component-dependent |
| Real-time clock – Battery-backed | Yes |
| Power failure logic – Controller | MTCX (note: Maintenance Controller Extended) |
| Power failure logic – Buffer time | 10 ms (note: Revision-dependent on the system unit.) |
| Graphics – Controller | Depends on the CPU board being used |
| SRAM – Note | optional (note: Revision H0 and later) |
| Bootloader | BIOS |
Interfaces
| COM1 – Type | RS232, modem supported, not galvanically isolated |
| COM1 – Variant | 9-pin male DSUB connector |
| COM1 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM1 – Max. baud rate | 115 kbit/s |
| COM2 – Type | RS232, modem supported, not galvanically isolated |
| COM2 – Variant | 9-pin male DSUB connector |
| COM2 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM2 – Max. baud rate | 115 kbit/s |
| CompactFlash slot 1 – Quantity | 1 |
| CompactFlash slot 1 – Type | Type I |
| USB – Quantity | 2 |
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | Max. 500 mA per connection |
| Ethernet – Quantity | 2 |
| Ethernet – Variant | Shielded RJ45 port |
| Ethernet – Transfer rate | 10/100 Mbit/s |
| Ethernet – Max. baud rate | 100 Mbit/s |
| Panel/Monitor interface – Variant | Female DVI-I connector |
| Panel/Monitor interface – Type | SDL/DVI/Monitor |
| CAN – Note | optional |
| Audio – Type | AC97 sound |
| Audio – Inputs | Microphone, Line In |
| Audio – Outputs | Line Out |
| Add-on interface slot – Quantity | 1 |
Slots
| PCI slots – Quantity | 2 |
| PCI slots – Type | 32-bit |
| PCI slots – Variant | PCI half-size |
| PCI slots – Standard | 2.2 |
| PCI slots – Bus speed | 33 MHz |
| Slide-in drives | 1 |
| Slide-in compact drives | No |
| Add-on drives | optional |
| Automation Panel Link slot | Yes |
| Add-on UPS slot | Yes (note: Revision H0 and later) |
| Slot for fan kit | Yes |
Electrical properties
| Nominal voltage | 24 VDC ±25% |
| Nominal current | 3.8 A |
| Inrush current | Typ. 7 A, max. 40 A for < 300 µs |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | Component-dependent |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | Component-dependent |
| Relative humidity – Storage | Component-dependent |
| Relative humidity – Transport | Component-dependent |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g (note: Maximum values unless specified otherwise by another individual component.) |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g (note: Maximum values unless specified otherwise by another individual component.) |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g (note: Maximum values unless specified otherwise by another individual component.) |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g (note: Maximum values unless specified otherwise by another individual component.) |
| Shock – Operation | 15 g, 11 ms (note: Maximum values unless specified otherwise by another individual component.) |
| Shock – Storage | 30 g, 15 ms (note: Maximum values unless specified otherwise by another individual component.) |
| Shock – Transport | 30 g, 15 ms (note: Maximum values unless specified otherwise by another individual component.) |
| Elevation – Operation | Max. 3000 m (component-dependent) (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
Mechanical properties
| Housing – Material | Galvanized plate (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Housing – Front cover | Dyed orange plastic (similar to Pantone 144CV) (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Housing – Coating | Light gray (similar to Pantone 427CV), dark gray (similar to Pantone 432CV) (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 114.9 mm with heat sink 5AC600.HS01-00 and 5AC600.HS01-01 ; 130.1 mm with heat sink 5AC600.HS01-02 |
| Dimensions – Height | 270 mm |
| Dimensions – Depth | 253 mm |
| Weight | Approx. 4500 g (component-dependent) |
No matching specifications
Accessories
Required accessories (order separately)
| 5PC600.X945-00 | CPU boards — Intel® Atom™ N270 1.6 GHz; Intel® 945GME chipset; 2x DDR2 memory slot; Intel® GMA 950; AMI BIOS CPU board Intel Atom, 1600 MHz, 533 MHz FSB… |
| 5AC600.HS01-03 | Heat sinks — APC620 heat sink for CPU boards with Atom 1600 MHz. |
| 5MMDDR.2048-01 | Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300 |
| 5MMDDR.1024-01 | Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300 |
| 5MMDDR.0512-01 | Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300 |
Optional accessories (14)
| 5ACPCI.ETH3-01 | Accessories — PCI Ethernet card; 3x Ethernet interfaces (10/100 Mbit/s) These universal (3.3 V and 5 V) half-size PCI Ethernet card have three 10/100 Mbi… |
| 5ACPCI.ETH1-01 | Accessories — PCI Ethernet card; 1x Ethernet interface (10/100 Mbit/s) These universal (3.3 V and 5 V) half-size PCI Ethernet card have a 10/100 Mbit/s n… |
| 5AC600.SRAM-00 | Accessories — SRAM module for APC620 and PPC700, 512 kB |
| 5AC600.SDL0-00 | Automation Panel Link transmitters — Smart Display Link / DVI-D transmitter |
| 5ACPCI.RAIC-05 | Drives — SATA RAID controller; RAID level 0 (striped) and 1 (mirrored); 2 SATA hard disk drives (suitable for 24-hour operation); Only requires 1 PC… |
| 5AC600.HDDS-02 | Drives — This hard disk is specified for 24-hour operation, features an extended temperature range and can be used in APC620 and PPC700 system units… |
| 5AC600.HDDI-06 | Drives — 80 GB hard disk; Add-on; Specified for 24-hour operation; S.M.A.R.T. Support This 80 GB hard disk is specified for 24-hour operation and al… |
| 5AC600.HDDI-05 | Drives — This 40 GB hard disk is specified for 24-hour operation (24x7) and also provides an extended temperature specification (ET). |
| 5AC600.CFSS-00 | Drives — Dual CompactFlash slot (slide-in) (1x IDE, 1x USB 2.0) for operation in a drive slot in an APC620 or Panel PC. |
| 5AC600.CFSI-00 | Drives — CompactFlash slot; Add-on This add-on drive provides a slot for a CompactFlash card. |
| 5PC600.FA02-00 | Fan kits — APC620 fan kit, for system units with 2 PCI slots. |
| 5AC600.CANI-00 | Serial adapters — The add-on CAN interface is equipped with an Intel 82527 CAN controller that conforms to the CAN 2.0 specification, Part A/B. The CAN contr… |
| 5AC600.485I-00 | Serial adapters — This serial interface is a combined RS232/RS422/RS485 interface. The operating mode (RS232/RS422/RS485) is selected automatically depending… |
| 5AC600.UPSI-00 | Uninterruptible power supplies — UPS module for APC620, APC810, PPC800, for system units 5PC600.SX01-00 (starting with Rev. H0), 5PC600.SX02-00 (starting with Rev. G0), 5PC… |
