PanelSeT CRN Parts


Symmetrical mounting chassis (6 rails) for enclosure dimensions H700xW500mm

Symmetrical mounting chassis (6 rails) for enclosure dimensions H600xW600mm

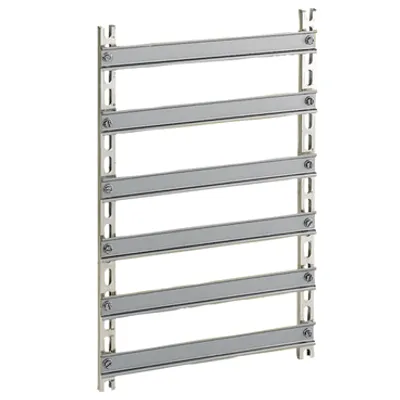

Symmetrical mounting chassis (6 rails) for enclosure dimensions H600xW400mm

Symmetrical mounting chassis (4 rails) for enclosure dimensions H500xW400mm

Symmetrical mounting chassis (4 rails) for enclosure dimensions H400xW300mm

Symmetrical mounting chassis (4 rails) for enclosure dimensions H300xW300mm

Symmetrical mounting chassis (7 rails) for enclosure dimensions H1200xW800mm

Symmetrical mounting chassis (6 rails) for enclosure dimensions H1000xW800mm

Hexagonal spacers M8 height 60 for raising mounting plates, etc. Supply: 100

Hexagonal spacers M8 height 50 for raising mounting plates, etc. Supply: 100

Hexagonal spacers M6 height 50 for raising mounting plates, etc. Supply: 100

Hexagonal spacers M8 height 40 for raising mounting plates, etc. Supply: 100

Hexagonal spacers M6 height 40 for raising mounting plates, etc. Supply: 100

Hexagonal spacers M8 height 30 for raising mounting plates, etc. Supply: 100

Hexagonal spacers M6 height 30 for raising mounting plates, etc. Supply: 100

Hexagonal spacers M8 height 20 for raising mounting plates, etc. Supply: 100

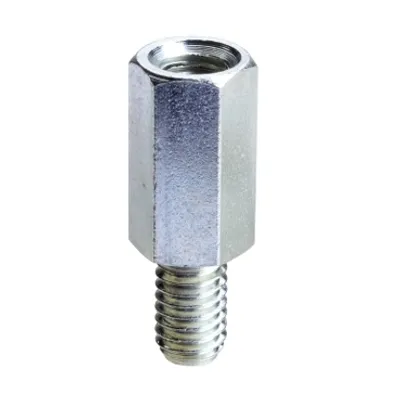

Hexagonal spacers M6 height 16 for raising mounting plates, etc. Supply: 100

Hexagonal spacers M8 height 15 for raising mounting plates, etc. Supply: 100

Hexagonal spacers M6 height 14 for raising mounting plates, etc. Supply: 100

Hexagonal spacers M6 height 10 for raising mounting plates, etc. Supply: 100

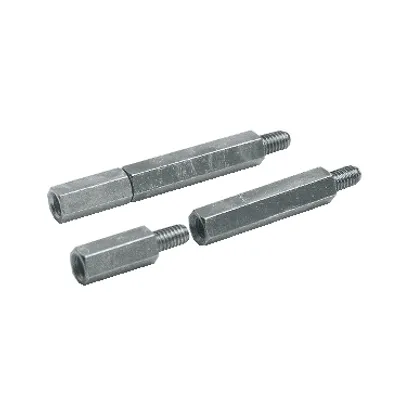

Hexagonal spacers M8 height 100 for raising mounting plates, etc. Supply: 100

Hexagonal spacers M6 height 100 for raising mounting plates, etc. Supply: 100

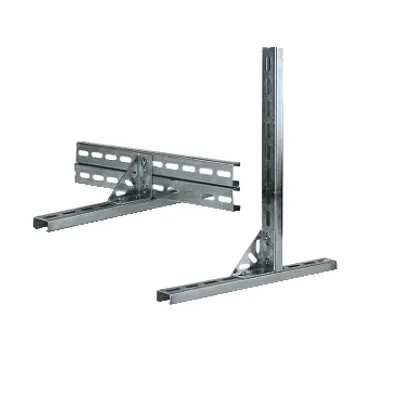

EVA connectors 42x19 for symmetric C-shaped rails, C20 and C40 types.Supply: 20
Compare PanelSeT CRN
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product or component type | Device composition | Quantity per set | Material | Height |
|---|---|---|---|---|---|
| NSYMD86 | Chassis | Fixing elements, 6 DIN rail, 2 upright | Set of 1 | Uprights: aluminium, Rail: steel | Real: 739.3 mm, Nominal: 800 mm |
| NSYMD75 | Chassis | Fixing elements, 6 DIN rail, 2 upright | Set of 1 | Uprights: aluminium, Rail: steel | Real: 639.3 mm, Nominal: 700 mm |
| NSYMD66 | Chassis | Fixing elements, 6 DIN rail, 2 upright | Set of 1 | Uprights: aluminium, Rail: steel | Nominal: 600 mm, Real: 539.3 mm |
| NSYMD64 | Chassis | Fixing elements, 6 DIN rail, 2 upright | Set of 1 | Uprights: aluminium, Rail: steel | Nominal: 600 mm, Real: 539.3 mm |
| NSYMD54 | Chassis | Fixing elements, 2 upright, 4 DIN rail | Set of 1 | Uprights: aluminium, Rail: steel | Nominal: 500 mm, Real: 439.3 mm |
| NSYMD43 | Chassis | Fixing elements, 2 upright, 4 DIN rail | Set of 1 | Uprights: aluminium, Rail: steel | Nominal: 400 mm, Real: 339.3 mm |
| NSYMD33 | Chassis | Fixing elements, 2 upright, 4 DIN rail | Set of 1 | Uprights: aluminium, Rail: steel | Nominal: 300 mm, Real: 239.3 mm |
| NSYMD128 | Chassis | Fixing elements, 2 upright, 7 DIN rail | Set of 1 | Uprights: aluminium, Rail: steel | Real: 1152.4 mm, Nominal: 1200 mm |
| NSYMD108 | Chassis | Fixing elements, 6 DIN rail, 2 upright | Set of 1 | Uprights: aluminium, Rail: steel | Real: 939.3 mm, Nominal: 1000 mm |
| NSYEX608 | Spacer | 1 spacer | Set of 100 | Galvanised steel | 60 mm |
| NSYEX508 | Spacer | 1 spacer | Set of 100 | Galvanised steel | 50 mm |
| NSYEX506 | Spacer | 1 spacer | Set of 100 | Galvanised steel | 50 mm |
| NSYEX408 | Spacer | 1 spacer | Set of 100 | Galvanised steel | 40 mm |
| NSYEX406 | Spacer | 1 spacer | Set of 100 | Galvanised steel | 40 mm |
| NSYEX308 | Spacer | 1 spacer | Set of 100 | Galvanised steel | 30 mm |
| NSYEX306 | Spacer | 1 spacer | Set of 100 | Galvanised steel | 30 mm |
| NSYEX208 | Spacer | 1 spacer | Set of 100 | Galvanised steel | 20 mm |
| NSYEX166 | Spacer | 1 spacer | Set of 100 | Galvanised steel | 16 mm |
| NSYEX158 | Spacer | 1 spacer | Set of 100 | Galvanised steel | 15 mm |
| NSYEX146 | Spacer | 1 spacer | Set of 100 | Galvanised steel | 14 mm |
| NSYEX106 | Spacer | 1 spacer | Set of 100 | Galvanised steel | 10 mm |
| NSYEX1008 | Spacer | 1 spacer | Set of 100 | Galvanised steel | 100 mm |
| NSYEX1006 | Spacer | 1 spacer | Set of 100 | Galvanised steel | 100 mm |
| NSYEVA20 | Connector | 1 connector | Set of 20 | Steel | 43 mm |
