Schneider Electric NSYMD108

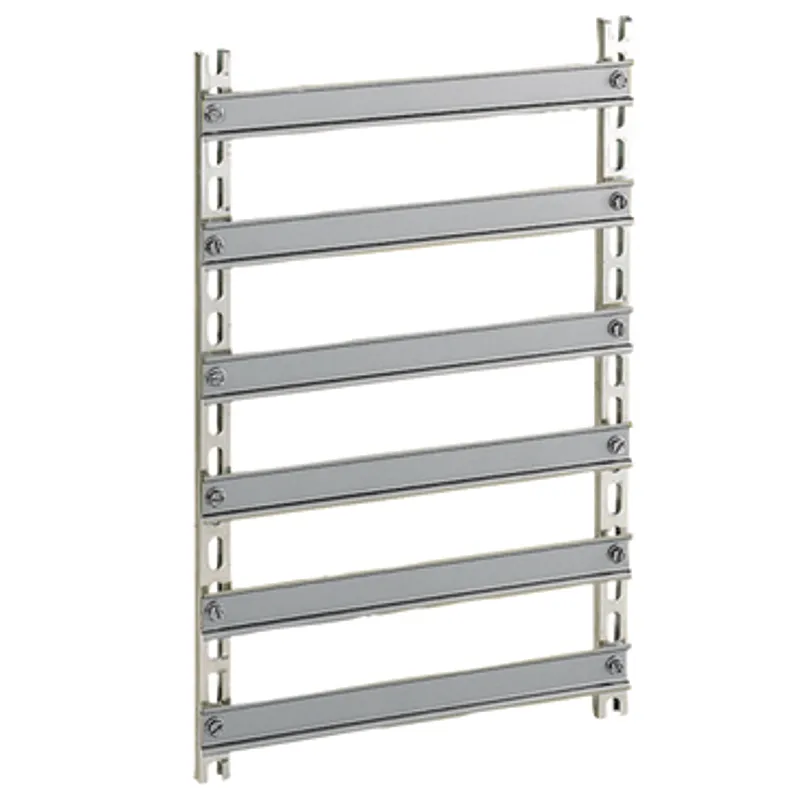

Symmetrical mounting chassis (6 rails) for enclosure dimensions H1000xW800mm
- MPN
- NSYMD108
- EAN
- 3606480182792
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMD108?
Set of 1 symmetrical DIN rails for equipment to be used in PanelSeT CRN, PanelSeT S3D, PanelSeT S3X and PanelSeT PLM enclosures The chassis is made from aluminium uprights and steel rail The nominal width is 800mm and real width is 750mm The real depth is 30mm The real height is 939,3mm and nominal height is 1000mm Fixed with a pitch of 12mm The kit is made up of fixing elements, 6 DIN rails and 2 uprights
Specifications
Specifications
| Anwendung | Multi-purpose |
| Range | PanelSeT |
| Product or component type | Chassis |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Symmetrical DIN |
| Enclosure nominal dimensions | - |
| Mounting support | Direct fixing on backstuds, Step slide, Spacer |
| Range compatibility | PanelSeT CRN, PanelSeT S3D, PanelSeT PLM |
| Device composition | Fixing elements, 6 DIN rail, 2 upright |
| Quantity per set | Set of 1 |
| Material | Uprights: aluminium, Rail: steel |
| Fixing mode | Screwed on backstuds, By fixing element |
| Adjustment | On step slides, type NSYSDCR…, pitch 12.5 mm |
| Height | Real: 939.3 mm, Nominal: 1000 mm |
| Width | Nominal: 800 mm, Real: 750 mm |
| Depth | Real : 30 mm |
Packaging
| Package 1 | 1 PCE, 94.500 cm × 7.500 cm × 4.500 cm (L × W × H), 3.766 kg |
| Package 2 | 15 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 56.490 kg |
