Schneider Electric NSYMD64

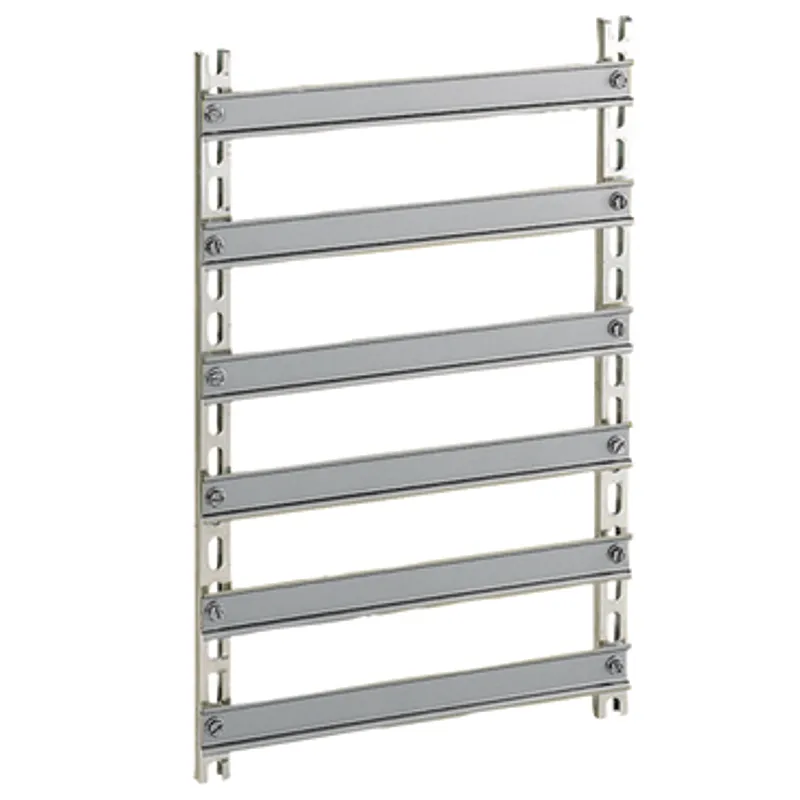

Symmetrical mounting chassis (6 rails) for enclosure dimensions H600xW400mm
- MPN
- NSYMD64
- EAN
- 3606480182846
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMD64?
Set of 1 symmetrical DIN rails for equipment to be used in PanelSeT CRN, PanelSeT S3D, PanelSeT S3X and PanelSeT PLM enclosures The chassis is made from aluminium uprights and steel rail The nominal width is 400mm and real width is 350mm The real depth is 30mm The nominal height is 600mm and real height is 539,3mm Fixed with a pitch of 12mm The kit is made up of fixing elements, 6 DIN rails and 2 uprights
Specifications
Specifications
| Anwendung | Multi-purpose |
| Range | PanelSeT |
| Product or component type | Chassis |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Symmetrical DIN |
| Enclosure nominal dimensions | - |
| Mounting support | Spacer, Step slide, Direct fixing on backstuds |
| Range compatibility | PanelSeT CRN, PanelSeT S3D, PanelSeT PLM |
| Device composition | Fixing elements, 6 DIN rail, 2 upright |
| Quantity per set | Set of 1 |
| Material | Uprights: aluminium, Rail: steel |
| Fixing mode | Screwed on backstuds, By fixing element |
| Adjustment | On step slides, type NSYSDCR…, pitch 12.5 mm |
| Height | Nominal: 600 mm, Real: 539.3 mm |
| Width | Nominal: 400 mm, Real: 350 mm |
| Depth | Real : 30 mm |
Packaging
| Package 1 | 1 PCE, 5.500 cm × 54.500 cm × 4.000 cm (L × W × H), 1.220 kg |
| Package 2 | 150 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 202.250 kg |
