NSYMD54Symmetrical mounting chassis (4 rails) for enclosure dimensions H500xW400mm
Schneider Electric NSYMD86
Symmetrical mounting chassis (6 rails)for enclosure dimensions H800xW600mm
- MPN
- NSYMD86
- EAN
- 3606480182877
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMD86?

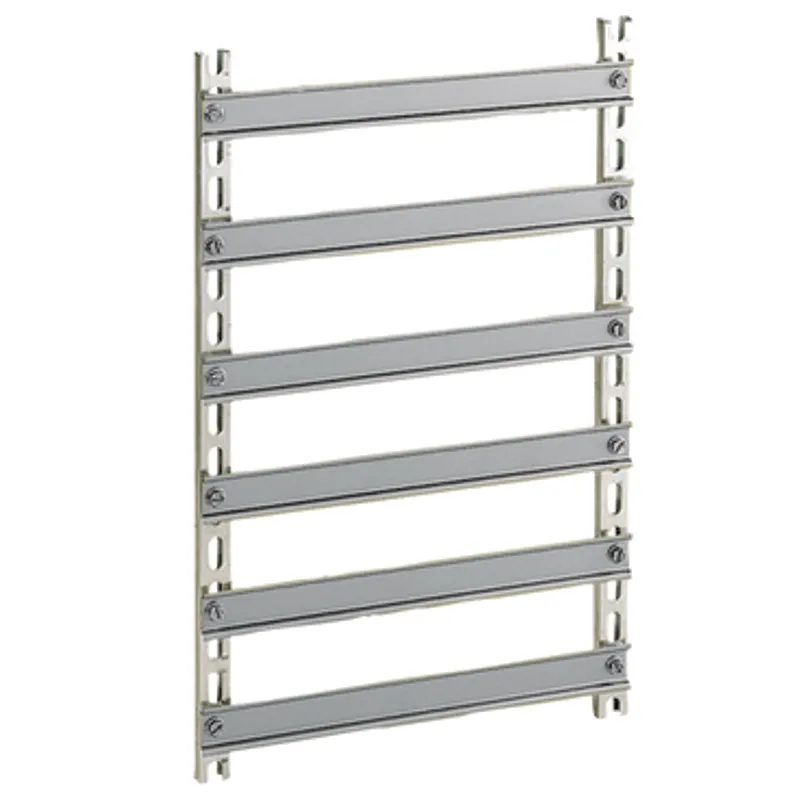

Set of 1 symmetrical DIN rails for equipment to be used in PanelSeT CRN, PanelSeT S3D, PanelSeT S3X and PanelSeT PLM enclosures The chassis is made from aluminium uprights and steel rail The nominal width is 600mm and real width is 550mm The real depth is 30mm The real height is 739,3mm and nominal height is 800mm Fixed with a pitch of 12mm The kit is made up of fixing elements, 6 DIN rails and 2 uprights
Specifications
Specifications
| Anwendung | Multi-purpose |
| Range | PanelSeT |
| Product or component type | Chassis |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Symmetrical DIN |
| Enclosure nominal dimensions | - |
| Mounting support | Step slide, Spacer, Direct fixing on backstuds |
| Range compatibility | PanelSeT CRN, PanelSeT S3D, PanelSeT PLM |
| Device composition | Fixing elements, 6 DIN rail, 2 upright |
| Quantity per set | Set of 1 |
| Material | Uprights: aluminium, Rail: steel |
| Fixing mode | Screwed on backstuds, By fixing element |
| Adjustment | On step slides, type NSYSDCR…, pitch 12.5 mm |
| Height | Real: 739.3 mm, Nominal: 800 mm |
| Width | Nominal: 600 mm, Real: 550 mm |
| Depth | Real : 30 mm |
Packaging
| Package 1 | 1 PCE, 73.500 cm × 12.000 cm × 4.000 cm (L × W × H), 2.854 kg |
| Package 2 | 20 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 57.080 kg |
