Schneider Electric NSYMD75

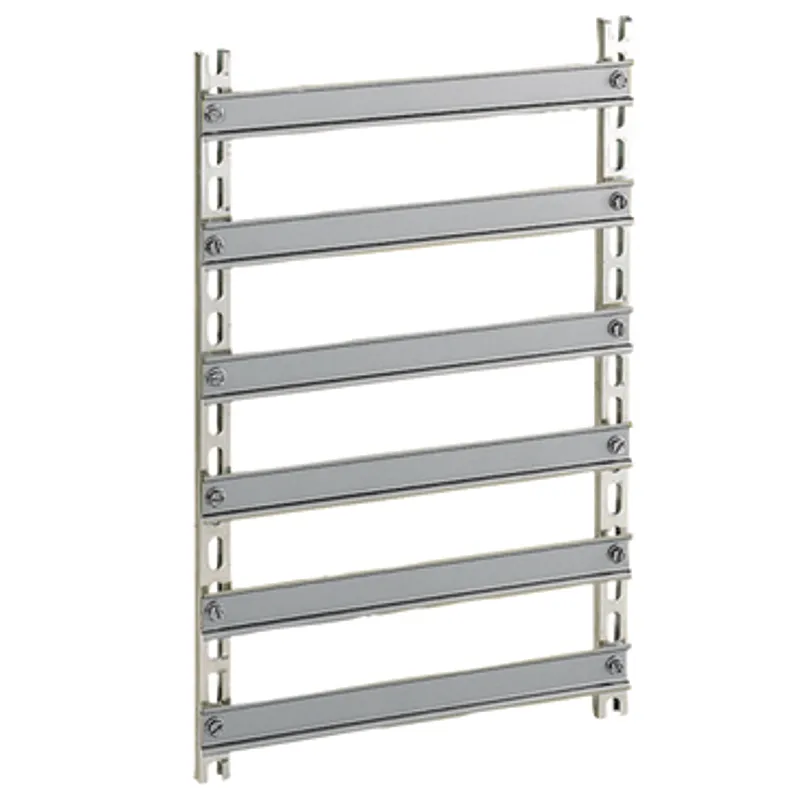

Symmetrical mounting chassis (6 rails) for enclosure dimensions H700xW500mm
- MPN
- NSYMD75
- EAN
- 3606480182860
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMD75?
Set of 1 symmetrical DIN rails for equipment to be used in PanelSeT CRN, PanelSeT S3D, PanelSeT S3X and PanelSeT PLM enclosures The chassis is made from aluminium uprights and steel rail The nominal width is 500mm and real width is 450mm The real depth is 30mm The real height is 639,3mm and nominal height is 700mm Fixed with a pitch of 12mm The kit is made up of fixing elements, 6 DIN rails and 2 uprights
Specifications
Specifications
| Anwendung | Multi-purpose |
| Range | PanelSeT |
| Product or component type | Chassis |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Symmetrical DIN |
| Enclosure nominal dimensions | - |
| Mounting support | Direct fixing on backstuds, Step slide, Spacer |
| Range compatibility | PanelSeT CRN, PanelSeT S3D, PanelSeT PLM |
| Device composition | Fixing elements, 6 DIN rail, 2 upright |
| Quantity per set | Set of 1 |
| Material | Uprights: aluminium, Rail: steel |
| Fixing mode | Screwed on backstuds, By fixing element |
| Adjustment | On step slides, type NSYSDCR…, pitch 12.5 mm |
| Height | Real: 639.3 mm, Nominal: 700 mm |
| Width | Nominal: 500 mm, Real: 450 mm |
| Depth | Real : 30 mm |
Packaging
| Package 1 | 1 PCE, 64.000 cm × 8.000 cm × 4.000 cm (L × W × H), 2.360 kg |
| Package 2 | 20 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 47.200 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMD75: frequently asked questions
When can NSYMD75 be shipped?
NSYMD75 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMD75 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMD75 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMD75, subject to availability and destination.
