Passive Splitters Parts
Compare Passive Splitters
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Cable: Cores | Mass | Dimensions: Height | Dimensions: Length |
|---|---|---|---|---|---|
| VAZ-T1-FK-G10-1M-PUR-V1-G-F3A | 70202819 | 2 x 0.34 mm2 | 70 g | 22 mm | 40.5 mm |

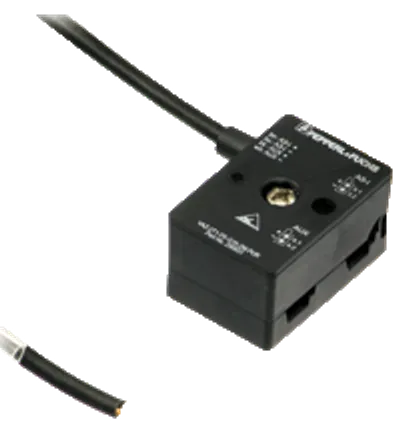

| VAZ-2T1-FK-G10-5M-PUR | 307978 | 4 x 0.5 mm2 | 100 g | 22 mm | 40.5 mm |
| VAZ-2T1-FK-G10-PTC-2M-PUR-V1-G | 263224 | 4 x 0.34 mm2 | 100 g | 22 mm | 40.5 mm |

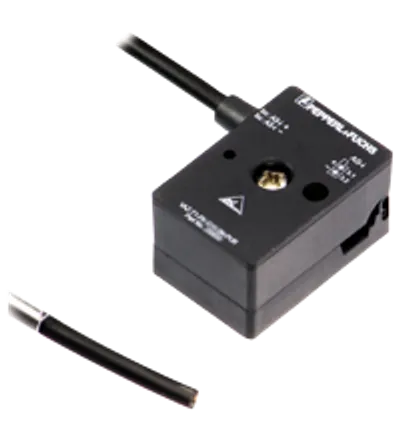

| VAZ-T1-FK-G10A-2M-PUR | 70194888 | 2 x 0.5 mm2 | 100 g | 22 mm | 40.5 mm |
| VAZ-T1-FK-G10-F-2M-PUR-V1-G | 70195166 | 2 x 0.34 mm2 | 100 g | 22 mm | 40.5 mm |

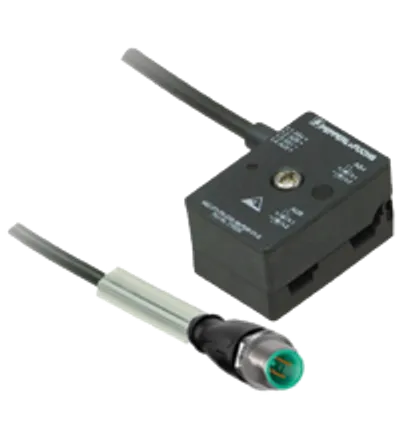

| VAZ-T1-FK-G10-1M-PUR-V1S-G | 70192057 | 2 x 0.34 mm2 | 75 g | 22 mm | 40.5 mm |

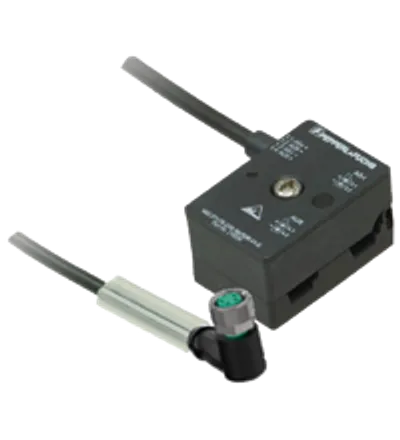

| VAZ-2T1-FK-G10-1M-PUR-V31-WM | 70192041 | 4 x 0.34 mm2 | 75 g | 22 mm | 40.5 mm |
| V3-4A-E2-5M-PUR | 70132535 | — | 449.8 g | 20 mm | 85.5 mm |
| VAZ-T1-FK-G10-F1-1M-PUR-V1-G | 70170829 | 2 x 0.5 mm2 | 70 g | 22 mm | 40.5 mm |

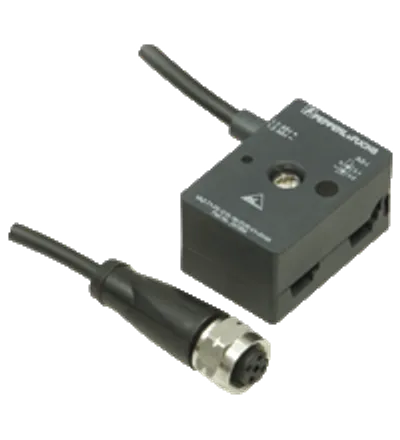

| VAZ-T1-FK-G10-2M-PUR-V1-GV4A | 301177 | 2 x 0.5 mm2 | 75 g | 22 mm | 40.5 mm |

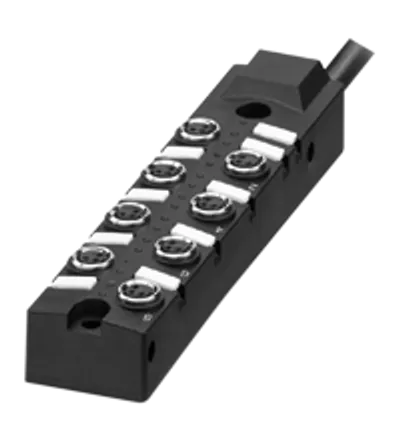

| V3-8A-E2-10M-PUR | 70132543 | — | 1142 g | 20 mm | 129.5 mm |
| V3-8A-E2-5M-PUR | 70132542 | — | 627.5 g | 20 mm | 129.5 mm |

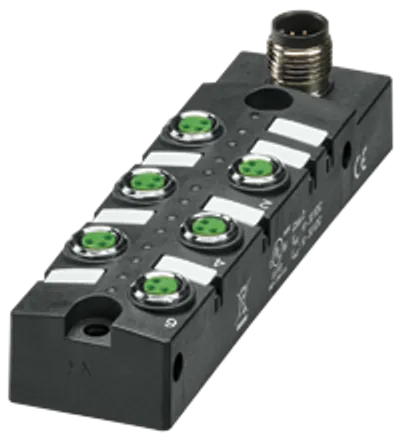

| V3-6A-E2-V19 | 70132539 | — | 93.32 g | 23.6 mm | 107.5 mm |

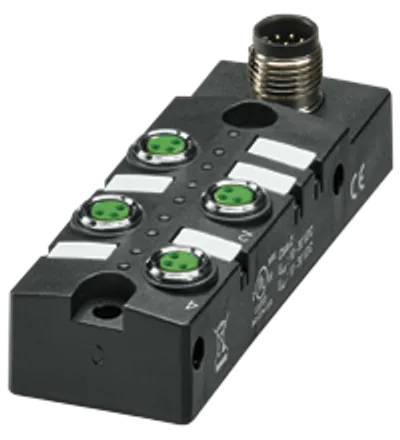

| V3-4A-E2-V19 | 70132541 | — | 74.87 g | 23.6 mm | 85.5 mm |

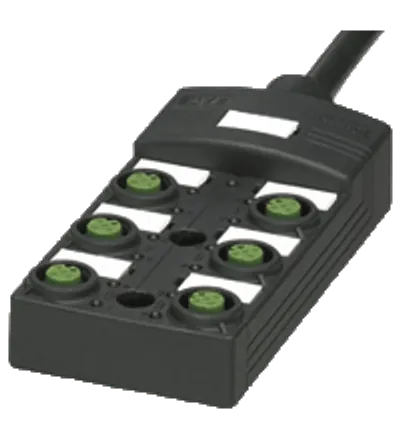

| V1-6A-E2-10M-PUR | 323957 | — | approx. 540 g | 23.1 mm | 122.8 mm |

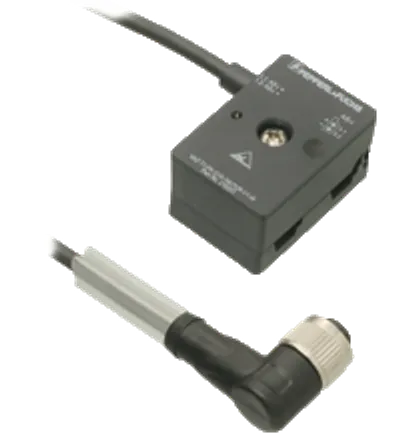

| VAZ-T1-FK-G10-1M-PUR-V1-W | 216033 | 2 x 0.34 mm2 | 75 g | 22 mm | 40.5 mm |

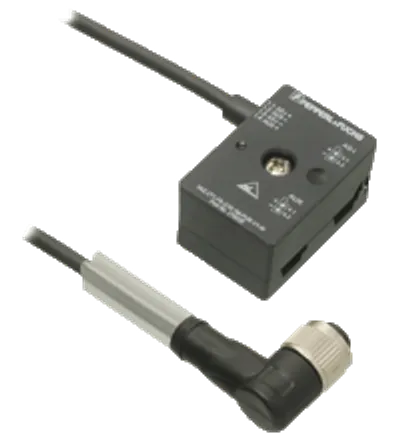

| VAZ-2T1-FK-G10-1M-PUR-V1-W | 216039 | 4 x 0.34 mm2 | 75 g | 22 mm | 40.5 mm |

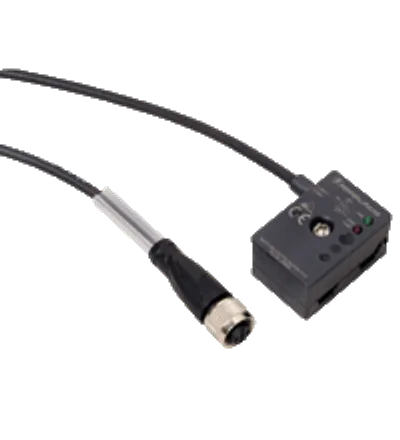

| VAZ-T1-FK-G10-PTC-1M-PUR-V1-G | 245608 | 2 x 0.34 mm2 | 100 g | 22 mm | 40.5 mm |
| VAZ-2T1-FK-G10-PTC-1M-PUR-V1-G | 245609 | 4 x 0.34 mm2 | 100 g | 22 mm | 40.5 mm |

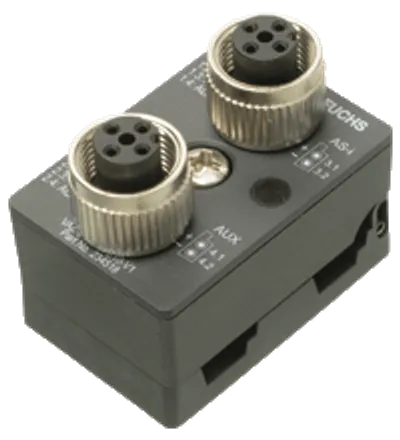

| VAZ-2T2-FK-G10-V1 | 234518 | — | 50 g | 21.5 mm | 40.5 mm |
| VAZ-T1-FK-G10-5M-PUR-V1-W | 216035 | 2 x 0.34 mm2 | 180 g | 22 mm | 40.5 mm |
| VAZ-T1-FK-G10-2M-PUR-V1-W | 216034 | 2 x 0.34 mm2 | 100 g | 22 mm | 40.5 mm |

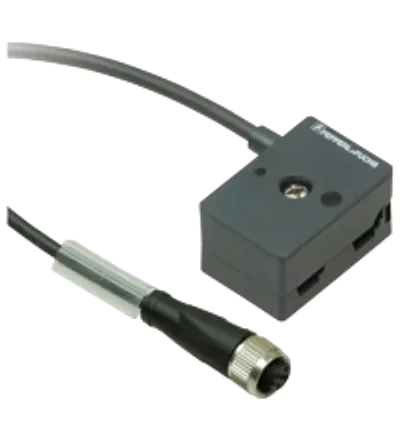

| VAZ-T1-FK-G10-5M-PUR-V1-G | 216032 | 2 x 0.34 mm2 | 180 g | 22 mm | 40.5 mm |
| VAZ-2T1-FK-G10-5M-PUR-V1-W | 216041 | 4 x 0.34 mm2 | 180 g | 22 mm | 40.5 mm |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
