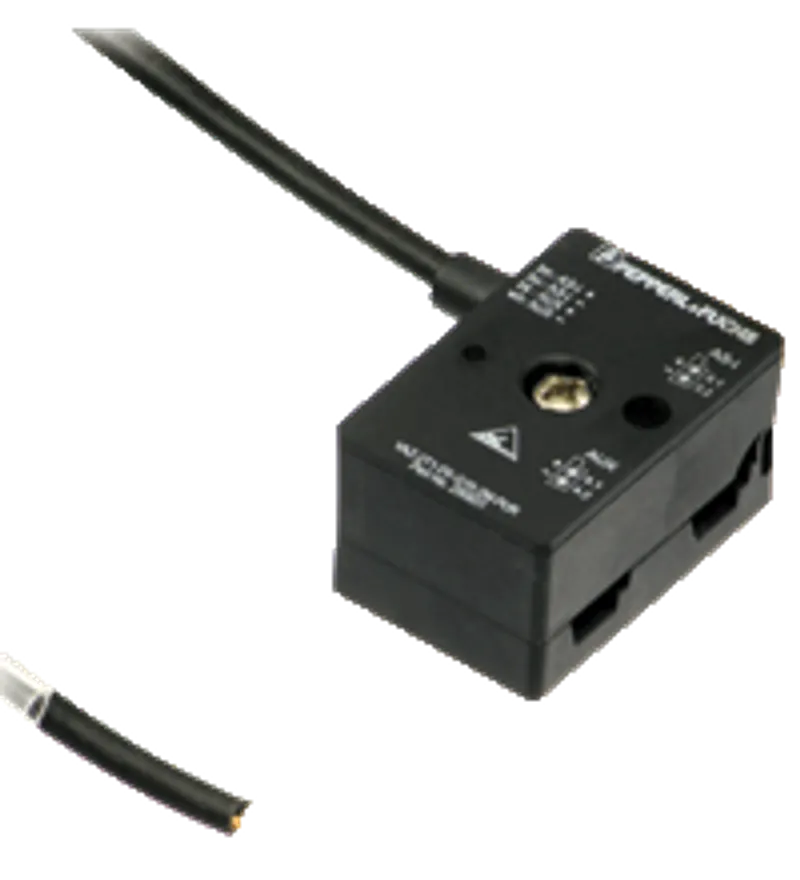

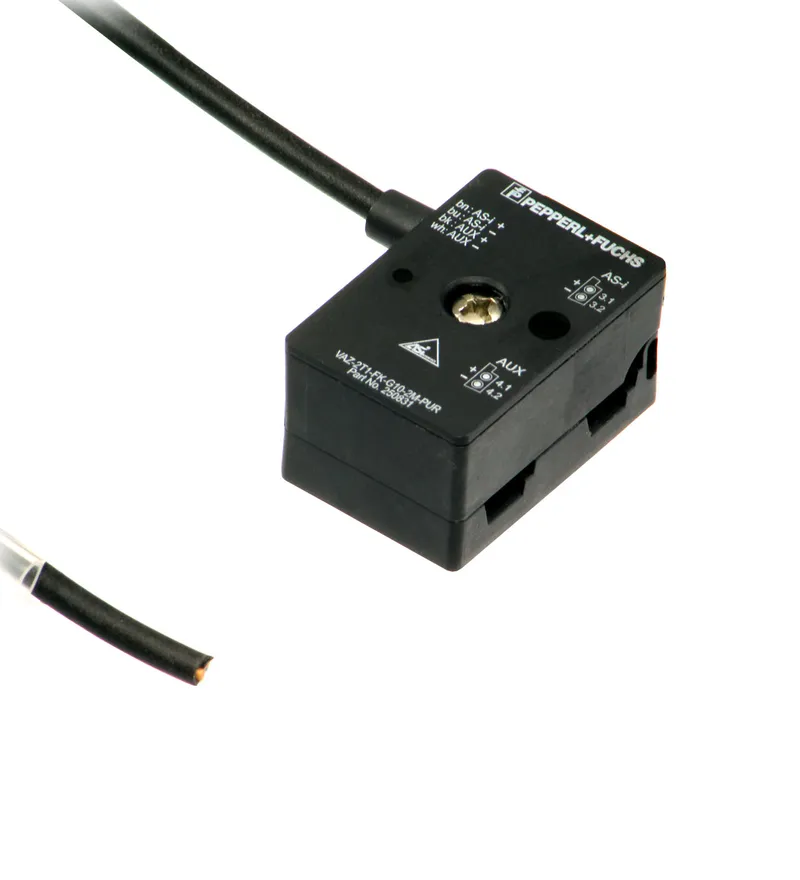

Pepperl Fuchs VAZ-2T1-FK-G10-5M-PUR – AS-Interface splitter box
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Passive Splitters |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VAZ-2T1-FK-G10-5M-PUR be shipped?
VAZ-2T1-FK-G10-5M-PUR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VAZ-2T1-FK-G10-5M-PUR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VAZ-2T1-FK-G10-5M-PUR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VAZ-2T1-FK-G10-5M-PUR, subject to availability and destination.
• One piece housing
• Simple and fast mounting
• Gold-plated and machined contacts
• Oil and abrasion resistant PUR line appropriate for drag chains
• Immunity to vibration
• Degree of protection IP68 / IP69K
• Halogen-free
G10 junction block, AS-Interface and auxiliary power to open cable end
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 307978 |
| Construction type | Open cable endAS-Interface flat cable terminals/external auxiliary power |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Rated operating voltage | ≤ 60 V PELV Ue |
| Rated operating current | ≤ 3 A AS-Interface, ≤ 3 A AUX Ie |
| Protection class | III |
| Surge protection | overvoltage category III |
| Pulse withstand voltage | 800 V |
Compliance with standards and directives
| Standard conformity: Degree of protection | EN 60529:2000 |
Approvals and certificates
| UL approval | cULus Listed, Type 1 enclosure |
| Application | for use in NFPA 79 applications |
| Maximum permissible operating voltage | max. 32 V |
| UL File Number | E223772 |
Ambient conditions
| Ambient temperature | -25 ... 75 °C (-13 ... 167 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Degree of protection | IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-* |

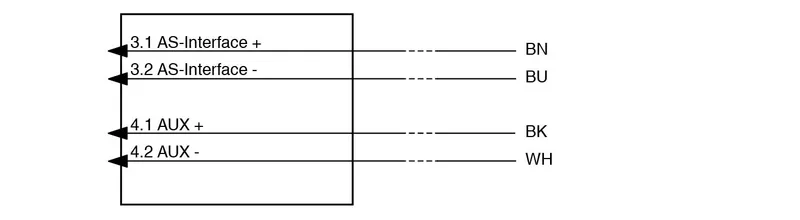

| Connection | Flat cable AS-Interface: cable piercing methodFlat cable ext. auxiliary voltage UAUX: Insulation penetration technologyRound cable |
| Material: Contacts | CuSn / Au |
| Material: Housing | PBT PC |
| Material: Cable | PUR |
| Material: Mounting screw | Stainless steel 1.4305 / AISI 303 |
| Cable: Sheath diameter | ∅4.8 mm |
| Cable: Color | black |
| Cable: Cores | 4 x 0.5 mm2 |
| Cable: Length | 5 m L |
| Mass | 100 g |
| Tightening torque, fastening screws | 1.65 Nm |

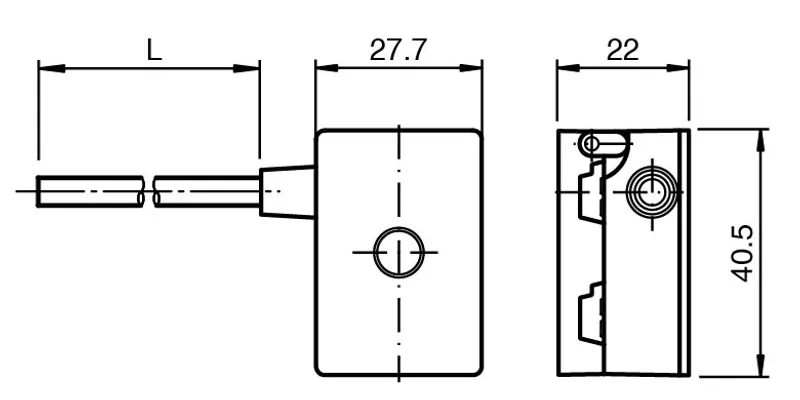

| Dimensions: Height | 22 mm |
| Dimensions: Width | 27.7 mm |
| Dimensions: Length | 40.5 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet VAZ-2T1-FK-G10-5M-PUR | |
| Commissioning Instructions | PDF · 74 kB |
Certificates (2)
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 118 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 902 kB |
More Pepperl Fuchs parts

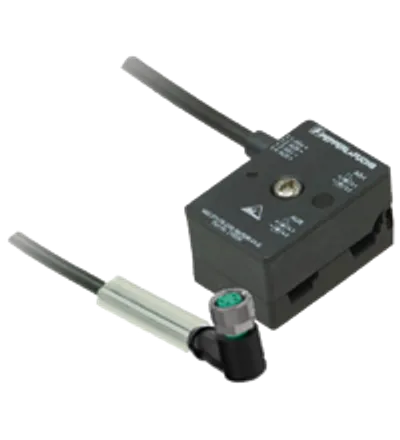

Available on requestAS-Interface splitter box VAZ-2T1-FK-G10-1M-PUR-V31-WM

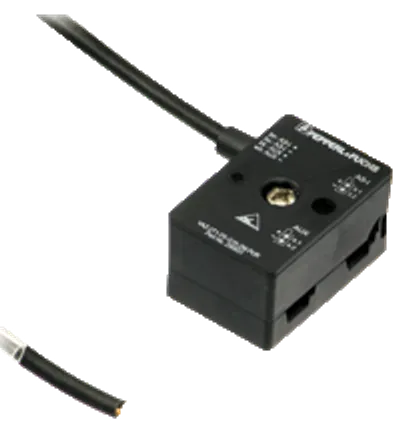

Available on requestAS-Interface splitter box VAZ-2T1-FK-G10-2M-PUR

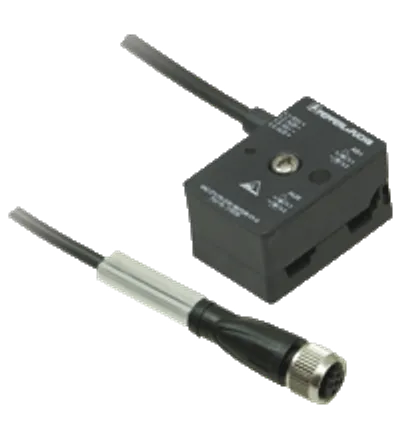

Available on requestAS-Interface splitter box VAZ-2T1-FK-G10-2M-PUR-V1-G

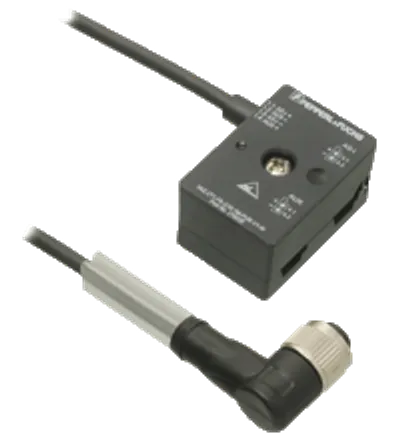

Available on requestAS-Interface splitter box VAZ-2T1-FK-G10-2M-PUR-V1-WAvailable on requestAS-Interface splitter box VAZ-2T1-FK-G10-5M-PUR-V1-GAvailable on requestAS-Interface splitter box VAZ-2T1-FK-G10-5M-PUR-V1-W
