Pepperl Fuchs VAZ-2T1-FK-G10-PTC-2M-PUR-V1-G – AS-Interface splitter box
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Passive Splitters |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VAZ-2T1-FK-G10-PTC-2M-PUR-V1-G be shipped?
VAZ-2T1-FK-G10-PTC-2M-PUR-V1-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VAZ-2T1-FK-G10-PTC-2M-PUR-V1-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VAZ-2T1-FK-G10-PTC-2M-PUR-V1-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VAZ-2T1-FK-G10-PTC-2M-PUR-V1-G, subject to availability and destination.
• One piece housing
• Simple and fast mounting
• Electronic current limitation with LED display
• Gold-plated and machined contacts
• Oil and abrasion resistant PUR line appropriate for drag chains
• Immunity to vibration
• Degree of protection IP68 / IP69K
• Halogen-free

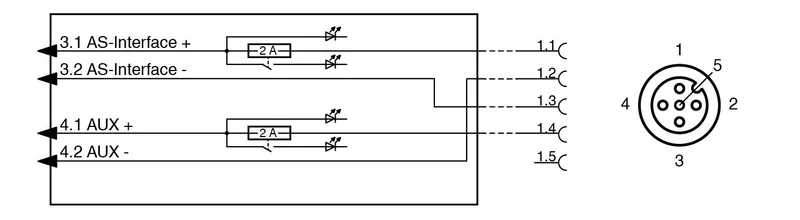

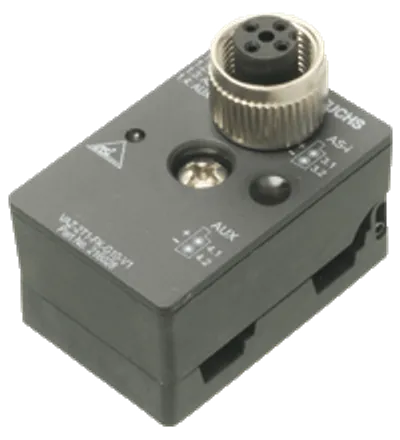

G10 junction block, LED status indication, AS-Interface, and auxiliary power to 1x M12 round plug connector
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 263224 |
| Construction type | Socket, straightFlat cable terminals AS-Interface/ext. auxiliary voltage |
| UL File Number | E223772 "For use in NFPA 79 Applications only" |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED Overload | Overload display output; red LED red: overload output |
| LED PWR | Operating voltage LED green Green: voltage OK |
Electrical specifications
| Rated operating voltage | 10 ... 32 V PELV ( AS-Interface , ext. auxiliary voltage AUX ) Ue |
| Protection class | III |
| Short-circuit current | max. 40 A Ik |
| Surge protection | overvoltage category III |
Output
| Current loading capacity | 1.6 A (40 °C) per output |
| Response delay | approx. 4 s @ 8 A |
| Voltage drop | 0.8 V at 2 A ; 0.3 V at 0.5 A Ud |
Compliance with standards and directives
| Directive conformity: EMC Directive 2004/108/EC | EN 61000-6-2:2005, EN 61000-6-4:2007 |
| Standard conformity: Noise immunity | EN 61000-6-2:2005 |
| Standard conformity: Emitted interference | EN 61000-6-4:2007 |
| Standard conformity: Degree of protection | EN 60529:2000 |
| Standard conformity: Fieldbus standard | EN 50295:1999, IEC 62026-2:2008 |
Approvals and certificates
| UL approval | cULus Listed, Type 1 enclosure |
| Maximum permissible ambient temperature | max. 55 °C (max. 131 °F) |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-* |
| Connection | Flat cable AS-Interface: cable piercing methodFlat cable ext. auxiliary voltage UAUX: Insulation penetration technologyPlug connection: M12 x 1 socket (V1) |
| Material: Contacts | CuSn / Au |
| Material: Housing | PBT PC |
| Material: Body | PUR, black |
| Material: Cable | PUR |
| Material: Mounting screw | Stainless steel 1.4305 / AISI 303 |
| Cable: Sheath diameter | ∅4,3 mm |
| Cable: Color | black |
| Cable: Cores | 4 x 0.34 mm2 |
| Cable: Length | 2 m L |
| Mass | 100 g |
| Tightening torque, fastening screws | 1.65 Nm |
| Tightening torque, cable gland | 0.4 Nm |
| Dimensions: Height | 22 mm |
| Dimensions: Width | 27.7 mm |
| Dimensions: Length | 40.5 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet VAZ-2T1-FK-G10-PTC-2M-PUR-V1-G |
Certificates (3)
| Canada, USA UL (CoC 20171220-E223772 RptRef E223772-20130501) | PDF · 452 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 201 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 175 kB |
