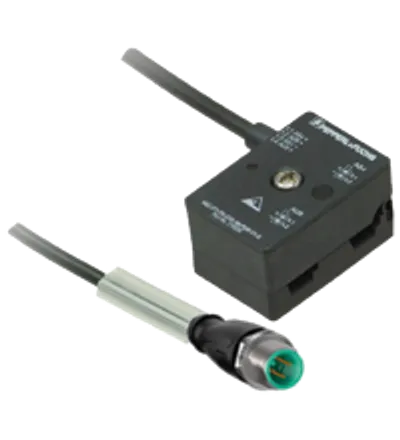

AS-Interface splitter box VAZ-T1-FK-G10-1M-PUR-V1-G-F3A — photo 1 of 3

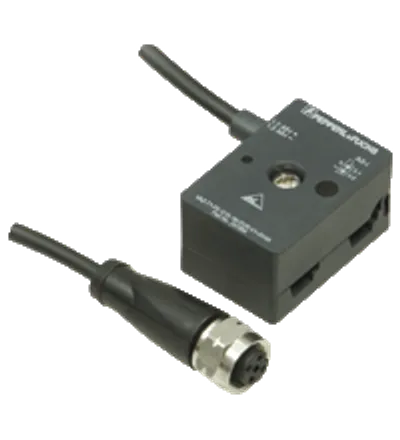

AS-Interface splitter box VAZ-T1-FK-G10-1M-PUR-V1-G-F3A — photo 2 of 3

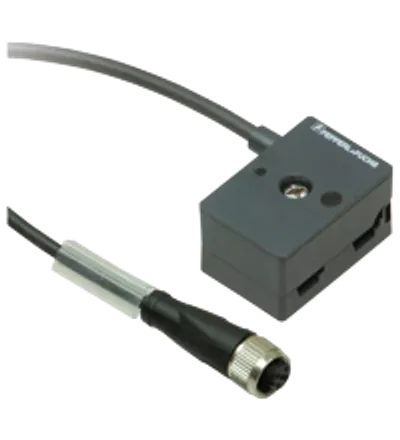

AS-Interface splitter box VAZ-T1-FK-G10-1M-PUR-V1-G-F3A — photo 3 of 3

Available on request

Pepperl Fuchs VAZ-T1-FK-G10-1M-PUR-V1-G-F3A – AS-Interface splitter box

MPN: VAZ-T1-FK-G10-1M-PUR-V1-G-F3A · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Passive Splitters
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can VAZ-T1-FK-G10-1M-PUR-V1-G-F3A be shipped?

VAZ-T1-FK-G10-1M-PUR-V1-G-F3A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VAZ-T1-FK-G10-1M-PUR-V1-G-F3A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VAZ-T1-FK-G10-1M-PUR-V1-G-F3A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VAZ-T1-FK-G10-1M-PUR-V1-G-F3A, subject to availability and destination.

• One piece housing

• Simple and fast mounting

• Fuse with LED display

• Gold-plated and machined contacts

• Oil and abrasion resistant PUR line appropriate for drag chains

• Immunity to vibration

• Degree of protection IP68 / IP69K

• Halogen-free

G10 junction block, LED status indication, AS-Interface to 1x M12 round plug connector

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70202819
Construction type	Socket, straightFlat cable terminal AS-Interface
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/operating means

LED FAULT	LED red: Fuse unit blown
LED PWR	LED green: normal operation

Electrical specifications

Rated operating voltage	10 ... 32 V PELV Ue
Protection class	III
Short-circuit current	max. 50 A Ik
Surge protection	Ue: Over voltage category III, safe isolated power supplies (PELV)

Output

Current loading capacity	Rated current of the fuse: 3 A Continous operation: 2.4 A
Voltage drop	≤ 0.4 V Ud
Overload protection	Fuse acc. to UL248-1, UL248-14

Compliance with standards and directives

Directive conformity: EMC Directive 2004/108/EC	EN 61000-6-2:2005, EN 61000-6-4:2007
Standard conformity: Noise immunity	EN 61000-6-2:2005
Standard conformity: Emitted interference	EN 61000-6-4:2007
Standard conformity: Degree of protection	EN 60529:2000

Approvals and certificates

UL approval	cULus Listed, Type 1 enclosure
Application	for use in NFPA 79 applications
Maximum permissible operating voltage	max. 32 V
Maximum permissible operating current	max. 3 A
Maximum permissible ambient temperature	max. 55 °C (max. 131 °F)
UL File Number	E223772

Ambient conditions

Ambient temperature	-25 ... 70 °C (-13 ... 158 °F)
Storage temperature	-25 ... 85 °C (-13 ... 185 °F)

Mechanical specifications

Degree of protection	IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*
Connection	Flat cable AS-Interface: cable piercing methodPlug connection: M12 x 1 socket (V1)
Material: Contacts	CuSn / Au
Material: Housing	PBT PC
Material: Body	PUR, black
Material: Cable	PUR
Material: Mounting screw	Stainless steel 1.4305 / AISI 303
Cable: Sheath diameter	∅4,3 mm
Cable: Color	black
Cable: Cores	2 x 0.34 mm2
Cable: Length	1 m L
Mass	70 g
Tightening torque, fastening screws	1.65 Nm
Tightening torque, cable gland	0.4 Nm

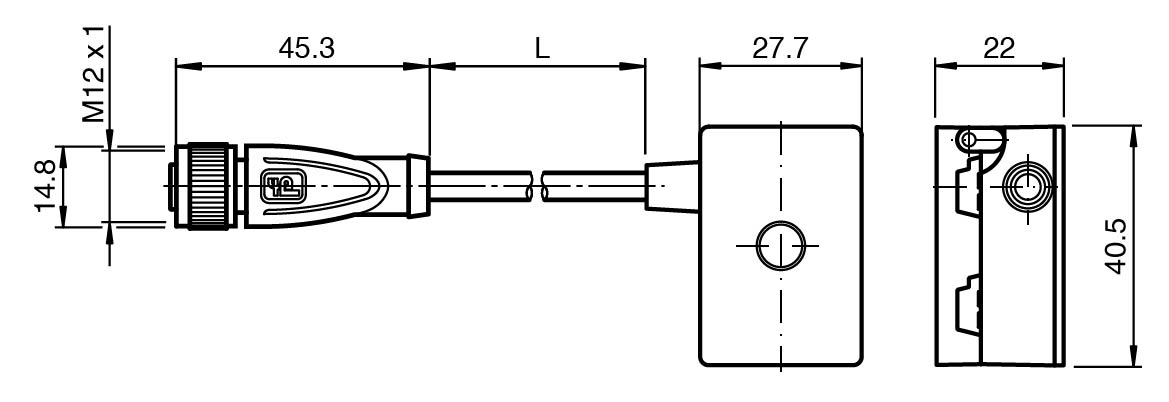

Dimensions: Height	22 mm
Dimensions: Width	27.7 mm
Dimensions: Length	40.5 mm
Note	The unused flat cable connector is closed with a seal.
