Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | operational current — at 30 °C rated value | operational current — at 40 °C rated value | operational current at AC rated value | power loss [W] for rated value of the current at AC in hot operating state per pole | Net Weight |
|---|---|---|---|---|---|

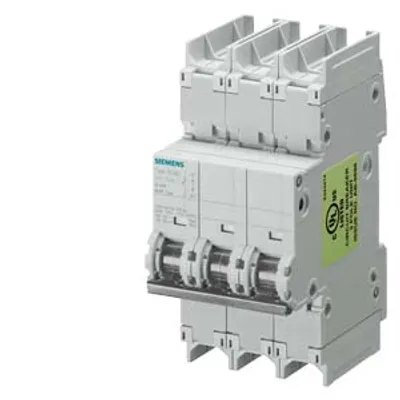

| 5SJ4306-7HG41 | 6 A | 6 A | 6 A | 2.7 W | 485.5 g |

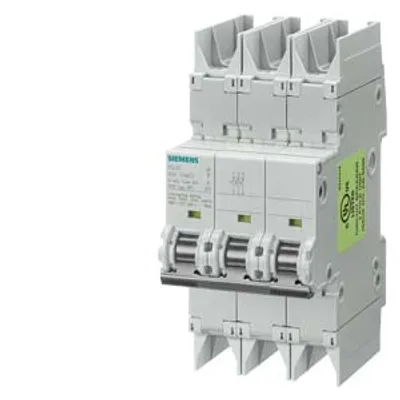

| 5SJ4305-8HG42 | 0.5 A | 0.5 A | 0.5 A | 1.2 W | 511 g |
| 5SJ4305-8HG41 | 0.5 A | 0.5 A | 0.5 A | 1.2 W | 503 g |
| 5SJ4305-7HG42 | 0.5 A | 0.5 A | 0.5 A | 1.2 W | 512 g |

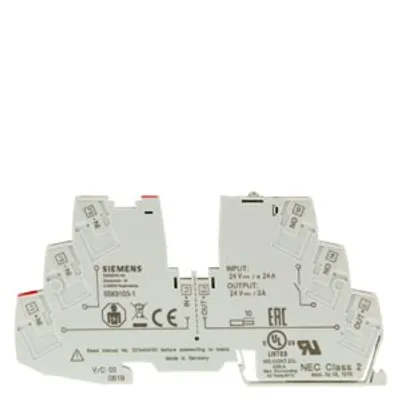

| 5SK9108-1 | — | 8 A | — | — | 45 g |
| 5SK9103-1 | — | 3 A | — | — | 44 g |
| 5SK9101-1 | — | 1 A | — | — | 45 g |

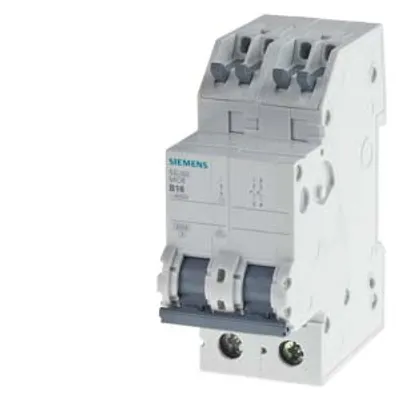

| 5SJ6516-7KS | — | — | 16 A | 1.9 W | 216 g |
| 5SJ6120-6KS | — | — | 20 A | 2.2 W | 127 g |

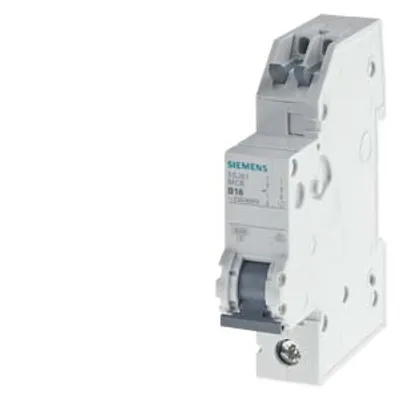

| 5SJ6113-7KS | — | — | 13 A | 2 W | 123 g |
| 5SJ6110-6KS | — | — | 10 A | 1.5 W | 117 g |
| 5SJ4210-7HG42 | 10 A | 10 A | 10 A | 1.4 W | 333 g |
| 5SJ4206-8HG41 | 6 A | 6 A | 6 A | 2.7 W | 327 g |
| 5SJ4203-8HG42 | 3 A | 3 A | 3 A | 1.8 W | 335 g |
| 5SJ4203-8HG41 | 3 A | 3 A | 3 A | 1.8 W | 329 g |

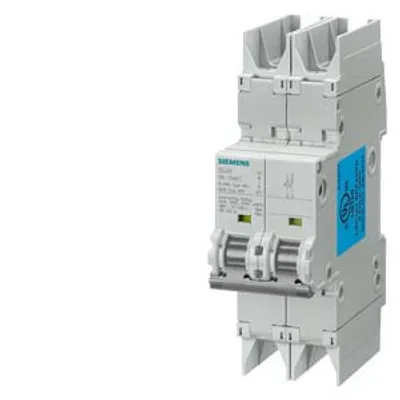

| 5SJ4203-7HG42 | 3 A | 3 A | 3 A | 1.8 W | 336 g |
| 5SJ4203-7HG41 | 3 A | 3 A | 3 A | 1.8 W | 329.5 g |
| 5SJ4220-7HG42 | 20 A | 20 A | 20 A | 2.4 W | 339 g |

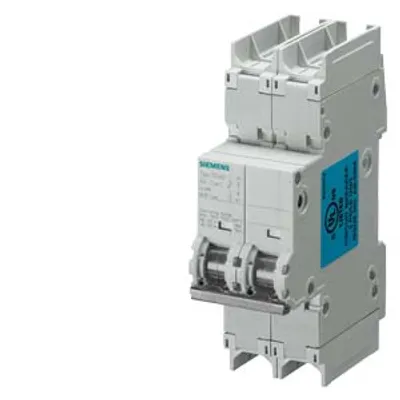

| 5SJ4220-7HG41 | 20 A | 20 A | 20 A | 2.4 W | 330 g |
| 5SJ4218-8HG42 | 15 A | 15 A | 15 A | 1.8 W | 337 g |
| 5SJ4215-7HG42 | 1.6 A | 1.6 A | 1.6 A | 1.6 W | 335 g |
| 5SJ4215-7HG41 | 1.6 A | 1.6 A | 1.6 A | 1.6 W | 334 g |
| 5SJ4214-8HG42 | 0.3 A | 0.3 A | 0.3 A | 1.1 W | 346 g |
| 5SJ4214-8HG41 | 0.3 A | 0.3 A | 0.3 A | 1.1 W | 344 g |
Common to all listed parts
| overvoltage category | 3 |
| product feature touch protection | Yes |
| product feature halogen-free | Yes |
| mounting position | any |
| ambient temperature during operation — minimum | -25 °C |
