Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | operational current — at 40 °C rated value | operational current — at 50 °C rated value | operational current — at 55 °C rated value | operational current — at 60 °C rated value | Net Weight |
|---|---|---|---|---|---|
| 5SY4220-7 | 18.78 A | 17.48 A | 16.8 A | 16.08 A | 309 g |
| 5SY4220-6 | 18.78 A | 17.48 A | 16.8 A | 16.08 A | 317 g |
| 5SY4216-7 | 15.02 A | 13.98 A | 13.44 A | 12.86 A | 298 g |
| 5SY4310-8 | 9.39 A | 8.74 A | 8.4 A | 8.04 A | 445 g |
| 5SY4306-7 | 5.71 A | 5.41 A | 5.25 A | 5.09 A | 454.5 g |

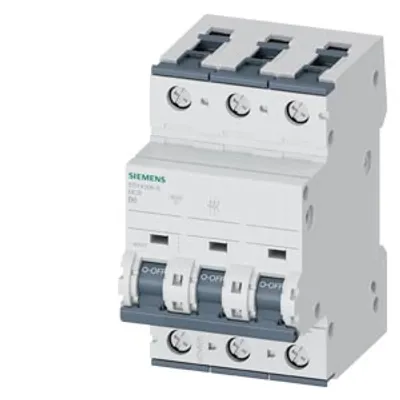

| 5SY4306-6-Z W09 | 5.71 A | 5.41 A | 5.25 A | 5.09 A | 460 g |
| 5SY4306-5 | 5.71 A | 5.41 A | 5.25 A | 5.09 A | 476 g |

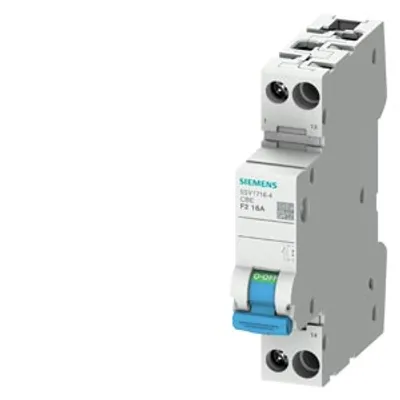

| 5SY1716-4 | 14.67 A | 13.82 A | 13.38 A | 12.93 A | 121 g |
| 5SY1708-2 | 7.33 A | 6.91 A | 6.69 A | 6.46 A | 122 g |
| 5SY1706-4 | 5.5 A | 5.18 A | 5.02 A | 4.85 A | 111 g |
| 5SY1706-2 | 5.5 A | 5.18 A | 5.02 A | 4.85 A | 112 g |
| 5SY4204-7 | 3.76 A | 3.5 A | 3.36 A | 3.22 A | 307 g |
| 5SY4203-8 | 2.82 A | 2.62 A | 2.52 A | 2.41 A | 306 g |

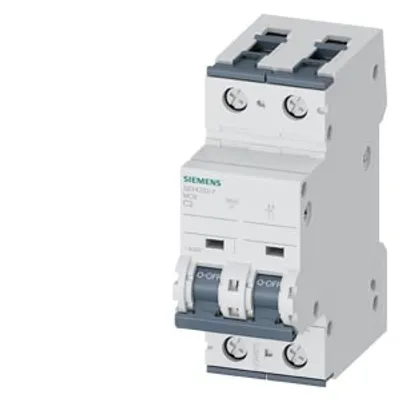

| 5SY4202-7-Z W08 | — | — | — | — | 312 g |
| 5SY4202-7 | — | — | — | — | 312 g |

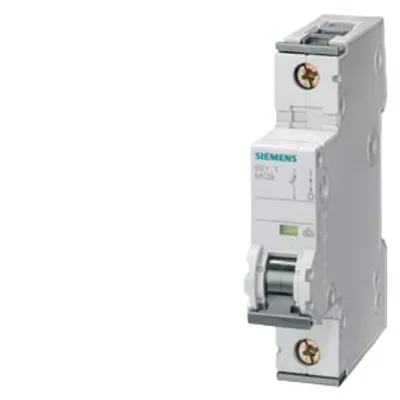

| 5SY7106-6KK13 | 5.63 A | 5.24 A | 5.04 A | 4.82 A | 161 g |
| 5SY4210-6-Z W08 | — | — | — | — | 305.1 g |
| 5SY4206-8 | 5.63 A | 5.24 A | 5.04 A | 4.82 A | 305 g |
| 5SY4425-8 | 23.8 A | 22.55 A | 21.88 A | 21.2 A | 630 g |
| 5SY4420-7 | 19.04 A | 18.04 A | 17.5 A | 16.96 A | 618 g |
| 5SY4420-6 | 19.04 A | 18.04 A | 17.5 A | 16.96 A | 610 g |

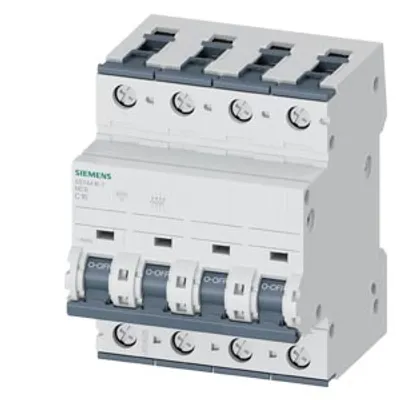

| 5SY4416-7 | 15.23 A | 14.43 A | 14 A | 13.57 A | 594 g |

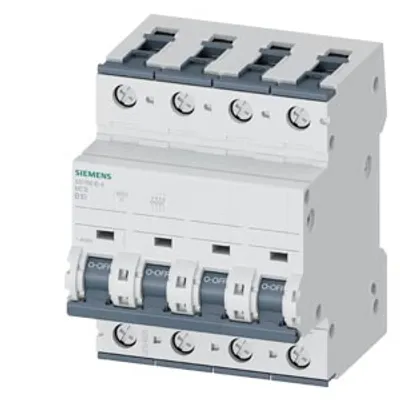

| 5SY6610-6 | 9.52 A | 9.02 A | 8.75 A | — | 607 g |
Common to all listed parts
| overvoltage category | 3 |
| value range of the supply voltage frequency | 50/60 Hz |
| operating voltage at DC rated value maximum | 72 V |
| product feature touch protection | Yes |
| product feature properties for main switches in accordance with EN 60204-1 | Yes |
| product feature halogen-free | Yes |
| product feature sealable | Yes |
| product feature silicon-free | Yes |
