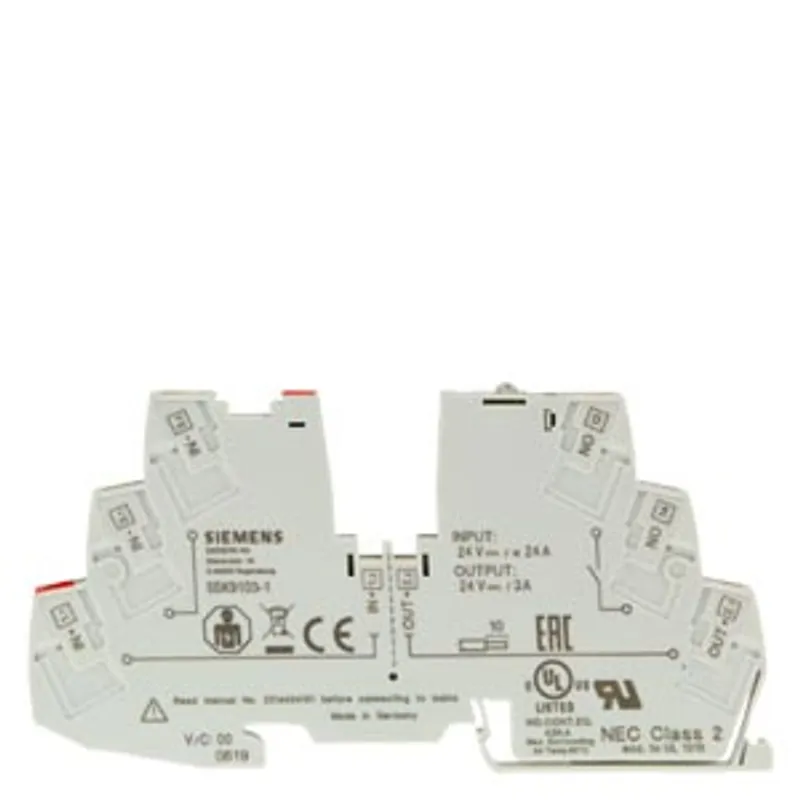

What is the Siemens 5SK9103-1?

circuit breaker Equipment elektronisch, 3A, DC 24V 1 auxilliary switch

Specifications

Model

product brand nameSENTRON
product designationDevice protection switch electronic
design of the productAssembly like a terminal

General technical data

number of poles1
design of pole1P
overvoltage category3

Voltage

type of voltage of the operating voltageDC
operational current — at 40 °C rated value3 A

Supply voltage

supply voltage — at DC rated value24 V
operating voltage at DC rated value maximum30 V

Protection class

protection class IPIP20
suitability for operationInfrastructure / Industry

Product details

product feature touch protectionYes
product component — neutral conductor switchingNo
product feature halogen-freeYes
product extension installable supplementary devicesNo

Connections

connectable conductor cross-section solid — minimum0.2 mm²
connectable conductor cross-section solid — maximum4 mm²
connectable conductor cross-section stranded — minimum0.2 mm²
connectable conductor cross-section stranded — maximum3 mm²
connectable conductor cross-section finely stranded with core end processing — minimum0.2 mm²
connectable conductor cross-section finely stranded with core end processing — maximum2.5 mm²
AWG number as coded connectable conductor cross section — minimum24
AWG number as coded connectable conductor cross section — maximum12
position of power supply cordAny

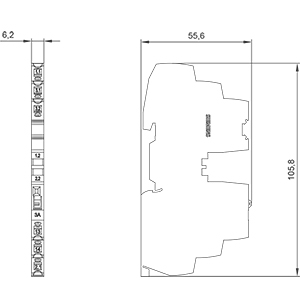

Mechanical Design

height105.8 mm
width6.2 mm
depth55.6 mm
installation depth56 mm
number of modular width units1
fastening methodStandard mounting rail TS 35
mounting positionany
Net Weight44 g

Environmental conditions

influence of the surrounding temperaturemax. 95% humidity
ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum60 °C
