Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | operational current — at 30 °C rated value | operational current — at 40 °C rated value | operational current — at 55 °C rated value | power loss [W] for rated value of the current at AC in hot operating state per pole | Net Weight |
|---|---|---|---|---|---|
| 5SJ4303-8HG42 | 3 A | 3 A | 2.7 A | 1.8 W | 494 g |
| 5SJ4303-8HG41 | 3 A | 3 A | 2.7 A | 1.8 W | 487 g |
| 5SJ4303-7HG42 | 3 A | 3 A | 2.7 A | 1.8 W | 494 g |
| 5SJ4260-7HG41 | 60 A | 60 A | 55.5 A | 6.5 W | 354 g |
| 5SJ4250-8HG41 | 50 A | 50 A | 46.9 A | 6.3 W | 340 g |
| 5SJ4250-7HG41 | 50 A | 50 A | 46.9 A | 6.3 W | 347 g |

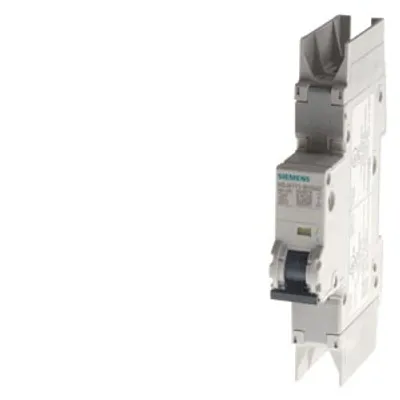

| 5SJ4106-8HG42 | 6 A | 6 A | 5.6 A | 2.7 W | 175 g |

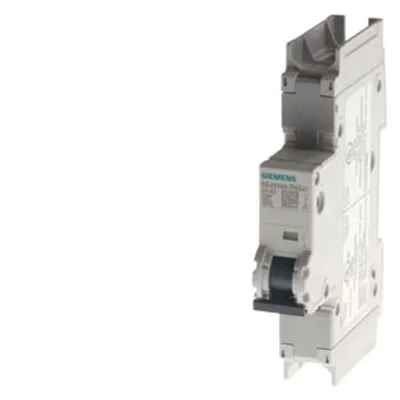

| 5SJ4104-8HG41 | 4 A | 4 A | 3.7 A | 1.6 W | 170 g |

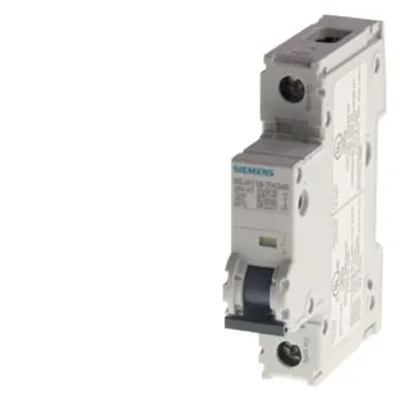

| 5SJ4104-8HG40 | 4 A | 4 A | 3.7 A | 1.6 W | 161 g |
| 5SJ4104-7HG42 | 4 A | 4 A | 3.7 A | 1.8 W | 174 g |
| 5SJ4135-7HG42 | 35 A | 35 A | 31.8 A | 3.7 W | 175 g |
| 5SJ4130-7HG40 | 30 A | 30 A | 27.2 A | 3.4 W | 164 g |
| 5SJ4130-6HG40 | 30 A | 30 A | 27.2 A | 3.4 W | 165.5 g |
| 5SJ4125-8HG42 | 25 A | 25 A | 22.7 A | 2.9 W | 174 g |
| 5SJ4125-8HG41 | 25 A | 25 A | 22.7 A | 2.9 W | 170 g |
| 5SJ4240-7HG41 | 40 A | 40 A | 37 A | 4.8 W | 334 g |
| 5SJ4235-8HG41 | 35 A | 35 A | 32.4 A | 3.4 W | 343 g |

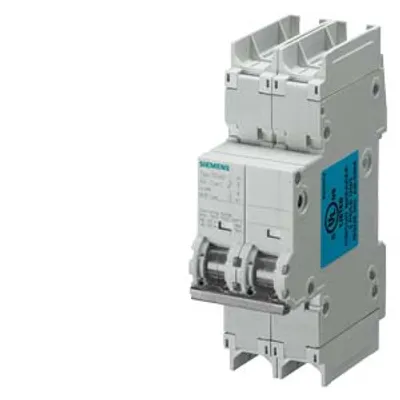

| 5SJ4230-8HG41 | 30 A | 30 A | 27.8 A | 3.2 W | 345 g |
| 5SL4220-8 | 20 A | 18.48 A | 15.92 A | 1.6 W | 309 g |
| 5SL4506-8 | 6 A | 5.68 A | 5.17 A | 1.4 W | 305 g |
| 5SL4506-6 | 6 A | 5.76 A | 5.37 A | 1.9 W | 306 g |
| 5SL4540-6 | 40 A | 37.89 A | 34.47 A | 3.4 W | 316 g |

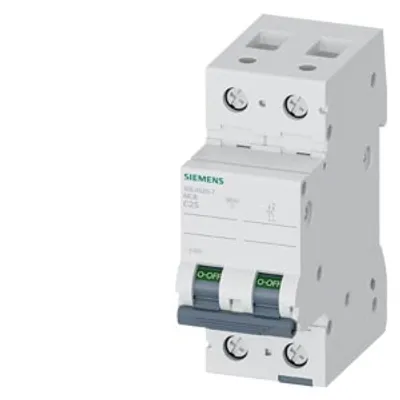

| 5SL4525-7 | 25 A | 23.68 A | 21.54 A | 2.3 W | 310 g |
| 5SL4501-6 | 1 A | 0.96 A | 0.9 A | 2 W | 304 g |
Common to all listed parts
| mechanical service life (operating cycles) typical | 10 000 |
| overvoltage category | 3 |
| switching capacity current — according to EN 60898 rated value | 10 kA |
| product feature touch protection | Yes |
| product feature halogen-free | Yes |
| product feature sealable | Yes |
| product feature silicon-free | Yes |
| product extension installable supplementary devices | Yes |
