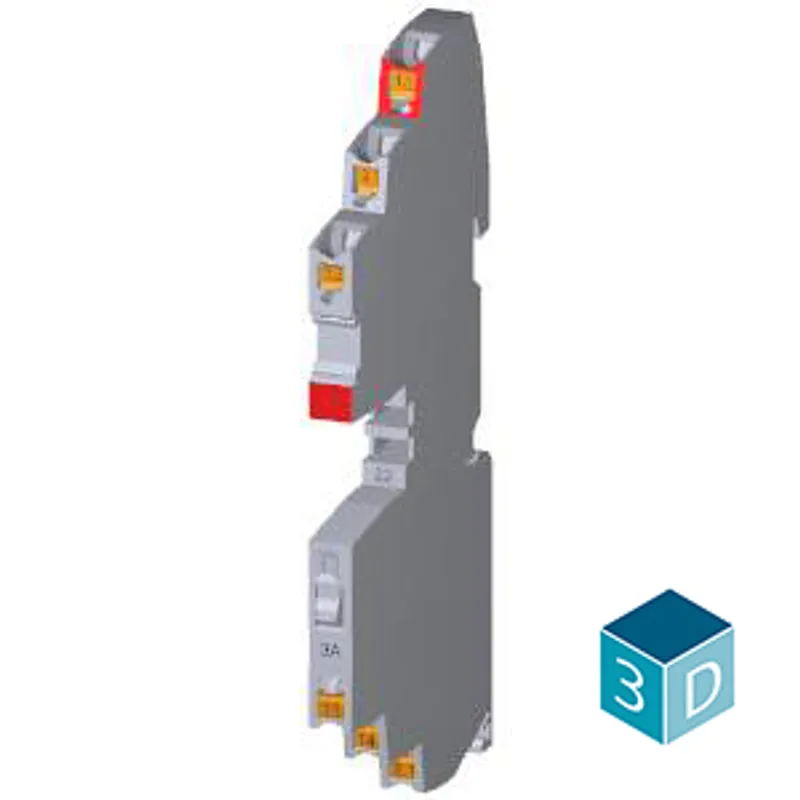

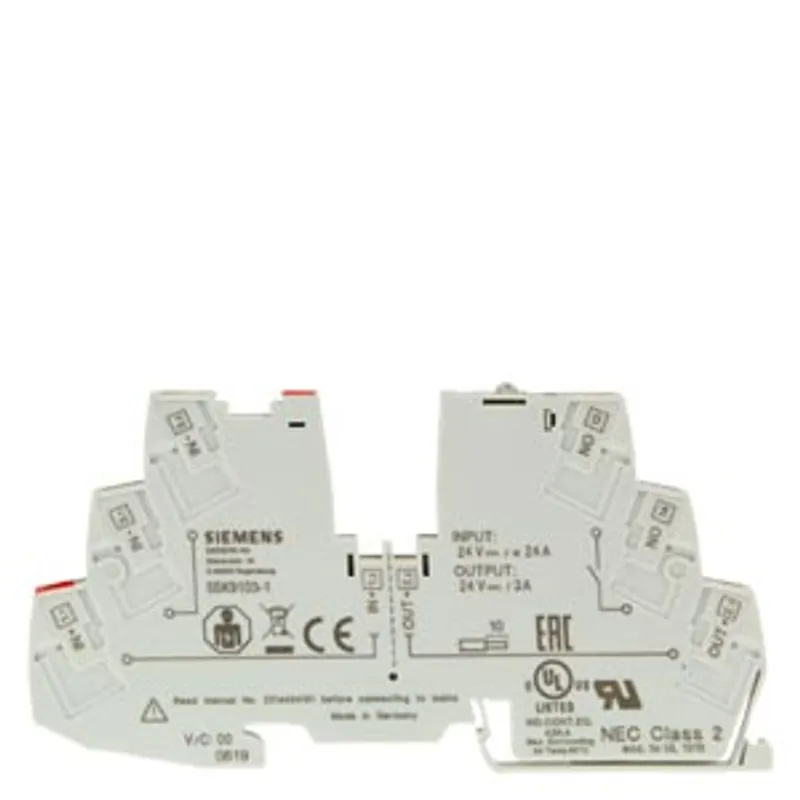

Siemens 5SK9108-1
Circuit breaker Equipment elektronisch, 8A, DC 24V 1 auxilliary switch
- MPN
- 5SK9108-1
- Category
- Basic Devices
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5SK9108-1?
circuit breaker Equipment elektronisch, 8A, DC 24V 1 auxilliary switch
Specifications
Model
| product brand name | SENTRON |
| product designation | Device protection switch electronic |
| design of the product | Assembly like a terminal |
General technical data
| number of poles | 1 |
| design of pole | 1P |
| overvoltage category | 3 |
Voltage
| type of voltage of the operating voltage | DC |
| operational current — at 40 °C rated value | 8 A |
Supply voltage
| supply voltage — at DC rated value | 24 V |
| operating voltage at DC rated value maximum | 30 V |
Protection class
| protection class IP | IP20 |
| suitability for operation | Infrastructure / Industry |
Product details
| product feature touch protection | Yes |
| product component — neutral conductor switching | No |
| product feature halogen-free | Yes |
| product extension installable supplementary devices | No |
Connections
| connectable conductor cross-section solid — minimum | 0.2 mm² |
| connectable conductor cross-section solid — maximum | 4 mm² |
| connectable conductor cross-section stranded — minimum | 0.2 mm² |
| connectable conductor cross-section stranded — maximum | 3 mm² |
| connectable conductor cross-section finely stranded with core end processing — minimum | 0.2 mm² |
| connectable conductor cross-section finely stranded with core end processing — maximum | 2.5 mm² |
| AWG number as coded connectable conductor cross section — minimum | 24 |
| AWG number as coded connectable conductor cross section — maximum | 12 |
| position of power supply cord | Any |

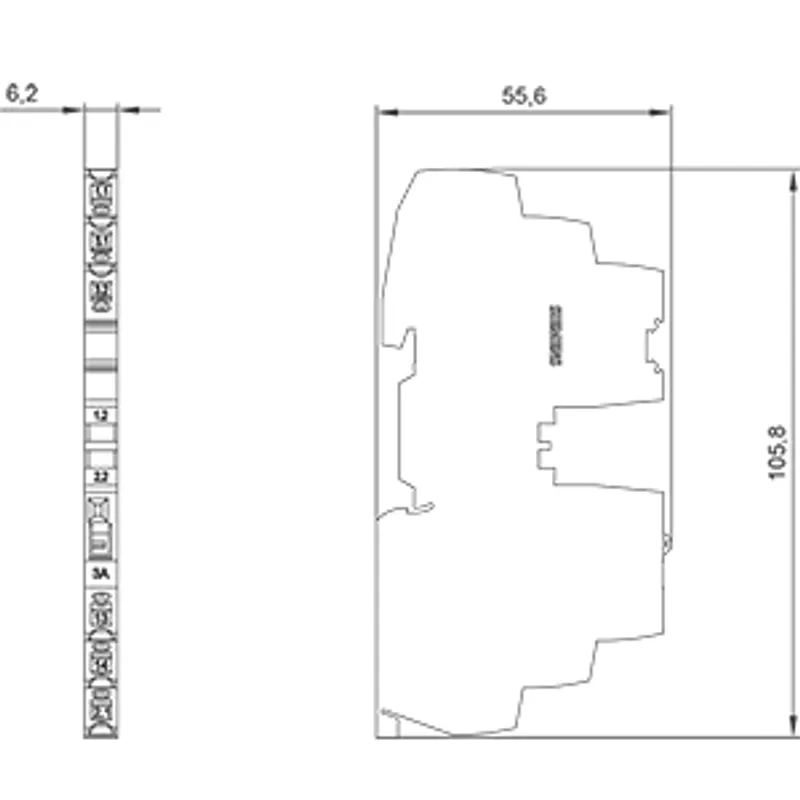

Mechanical Design
| height | 105.8 mm |
| width | 6.2 mm |
| depth | 55.6 mm |
| installation depth | 56 mm |
| number of modular width units | 1 |
| fastening method | Standard mounting rail TS 35 |
| mounting position | any |
| Net Weight | 45 g |
Environmental conditions
| influence of the surrounding temperature | max. 95% humidity |
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 60 °C |
