Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Operating voltage | Length | Mass | Plug connector: Body |
|---|
| V1S-W-YE2M-PVC-U | 456422 | max. 250 V AC/DC UB | 2 m L | 69.33 g | TPU, black |
| V1S-G-YE2M-PVC-U | 456421 | max. 250 V AC/DC UB | 2 m L | 67.04 g | TPU, black |
| V1S-G-YE5M-PVC-U | 456420 | max. 250 V AC/DC UB | 5 m L | 160 g | TPU, black |

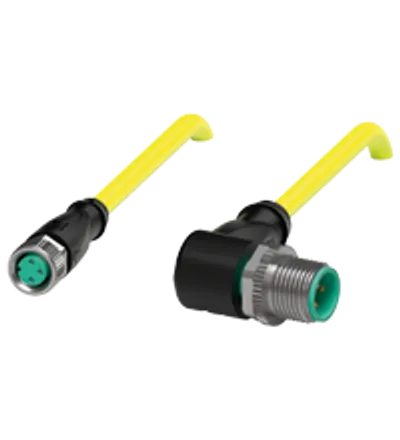

| V3-GM-YE0,5M-PVC-U-V11-W | 456701 | max. 48 V AC / 60 V DC UB | 0.5 m L | 27.97 g | TPU, black |
| V11-G-YE5M-PVC-U-V3-GM | 240400 | max. 48 V AC / 60 V DC UB | 5 m L | 140.33 g | TPU, black |
| V11-G-YE2M-PVC-U-V3-GM | 240123 | max. 48 V AC / 60 V DC UB | 2 m L | 70.75 g | TPU, black |

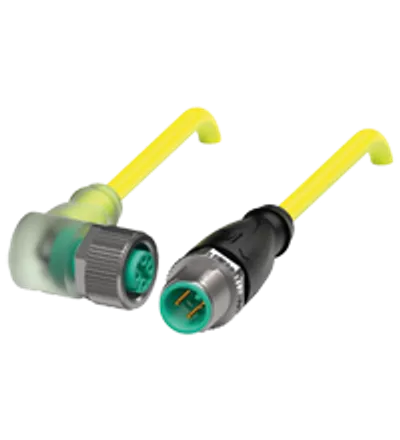

| V1-W-E2-YE2M-PVC-U-V1-G | 456587 | max. 24 V DC -20 % / +25 % UB | 2 m L | 75.67 g | TPU, transparent/black |

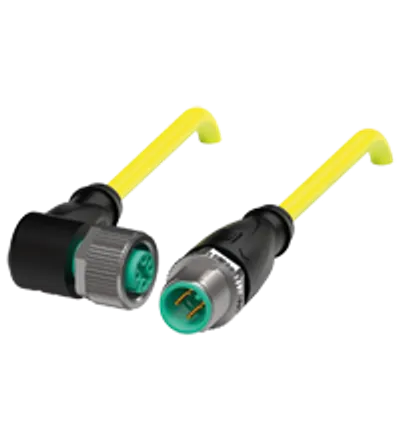

| V1-W-YE1M-PVC-U-V1-G | 456591 | max. 250 V AC/DC UB | 1 m L | 50.5 g | TPU, black |
| V1-W-YE10M-PVC-U-V1-G | 456603 | max. 250 V AC/DC UB | 10 m L | 310.72 g | TPU, black |
| V1-W-YE10M-PVC-U-V1-W | 456602 | max. 250 V AC/DC UB | 10 m L | 310 g | TPU, black |
| V1-W-YE5M-PVC-U-V1-W | 456584 | max. 250 V AC/DC UB | 5 m L | 168.45 g | TPU, black |
| V1-W-YE2M-PVC-U-V1-W | 456581 | max. 250 V AC/DC UB | 2 m L | 80.53 g | TPU, black |

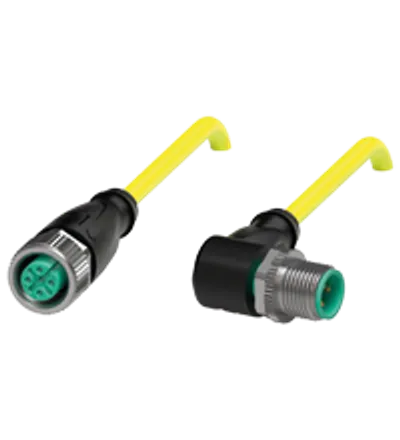

| V1-G-YE0,5M-PVC-U-V1-W | 456588 | max. 250 V AC/DC UB | 0.5 m L | 35.57 g | TPU, black |
| V1-G-YE10M-PVC-U-V1-G | 456601 | max. 250 V AC/DC UB | 10 m L | 315.94 g | TPU, black |
| V1-G-YE0,5M-PVC-U-V1-G | 456586 | max. 250 V AC/DC UB | 0.5 m L | 34.7 g | TPU, black |
| V1-G-YE1M-PVC-U-V1-G | 456580 | max. 250 V AC/DC UB | 1 m L | 49.48 g | TPU, black |
| V1-G-YE2M-PVC-U-V1-G | 456579 | max. 250 V AC/DC UB | 2 m L | 78.64 g | TPU, black |
| V1-G-YE5M-PVC-U-V1-G | 456578 | max. 250 V AC/DC UB | 5 m L | 175.2 g | TPU, black |
| V1-W-E0-YE2M-PVC-U | 456415 | max. 24 V DC -20 % / +25 % UB | 2 m L | 66.11 g | TPU, transparent |
| V1-W-E0-YE5M-PVC-U | 456413 | max. 24 V DC -20 % / +25 % UB | 5 m L | 149.33 g | TPU, transparent |

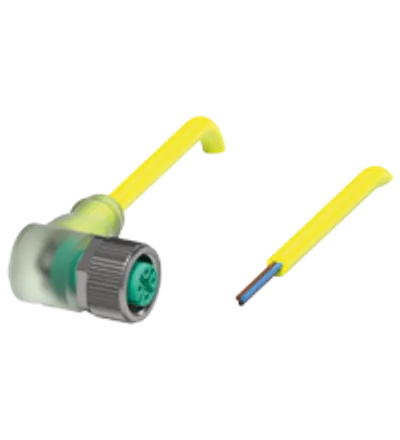

| V1-W-E2-YE2M-PVC-U | 456408 | max. 24 V DC -20 % / +25 % UB | 2 m L | 66.02 g | TPU, transparent |
| V1-W-E2-YE5M-PVC-U | 456407 | max. 24 V DC -20 % / +25 % UB | 5 m L | 147.39 g | TPU, transparent |
| V1-W-YE20M-PVC-U | 456412 | max. 250 V AC/DC UB | 20 m L | 596.5 g | TPU, black |
| V1-W-YE10M-PVC-U | 456410 | max. 250 V AC/DC UB | 10 m L | 300.47 g | TPU, black |
Common to all listed parts
| Connector 1: Locking | screw connection |
| Connector 1: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Operating current | max. 4 A IB |
| Degree of protection | EN 60529 |
| Flammability | UL 1581 , IEC 60332-1-2 |
| UL approval | AWM STYLE 2095 AWM I/II A/B 80°C 300V FT1 (cable) |
| UL File Number | E231213 |
