Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Connector 1: Number of pins | Length | Cable code | Mass |
|---|

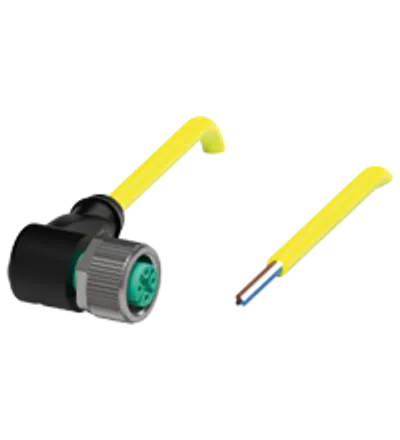

| V1-W-YE5M-PVC-U | 456404 | 4 | 5 m L | Li YY 4 x 0,34 | 157 g |
| V1-W-YE2M-PVC-U | 456403 | 4 | 2 m L | Li YY 4 x 0,34 | 69.5 g |
| V1-W-E8-BK1M-PUR-A-V1-G | 240784-0005 | 4 | 1 m L | Li F 9Y 11Y 4 x 0,34 | 50 g |

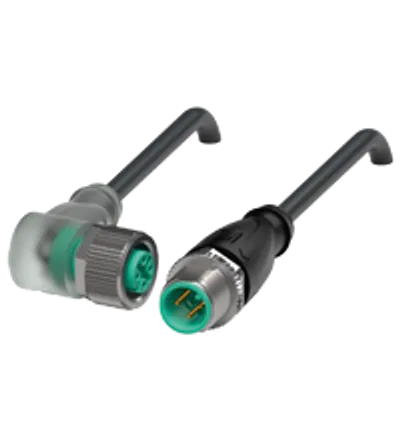

| V1-W-E2-BK0,6M-PUR-A-V1-G | 240780-0017 | 3 | 0.6 m L | Li F 9Y 11Y 3 x 0,34 | 42 g |
| V1-W-BK1,5M-PUR-A-V1-G | 240776-0016 | 4 | 1.5 m L | Li F 9Y 11Y 4 x 0,34 | 61.25 g |
| V19-W-BK15M-PUR-U | 239999-0027 | 8 | 15 m L | Li 9Y 11Y 8 x 0,25 | 709.5 g |
| V15-W-15M-PVC | 239999-0026 | 5 | 15 m L | Li Y YM 5 x 0,34 | 558.2 g |
| V1-G-BK10M-PUR-A | 239998-0029 | 4 | 10 m L | Li F 9Y 11Y 4 x 0,34 | 262.95 g |
| V1-G-BK5M-PUR-A | 239998-0028 | 4 | 5 m L | Li F 9Y 11Y 4 x 0,34 | 139.3 g |
| V1-W-E2-1,5M-PUR-V1-G | 240780-0016 | 3 | 1.5 m L | Li 9Y 11YM 3 x 0.34 | 61 g |
| V15-G-15M-PUR | 239998-0027 | 5 | 15 m L | Li 9Y 11YM 5 x 0.34 | 498 g |

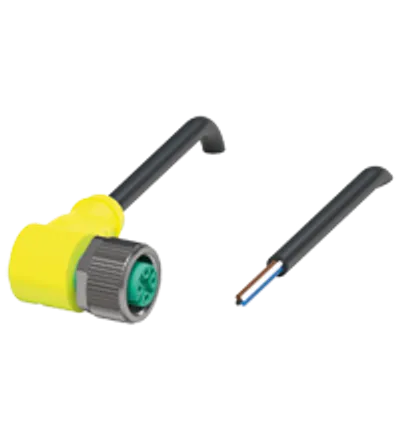

| V1-W-S-BK10M-PUR-A | 254644 | 4 | 10 m L | Li F 9Y 11Y 4 x 0,34 | 276 g |
| V1-W-S-BK5M-PUR-A | 254643 | 4 | 5 m L | Li F 9Y 11Y 4 x 0,34 | 92 g |
| V1-W-S-BK2M-PUR-A | 254642 | 4 | 2 m L | Li F 9Y 11Y 4 x 0,34 | 65.17 g |

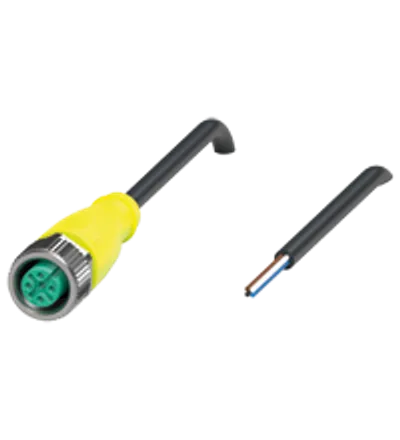

| V1-G-S-BK10M-PUR-A | 254641 | 4 | 10 m L | Li F 9Y 11Y 4 x 0,34 | 231.5 g |
| V1-G-S-BK5M-PUR-A | 254640 | 4 | 5 m L | Li F 9Y 11Y 4 x 0,34 | 140.35 g |
| V1-G-S-BK2M-PUR-A | 254639 | 4 | 2 m L | Li F 9Y 11Y 4 x 0,34 | 62.96 g |

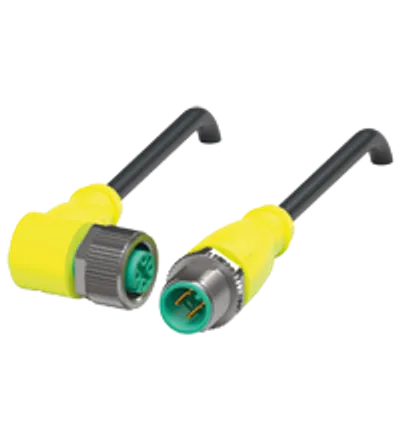

| V1-W-S-BK10M-PUR-A-V1-G | 253003 | 4 | 10 m L | Li F 9Y 11Y 4 x 0,34 | 278.5 g |
| V1-W-S-BK5M-PUR-A-V1-G | 253002 | 4 | 5 m L | Li F 9Y 11Y 4 x 0,34 | 155.39 g |
| V1-W-S-BK2M-PUR-A-V1-G | 253001 | 4 | 2 m L | Li F 9Y 11Y 4 x 0,34 | 74.5 g |
| V1-W-S-BK1M-PUR-A-V1-G | 257419 | 4 | 1 m L | Li F 9Y 11Y 4 x 0,34 | 58.53 g |
| V1-W-S-BK0,5M-PUR-A-V1-G | 257418 | 4 | 0.5 m L | Li F 9Y 11Y 4 x 0,34 | 35.3 g |
| V1-G-S-BK10M-PUR-A-V1-G | 253334 | 4 | 10 m L | Li F 9Y 11Y 4 x 0,34 | 272 g |
| V1-G-S-BK5M-PUR-A-V1-G | 253333 | 4 | 5 m L | Li F 9Y 11Y 4 x 0,34 | 155 g |
Common to all listed parts
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Locking | screw connection |
| Connector 1: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
