Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Operating voltage | Halogen-free | Length | Mass |
|---|---|---|---|---|---|

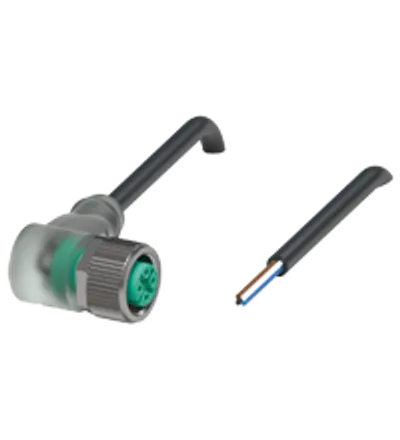

| V1-W-A2-BK20M-PUR-U | 223119 | max. 24 V DC -20 % / +25 % UB | IEC 60754-1 | 20 m L | 529.4 g |
| V1-W-A2-BK15M-PUR-U | 223118 | max. 24 V DC -20 % / +25 % UB | IEC 60754-1 | 15 m L | 393.92 g |

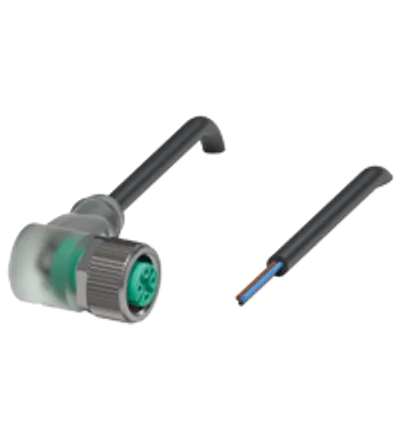

| V1-W-E2-BK20M-PUR-U | 223117 | max. 24 V DC -20 % / +25 % UB | IEC 60754-1 | 20 m L | 478.75 g |
| V1-W-E2-BK15M-PUR-U | 223116 | max. 24 V DC -20 % / +25 % UB | IEC 60754-1 | 15 m L | 380.08 g |
| V1-W-E2-BK10M-PUR-U | 223115 | max. 24 V DC -20 % / +25 % UB | IEC 60754-1 | 10 m L | 259 g |
| V1-W-E2-BK5M-PUR-U | 223062 | max. 24 V DC -20 % / +25 % UB | IEC 60754-1 | 5 m L | 134.5 g |

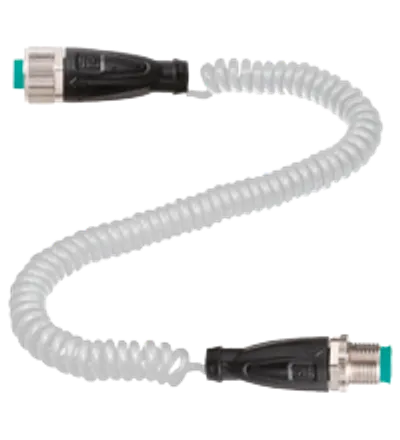

| V1-G-0,5/2,5M-PUR-V1-G | 213795 | max. 250 V AC/DC UB | IEC 60754-1 | 0.5 ... 2.5 m L | 180.6 g |

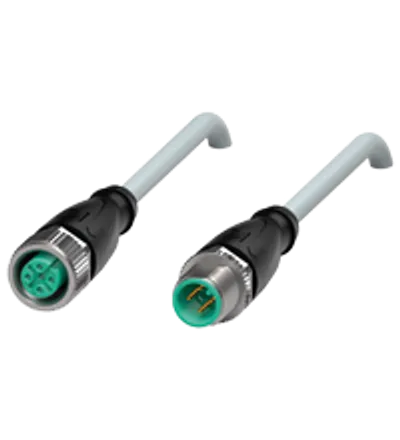

| V1-G-5M-PUR-ABG-V1-G | 203934 | max. 250 V AC/DC UB | DIN VDE 0472-815 DIN EN 50267-2-1 | 5 m L | 203.1 g |

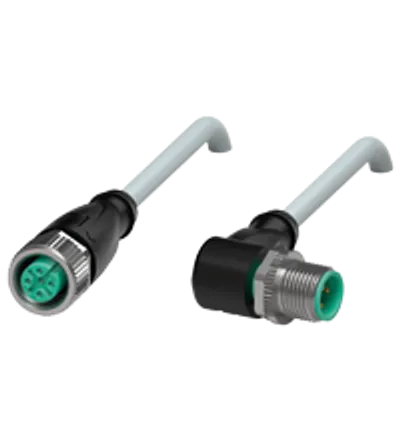

| V1-G-2M-PUR-ABG-V1-W | 202723 | max. 250 V AC/DC UB | DIN VDE 0472-815 DIN EN 50267-2-1 | 2 m L | 97.8 g |

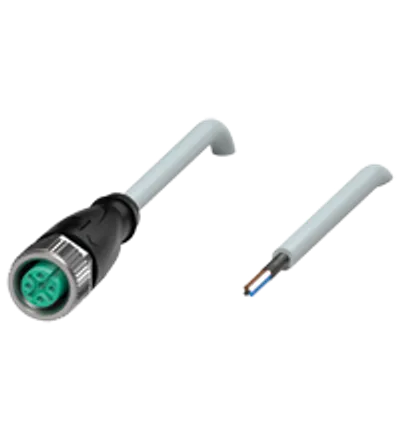

| V1-G-5M-PUR-ABG | 200762 | max. 250 V AC/DC UB | DIN VDE 0472-815 DIN EN 50267-2-1 | 5 m L | 185 g |
| V1-G-2M-PUR | 109434 | max. 250 V AC/DC UB | IEC 60754-1 | 2 m L | 70.8 g |

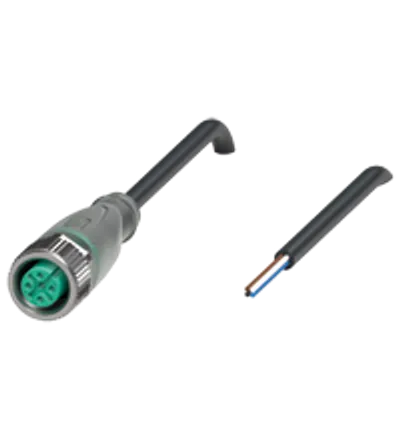

| V1-G-A2-BK*M-PUR-U | T196105 | max. 24 V DC -20 % / +25 % UB | IEC 60754-1 | see type code V*-[length]M-* L | — |

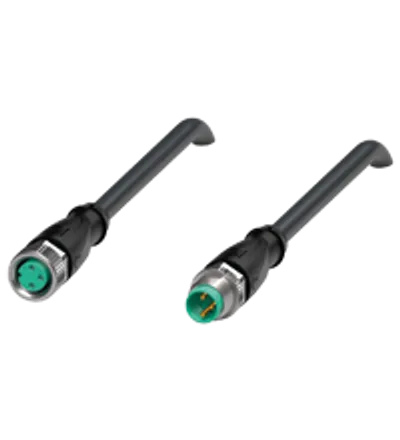

| V3-GM-BK2,6M-PUR-U-V3-GM-Y7016 | 70163749 | max. 48 V AC / 60 V DC UB | DIN VDE 0472-815 IEC 60754-1 | 2.6 m L | 73.92 g |
Common to all listed parts
| Connector 1: Connection | socket |
| Connector 1: Locking | screw connection |
| Connector 1: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Operating current | max. 4 A IB |
| Degree of protection | EN 60529 |
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
