Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sheath diameter | Length | Cable code | Mass |
|---|
| V1-G-S-BK2M-PUR-A-V1-G | 253332 | 4.3 mm | 2 m L | Li F 9Y 11Y 4 x 0,34 | 76 g |
| V1-G-S-BK0,5M-PUR-A-V1-G | 257416 | 4.3 mm | 0.5 m L | Li F 9Y 11Y 4 x 0,34 | 34.45 g |
| V1-G-S-BK1M-PUR-A-V1-G | 257417 | 4.3 mm | 1 m L | Li F 9Y 11Y 4 x 0,34 | 39.14 g |

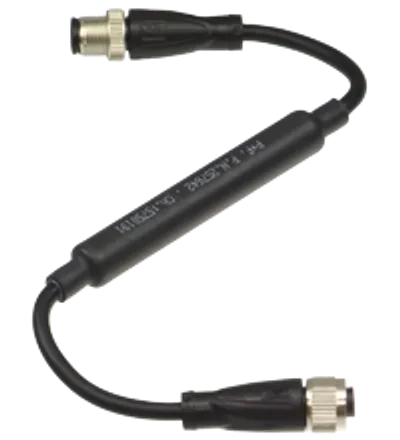

| V19-G-EMV-BK0,3M-PVC-V19-G | 257642 | ∅ 4.8 mm | 0.25 m L | — | — |
| V15-G-BK10M-PUR-A | 257415 | 4.7 mm | 10 m L | Li F 9Y 11Y 5 x 0,34 | 335 g |
| V15-G-BK15M-PUR-U | 239998-0026 | 4.8 mm | 15 m L | Li F 9Y 11Y 5 x 0,34 | 510 g |
| V15-G-BK5M-PUR-A | 257414 | 4.7 mm | 5 m L | Li F 9Y 11Y 5 x 0,34 | 172.15 g |

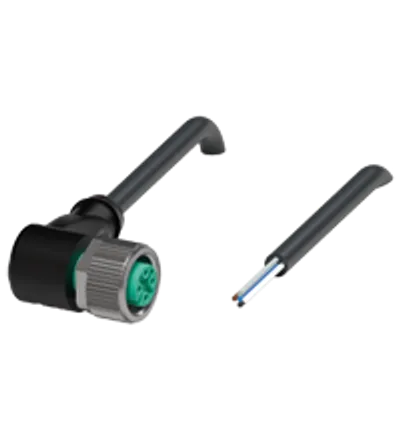

| V15-W-BK10M-PUR-A | 257413 | 4.7 mm | 10 m L | Li F 9Y 11Y 5 x 0,34 | 311.83 g |
| V15-W-BK5M-PUR-A | 257412 | 4.7 mm | 5 m L | Li F 9Y 11Y 5 x 0,34 | 172 g |
| V94-G-YE10M-STOOW | 912680 | ∅ 10.7 mm | 10 m L | — | 1656.4 g |

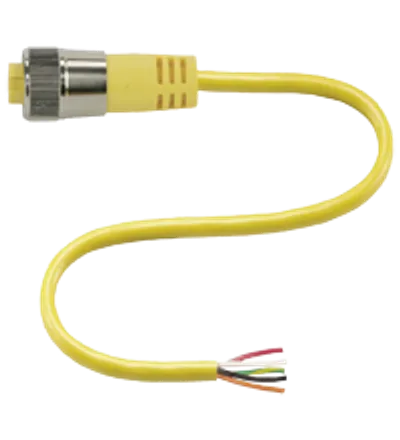

| V95-G-YE10M-STOOW | 914597 | ∅ 12.9 mm | 10 m L | — | 2276.4 g |
| V1-W-A2-20M-PUR-V1-G | 240780-0015 | 4.8 mm | 20 m L | Li 9Y 11YM 4 x 0.34 | 591.84 g |

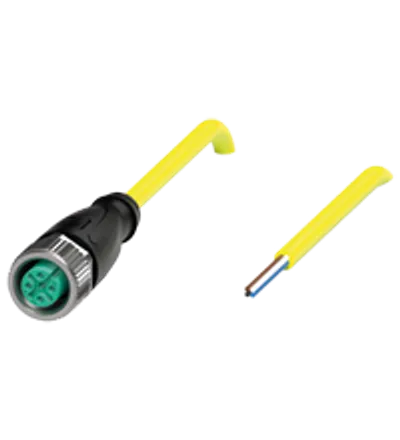

| V1-G-YE20M-PVC-U | 456411 | 4.3 mm | 20 m L | Li YY 4 x 0,34 | 596.4 g |
| V1-G-YE15M-PVC-U | 456406 | 4.3 mm | 15 m L | Li YY 4 x 0,34 | 445.4 g |
| V1-G-YE5M-PVC-U | 456401 | 4.3 mm | 5 m L | Li YY 4 x 0,34 | 151.68 g |
| V1-G-YE2M-PVC-U | 456402 | 4.3 mm | 2 m L | Li YY 4 x 0,34 | 68.93 g |
| V1-G-YE10M-PVC-U | 218752 | 4.3 mm | 10 m L | Li YY 4 x 0,34 | 304.47 g |

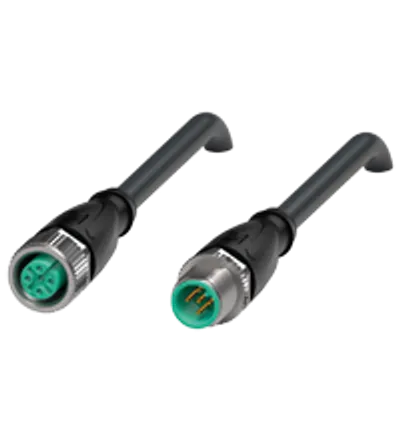

| V15-G-BK5M-PUR-U/0,75-V15-G | 240775-0017 | 6 mm | 5 m L | Li F 9Y 11Y 5 x 0,75 | 233.63 g |
| V15-W-BK30M-PUR-U/0,75 | 239999-0025 | 6 mm | 30 m L | Li F 9Y 11Y 5 x 0,75 | 1780 g |
| V15-G-80M-PUR | 239998-0025 | 4.8 mm | 80 m L | Li 9Y 11YM 5 x 0.34 | 2556 g |
| V15-G-50M-PUR | 239998-0024 | 4.8 mm | 50 m L | Li 9Y 11YM 5 x 0.34 | 1616.67 g |
| V15-GV4A-BK10M-PUR-U | 256042 | 4.8 mm | 10 m L | Li F 9Y 11Y 5 x 0,34 | 341 g |
| V1S-G-BK2M-PVC-U | 240771-0012 | 4.3 mm | 2 m L | Li YY 4 x 0,34 | 68.6 g |
| V15S-G-BK10M-PUR-U | 254563 | 4.8 mm | 10 m L | Li F 9Y 11Y 5 x 0,34 | 338 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
