Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sheath diameter | Sheath stripping force | Cable code | Mass |
|---|---|---|---|---|---|
| V19-G-BK1M-PVC-U-YSTE | 309157 | 6.3 mm | max. 50 N / 300 mm | Li Y YM 8 x 0,34 | 59.94 g |
| V3-GR-BK5M-PUR-U-V31-GM | 70155407 | 4.3 mm | max. 80 N / 300 mm | Li F 9Y 11Y 3 x 0,34 | 118.33 g |
| V15-W-A2-20M-PUR | 288053 | 4.8 mm | max. 60 N / 500 mm | Li 9Y 11YM 5 x 0.34 | 578.63 g |
| V19-G-1,8M-PUR-ABG-V19-G | 249538 | 6 mm | max. 100 N / 300 mm | Li 9Y V1 C V1 11Y 8 x 0,25 | 121.37 g |

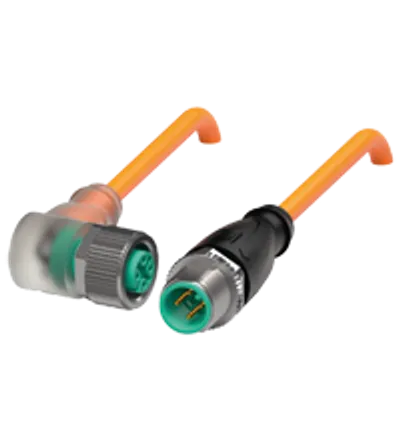

| V1-W-E8-OR1,5M-PUR-A-V1-G | 240784-100010 | 4.3 mm | max. 50 N / 300 mm | Li F 9Y 11Y 4 x 0,34 | 65 g |

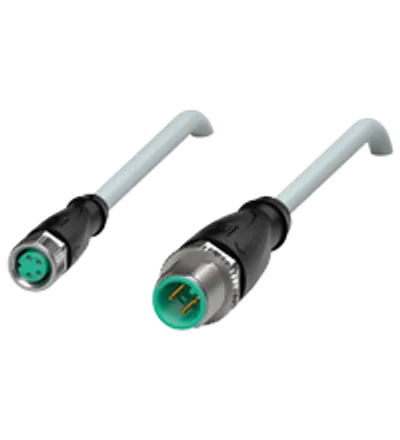

| V31-GM-5M-PUR-V11-G | 193621 | 4.3 mm | max. 80 N / 500 mm | Li 9Y 11Y 3 x 0,25 | 119.79 g |

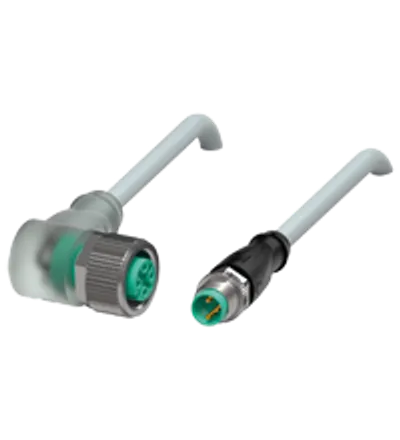

| V1-W-E2-2M-PUR-V3-G | 195676 | 4.3 mm | max. 80 N / 500 mm | Li 9Y 11Y 3 x 0,25 | 59.2 g |

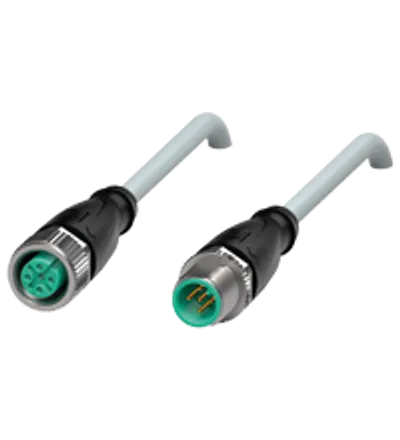

| V15-G-3M-PVC-V15-G | 70128170-100232 | 4.8 mm | max. 80 N / 300 mm | Li Y YM 5 x 0,34 | — |
| V15-G-4M-PVC-V15-G | 70128170-100231 | 4.8 mm | max. 80 N / 300 mm | Li Y YM 5 x 0,34 | — |
| V1-G-BK35M-PUR-U/ABG-V1-G | 70142171-100053 | 4.9 mm | max. 60 N / 100 mm | Li F 9Y C11Y 4 x 0,34 | — |

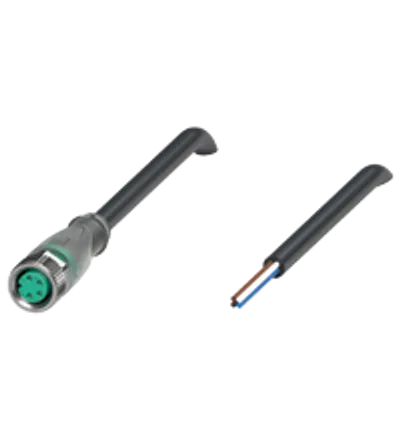

| V31-GM-A2-BK4M-PUR-U | 70137360-100022 | 4.3 mm | max. 80 N / 300 mm | Li 9Y 11Y 4 x 0.34 | — |

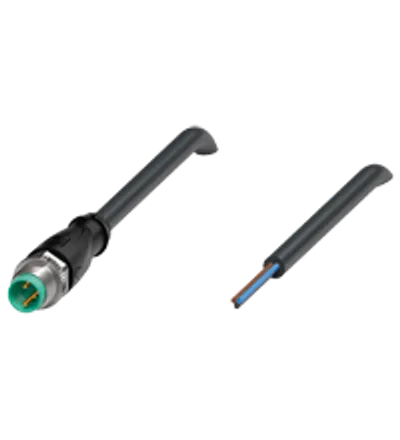

| V3S-GM-BK15M-PVC-U | 70124952-100047 | 4.3 mm | max. 50 N / 300 mm | Li YY 3 x 0,34 | 418 g |

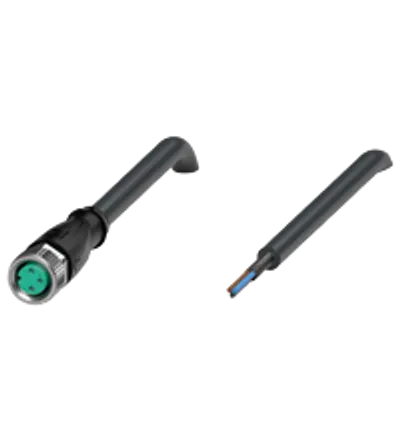

| V3-GM-BK5M-PUR-U/ABG | 70145901-100005 | 4.9 mm | max. 60 N / 100 mm | Li F 9Y C11Y 4 x 0,34 | — |

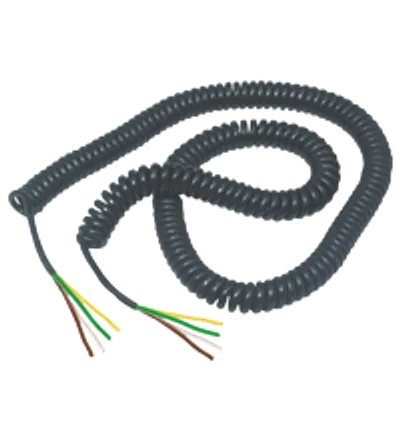

| SPK 4x0,25mm² BL900/4000/350 | 64314885 | 5.3 mm | — | Li F 11Y 11Y 4 x 0,25 | — |

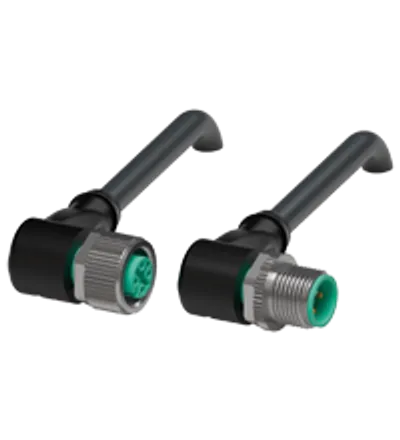

| V1-W-BK1M-PUR-O1S-V1-W | 70142171-100051 | 6 mm | max. 80 N / 300 mm | Li 9Y C11Y 4 x 0,50 | 81 g |
| CFP.ZAR-4.SP | 290172 | — | — | — | 80 g |
| CFP.ZBR.SP | 70105925 | — | — | — | 61 g |

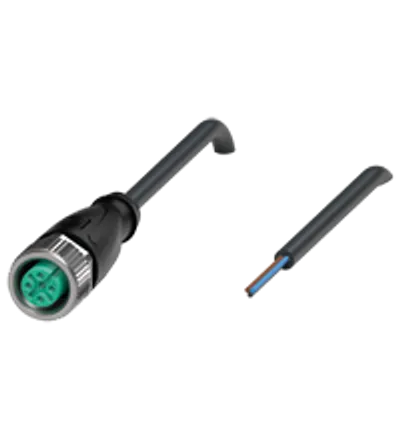

| V1-G-B-BK1,8M-PUR-U | 262060 | 4.3 mm | max. 80 N / 300 mm | Li F 9Y 11Y 3 x 0,34 | 55 g |
| CFP.ZA.SP | 290167 | — | — | — | 50 g |
| CFP.Z3.SP | 290164 | — | — | — | 8 g |
| P-F213-PROG-USB | 70170354 | — | — | — | — |

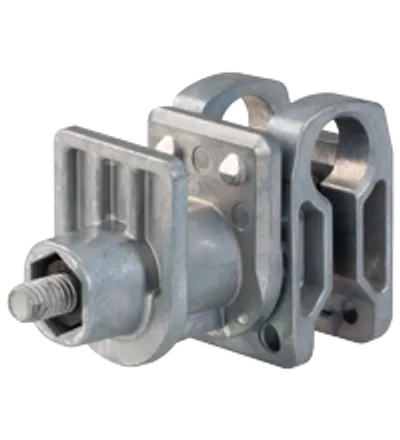

| OMH-R202-03-Quick-Clamp | 70172060 | — | — | — | approx. 135 g |
| ShieldScan Cover white | 70126085 | — | — | — | per 50 g |

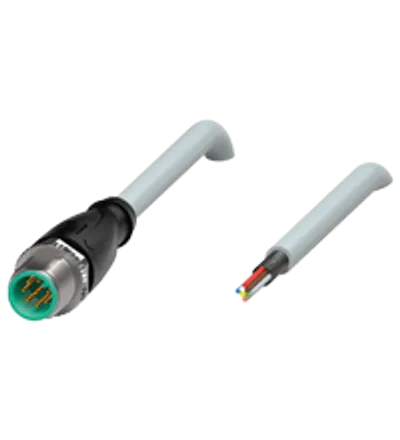

| V19S-G-1,5M-PUR-ABG | 70212582 | 6 mm | max. 100 N / 300 mm | Li 9Y V1 C V1 11Y 8 x 0,25 | 118 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
