Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sheath diameter | Length | Cable code | Mass |
|---|---|---|---|---|---|
| V15-G-BK10M-PUR-A-V15-G | 262654 | 4.7 mm | 10 m L | Li F 9Y 11Y 5 x 0,34 | 317.4 g |
| V15-G-BK20M-PUR-A-V15-G | 240775-0029 | 4.7 mm | 20 m L | Li F 9Y 11Y 5 x 0,34 | 602.17 g |
| V15-G-BK20M-PUR-U-V15-G | 240775-0028 | 4.8 mm | 20 m L | Li F 9Y 11Y 5 x 0,34 | 673 g |
| V15-G-BK15M-PUR-U-V15-G | 240775-0027 | 4.8 mm | 15 m L | Li F 9Y 11Y 5 x 0,34 | 510.45 g |
| V15-G-BK10M-PUR-U-V15-G | 240775-0026 | 4.8 mm | 10 m L | Li F 9Y 11Y 5 x 0,34 | 330.75 g |
| V15-G-BK6M-PUR-U-V15-G | 240775-0025 | 4.8 mm | 6 m L | Li F 9Y 11Y 5 x 0,34 | 216.94 g |
| V15-G-BK4M-PUR-U-V15-G | 240775-0024 | 4.8 mm | 4 m L | Li F 9Y 11Y 5 x 0,34 | 156.8 g |
| V1-G-E2/E3-5M-PUR | 240000-0002 | 4.8 mm | 5 m L | Li 9Y 11YM 3 x 0.34 | 141.7 g |
| V1-G-0,3M-PUR-V1-W | 240778-0009 | 4.8 mm | 0.3 m L | Li 9Y 11YM 4 x 0.34 | 29.43 g |
| V1-G-0,7M-PUR-V1-W | 240778-0008 | 4.8 mm | 0.7 m L | Li 9Y 11YM 4 x 0.34 | 43.81 g |
| V19S-G-BK10M-PUR-U | 240771-0016 | 6 mm | 10 m L | Li 9Y 11Y 8 x 0,25 | 461 g |
| V19S-G-BK5M-PUR-U | 240771-0015 | 6 mm | 5 m L | Li 9Y 11Y 8 x 0,25 | 239.58 g |
| V19S-G-BK2M-PUR-U | 240771-0014 | 6 mm | 2 m L | Li 9Y 11Y 8 x 0,25 | 101.6 g |
| V15-W-BK15M-PUR-U | 239999-0033 | 4.8 mm | 15 m L | Li F 9Y 11Y 5 x 0,34 | 507.01 g |
| V1-W-BK15M-PUR-A | 239999-0032 | 4.3 mm | 15 m L | Li F 9Y 11Y 4 x 0,34 | 381.75 g |
| V1-G-BK20M-PUR-A | 239998-0032 | 4.3 mm | 20 m L | Li F 9Y 11Y 4 x 0,34 | 542.84 g |
| V15-W-BK15M-PUR-U/0,75 | 239999-0031 | 6 mm | 15 m L | Li F 9Y 11Y 5 x 0,75 | 897 g |
| V11-W-BK25M-PUR-ABG | 251800 | 5 mm | 25 m L | Li Y 11YM 3 x 0.34 | 830.13 g |
| V11-W-BK10M-PUR-ABG | 239178 | 5 mm | 10 m L | Li Y 11YM 3 x 0.34 | 411.4 g |

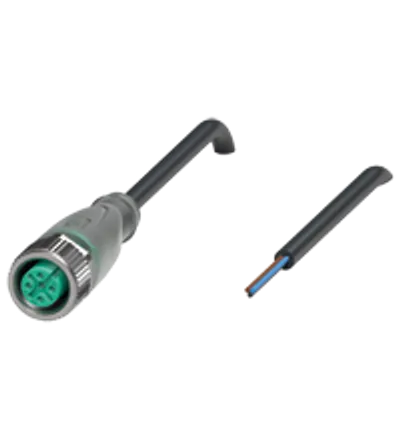

| V1-G-E2-BK15M-PUR-U | 240000-0001 | 4.3 mm | 15 m L | Li F 9Y 11Y 3 x 0,34 | 371.27 g |
| V3-GM-BK0,6M-PUR-U-V11-G | 224651 | 4.3 mm | 0.6 m L | Li F 9Y 11Y 3 x 0,34 | 29 g |
| V19-W-BK10M-PUR-U/ABG | 456514 | 6 mm | 10 m L | Li 9Y C 11Y 8 x 0,25 | 549.75 g |
| V15-G-BK80M-PUR-U | 239998-0031 | 4.8 mm | 80 m L | Li F 9Y 11Y 5 x 0,34 | 2687 g |
| V1-W-BK20M-PUR-A-V1-G | 240776-0021 | 4.3 mm | 20 m L | Li F 9Y 11Y 4 x 0,34 | 530 g |
Common to all listed parts
| Connector 1: Locking | screw connection |
| Connector 1: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Degree of protection | EN 60529 |
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Pollution degree | 3 |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
