Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Core construction | Length | Cable code | Mass |
|---|---|---|---|---|---|
| V1-G-OR5M-POC-V1-W | 240778-100029 | 19 x 0.16 mm ∅ | 5 m L | Li 7Y 41X 4 x 0,34 | 208 g |
| V1-G-OR3M-POC-V1-W | 240778-100028 | 19 x 0.16 mm ∅ | 3 m L | Li 7Y 41X 4 x 0,34 | 135 g |

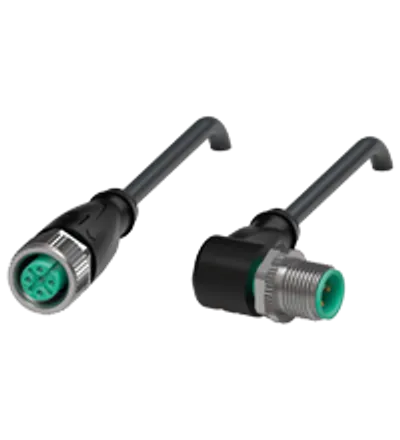

| V1-G-BK5M-PUR-A-V1-W | 240778-100013 | 42 x 0.1 mm ∅ | 5 m L | Li F 9Y 11Y 4 x 0,34 | 159.02 g |
| V1-G-BK5M-PUR-O1-V1-G | 240775-100022 | 28 x 0.15 mm ∅ 1 x symmetrically twisted | 5 m L | Li 9Y 11Y 4 x 0,50 | 198.3 g |
| V1-G-BK10M-PUR-U-V1-W | 240778-100024 | 42 x 0.1 mm ∅ | 10 m L | Li 9Y 11Y 4 x 0.34 | 288.82 g |
| V1-G-BK0,6M-PUR-U-V1-W | 240778-100021 | 42 x 0.1 mm ∅ | 0.6 m L | Li 9Y 11Y 4 x 0.34 | 41 g |
| V1-G-A2-10M-PUR-V1-G | 240779-100011 | 19 x 0.15 mm ∅ | 10 m L | Li 9Y 11YM 4 x 0.34 | 243 g |
| V1-G-A2-5M-PUR-V1-G | 240779-100010 | 19 x 0.15 mm ∅ | 5 m L | Li 9Y 11YM 4 x 0.34 | 163 g |
| V19-G-BK0,6M-PUR-U-V19-G | 240775-100039 | 32 x 0.1 mm ∅ | 0.6 m L | Li 9Y 11Y 8 x 0,25 | 50.58 g |
| V19-W-BK5M-PUR-U/ABG-V19-W | 240789-100004 | 32 x 0.1 mm ∅ | 5 m L | Li 9Y C 11Y 8 x 0,25 | 301 g |
| V19-W-BK2M-PUR-U/ABG-V19-W | 240789-100003 | 32 x 0.1 mm ∅ | 2 m L | Li 9Y C 11Y 8 x 0,25 | 0.2 g |
| V19-W-BK10M-PUR-U-V19-W | 240777-100023 | 32 x 0.1 mm ∅ | 10 m L | Li 9Y 11Y 8 x 0,25 | 482 g |
| V19-W-BK5M-PUR-U-V19-W | 240777-100022 | 32 x 0.1 mm ∅ | 5 m L | Li 9Y 11Y 8 x 0,25 | 258 g |

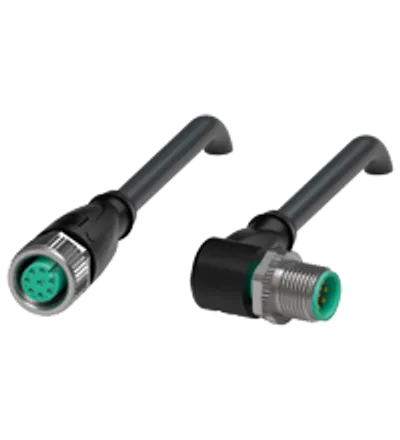

| V19-G-BK5M-PUR-U-V19-W | 240778-100035 | 32 x 0.1 mm ∅ | 5 m L | Li 9Y 11Y 8 x 0,25 | 261 g |
| V19-W-BK10M-PUR-U-V19-G | 240776-100030 | 32 x 0.1 mm ∅ | 10 m L | Li 9Y 11Y 8 x 0,25 | 488 g |
| V19-W-BK5M-PUR-U-V19-G | 240776-100029 | 32 x 0.1 mm ∅ | 5 m L | Li 9Y 11Y 8 x 0,25 | 259 g |
| V15-W-BK10M-PUR-U-V15-W | 240777-100020 | 42 x 0.1 mm ∅ | 10 m L | Li F 9Y 11Y 5 x 0,34 | 360 g |
| V15-W-BK5M-PUR-U-V15-W | 240777-100019 | 42 x 0.1 mm ∅ | 5 m L | Li F 9Y 11Y 5 x 0,34 | 192.5 g |
| V15-W-BK2M-PUR-U-V15-W | 240777-100018 | 42 x 0.1 mm ∅ | 2 m L | Li F 9Y 11Y 5 x 0,34 | 93 g |
| V15-W-BK3M-PUR-U-V15-G | 240776-100027 | 42 x 0.1 mm ∅ | 3 m L | Li F 9Y 11Y 5 x 0,34 | 126 g |
| V15-W-BK1M-PUR-U-V15-G | 240776-100026 | 42 x 0.1 mm ∅ | 1 m L | Li F 9Y 11Y 5 x 0,34 | 59 g |
| V19-W-BK2M-PUR-U-V19-W | 240777-100021 | 32 x 0.1 mm ∅ | 2 m L | Li 9Y 11Y 8 x 0,25 | 121 g |
| V19-G-BK2M-PUR-U-V19-W | 240778-100034 | 32 x 0.1 mm ∅ | 2 m L | Li 9Y 11Y 8 x 0,25 | 120 g |
| V15-G-BK7,5M-PUR-A-V15-G | 240775-100044 | 42 x 0.1 mm ∅ | 7.5 m L | Li F 9Y 11Y 5 x 0,34 | 250 g |
Common to all listed parts
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Locking | screw connection |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | plug |
| Connector 2: Construction type | M12 |
| Connector 2: Locking | screw connection |
| Connector 2: Coding | A-coded |
