MPN	Order code (Pepperl+Fuchs part number)	Sheath stripping force	Length	Cable code	Mass
V3-GR-2M-PUR	317129	max. 80 N / 500 mm	2 m L	Li 9Y 11Y 3 x 0,25	44.68 g
V3-GR-30M-PUR	317130	max. 80 N / 500 mm	30 m L	Li 9Y 11Y 3 x 0,25	632 g
V3-GR-10M-PUR	317127	max. 80 N / 500 mm	10 m L	Li 9Y 11Y 3 x 0,25	212.8 g
V3-GR-20M-PUR	317128	max. 80 N / 500 mm	20 m L	Li 9Y 11Y 3 x 0,25	379 g
V3-GM-BK2M-PUR-A-V31-GM	320752	max. 80 N / 300 mm	2 m L	Li F 9Y 11Y 3 x 0,34	57.87 g
V31-WM-BK5M-PUR-A-V1-G	314713	max. 80 N / 300 mm	5 m L	Li F 9Y 11Y 4 x 0,34	144.9 g
V31-WM-BK3M-PUR-A-V1-G	314712	max. 80 N / 300 mm	3 m L	Li F 9Y 11Y 4 x 0,34	87.4 g
V31-WM-BK2M-PUR-A-V1-G	314710	max. 80 N / 300 mm	2 m L	Li F 9Y 11Y 4 x 0,34	67 g
V31-WM-BK1,5M-PUR-A-V1-G	314709	max. 80 N / 300 mm	1.5 m L	Li F 9Y 11Y 4 x 0,34	54.27 g
V31-WM-BK1M-PUR-A-V1-G	314708	max. 80 N / 300 mm	1 m L	Li F 9Y 11Y 4 x 0,34	41.02 g
V31-WM-BK0,6M-PUR-A-V1-G	314707	max. 80 N / 300 mm	0.6 m L	Li F 9Y 11Y 4 x 0,34	30.58 g
V31-WM-BK2,5M-PUR-A-V1-G	314700	max. 80 N / 300 mm	2.5 m L	Li F 9Y 11Y 4 x 0,34	80.7 g
V3-GM-BK0,6M-PVC-U-V11-G	240797-100006	max. 50 N / 300 mm	0.6 m L	Li YY 3 x 0,34	30.31 g
V3-GM-BK1M-PVC-U-V11-G	240797-100004	max. 50 N / 300 mm	1 m L	Li YY 3 x 0,34	46 g
V3-GM-BK5M-PVC-U-V11-G	240797-100009	max. 50 N / 300 mm	5 m L	Li YY 3 x 0,34	155 g
V31-WM-0,3M-PUR-V1-G	240798-100005	max. 60 N / 500 mm	0.3 m L	Li 9Y 11Y 4 x 0,25	23.05 g
V3-WM-BK1,5M-PUR-U-V11-G	240798-100001	max. 80 N / 300 mm	1.5 m L	Li F 9Y 11Y 3 x 0,34	51.07 g
V3-WM-BK0,6M-PUR-U-V11-G	240798-100000	max. 80 N / 300 mm	0.6 m L	Li F 9Y 11Y 3 x 0,34	28.7 g
V31-WM-1,5M-PUR-V1-G	240798-0002	max. 60 N / 500 mm	1.5 m L	Li 9Y 11Y 4 x 0,25	57 g

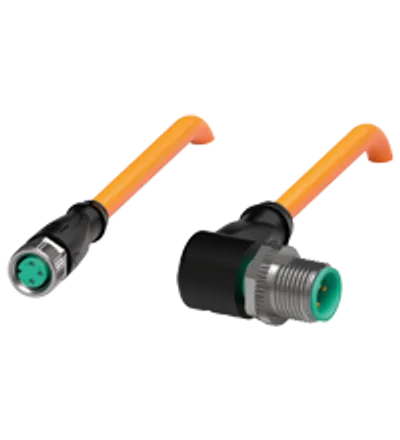

V3-GM-OR1M-POC-V11-W	249492	max. 50 N / 300 mm	1 m L	Li 7Y 41X 4 x 0,34	51.36 g
V3-GM-OR2M-POC-V11-W	245218	max. 50 N / 300 mm	2 m L	Li 7Y 41X 4 x 0,34	87.2 g
V3-WM-BK3M-PUR-U-V11-G	456710	max. 80 N / 300 mm	3 m L	Li F 9Y 11Y 3 x 0,34	87.11 g
V3-WM-BK2M-PUR-U-V11-G	456709	max. 80 N / 300 mm	2 m L	Li F 9Y 11Y 3 x 0,34	63.02 g
V31-GM-BK5M-PUR-A-V1-G	314706	max. 80 N / 300 mm	5 m L	Li F 9Y 11Y 4 x 0,34	146 g

Common to all listed parts

Connector 1: Connection	socket
Connector 1: Construction type	M8
Connector 1: Coding	A-coded
Lifecycle	Active (current Pepperl+Fuchs product)
Operating current	max. 4 A IB
Degree of protection	EN 60529
Lead-free	RoHS directive 2011/65/EU
Pollution degree	3
