Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Core construction | Length | Cable code | Mass |
|---|---|---|---|---|---|
| V15-G-BK0,3M-PUR-A-V15-G | 240775-100043 | 42 x 0.1 mm ∅ | 0.3 m L | Li F 9Y 11Y 5 x 0,34 | 31 g |
| V15-G-BK0,6M-PUR-A-V15-G | 240775-100042 | 42 x 0.1 mm ∅ | 0.6 m L | Li F 9Y 11Y 5 x 0,34 | 40.28 g |
| V15-G-BK2M-PUR-A-V15-G | 240775-100041 | 42 x 0.1 mm ∅ | 2 m L | Li F 9Y 11Y 5 x 0,34 | 85.86 g |
| V15-G-BK1M-PUR-A-V15-G | 240775-100033 | 42 x 0.1 mm ∅ | 1 m L | Li F 9Y 11Y 5 x 0,34 | 54.83 g |
| V15-G-BK5M-PUR-U-V15-W | 240778-100032 | 42 x 0.1 mm ∅ | 5 m L | Li F 9Y 11Y 5 x 0,34 | 192 g |
| V15-G-BK0,6M-PUR-U-V15-G | 240775-100021 | 42 x 0.1 mm ∅ | 0.6 m L | Li F 9Y 11Y 5 x 0,34 | 40.7 g |

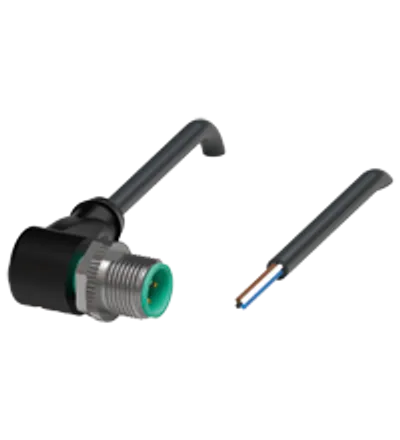

| V1S-W-BK5M-PUR-U | 240772-100016 | 42 x 0.1 mm ∅ | 5 m L | Li 9Y 11Y 4 x 0.34 | 141 g |
| V19S-W-BK5M-PUR-U | 240772-100021 | 32 x 0.1 mm ∅ | 5 m L | Li 9Y 11Y 8 x 0,25 | 242 g |
| V1S-G-BK3M-PVC-U | 240771-100022 | 19 x 0.15 mm ∅ | 3 m L | Li YY 4 x 0,34 | 97.88 g |
| V15S-G-BK3M-PUR-O2/CAN | 310003 | 19 x 0.15 mm ∅ twisted pairs | 3 m L | Li 9Y C11Y 2 x 2 x 0,34 | 173 g |
| V1S-G-BK2M-PUR-A | 240771-100018 | 42 x 0.1 mm ∅ | 2 m L | Li F 9Y 11Y 4 x 0,34 | 57 g |
| V1S-G-BK10M-PUR-A | 240771-100019 | 42 x 0.1 mm ∅ | 10 m L | Li F 9Y 11Y 4 x 0,34 | 266.32 g |
| V15S-G-BK5M-PUR-U | 240771-100014 | 42 x 0.1 mm ∅ | 5 m L | Li F 9Y 11Y 5 x 0,34 | 176 g |
| V15S-G-BK2M-PUR-U | 240771-100012 | 42 x 0.1 mm ∅ | 2 m L | Li F 9Y 11Y 5 x 0,34 | 76 g |
| V15SB-G-15M-PUR-ABG | 219109 | 19 x 0.13 mm ∅ | 15 m L | — | 890 g |
| V15SB-G-5M-PUR-ABG | 219107 | 19 x 0.13 mm ∅ | 5 m L | — | 353 g |
| V1S-W-1,8M-PUR-ABG | 215461 | 19 x 0.15 mm ∅ | 1.8 m L | Li 9Y 11YM 4 x 0.34 | 76.32 g |
| V1S-G-10M-PUR-ABG0 | 207269 | 19 x 0.15 mm ∅ | 10 m L | Li 9Y 11YM 4 x 0.34 | 353.25 g |
| V3-WM-BK5M-PUR-A | 316958 | 42 x 0.1 mm ∅ | 5 m L | Li F 9Y 11Y 3 x 0,34 | 125.3 g |
| V3-GM-BK5M-PUR-A | 316957 | 42 x 0.1 mm ∅ | 5 m L | Li F 9Y 11Y 3 x 0,34 | 124.9 g |
| V1-G-BK5M-PUR-O1 | 239998-100029 | 28 x 0.15 mm ∅ 1 x symmetrically twisted | 5 m L | Li 9Y 11Y 4 x 0,50 | 185.67 g |
| V19-W-BK3M-PUR-U | 239999-100028 | 32 x 0.1 mm ∅ | 3 m L | Li 9Y 11Y 8 x 0,25 | 150.6 g |
| V1-WV4A-E2-2M-PUR | 221454 | 19 x 0.15 mm ∅ | 2 m L | Li 9Y 11YM 3 x 0.34 | 66.45 g |
| V1-W-BK5M-PUR-O1 | 239999-100024 | 28 x 0.15 mm ∅ 1 x symmetrically twisted | 5 m L | Li 9Y 11Y 4 x 0,50 | 188.41 g |
Common to all listed parts
| Connector 1: Locking | screw connection |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Degree of protection | EN 60529 |
| Pollution degree | 3 |
| Plug connector: Loosening protection | integrated |
| Plug connector: Mating cycles | min. 100 |
| Cable: Cores | bare copper (Cu) |
