Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Mass | Sheath diameter | Length | Cable code |
|---|---|---|---|---|---|

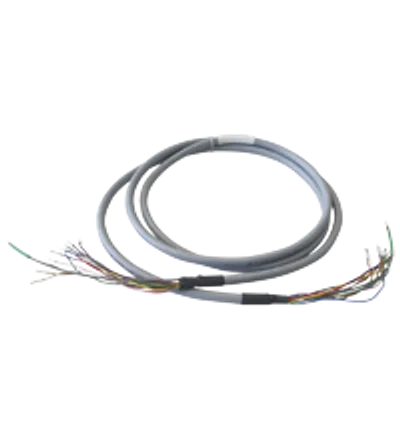

| FB9274-300 | 238130 | 530 g | — | — | — |
| DT2S-G-BK2M-PUR/0,75-DT2P-G | 70137449 | 82.67 g | 5 mm | 2 m L | Li 9Y 11Y 2 x 0.75 |
| V1-G-BK5M-PUR-U/ABG | 240004-100032 | 200.14 g | 4.9 mm | 5 m L | Li F 9Y C11Y 4 x 0,34 |
| V1-G-BK2M-PUR-U/ABG | 240004-100031 | 88 g | 4.9 mm | 2 m L | Li F 9Y C11Y 4 x 0,34 |
| V1-G-BK2M-PUR-U/ABG-V1-G | 240787-100015 | 100.89 g | 4.9 mm | 2 m L | Li F 9Y C11Y 4 x 0,34 |
| V11-G-1,5M-PUR-V3-GM | 240795-100011 | 56.5 g | 4.8 mm | 1.5 m L | Li 9Y 11YM 3 x 0.34 |
| V31-GM-BK1,2M-PUR-U-V3-GM | 70135628 | 40 g | 4.3 mm | 1.2 m L | Li F 9Y 11Y 3 x 0,34 |
| V1-G-BK50M-PUR-O1 | 239998-100057 | 1795 g | 4.8 mm | 50 m L | Li 9Y 11Y 4 x 0,50 |
| V1-G-BK40M-PUR-O1 | 239998-100056 | 1417 g | 4.8 mm | 40 m L | Li 9Y 11Y 4 x 0,50 |
| V1-G-BK30M-PUR-O1 | 239998-100035 | 1081.67 g | 4.8 mm | 30 m L | Li 9Y 11Y 4 x 0,50 |
| V1-G-BK20M-PUR-O1 | 239998-100044 | 702.5 g | 4.8 mm | 20 m L | Li 9Y 11Y 4 x 0,50 |
| V1-G-BK15M-PUR-O1 | 239998-100043 | 483 g | 4.8 mm | 15 m L | Li 9Y 11Y 4 x 0,50 |
| V1-G-BK20M-PUR-O1S-V1-W | 240790-100014 | 1080 g | 6 mm | 20 m L | Li 9Y C11Y 4 x 0,50 |
| V1-G-BK15M-PUR-O1S-V1-W | 240790-100013 | 835 g | 6 mm | 15 m L | Li 9Y C11Y 4 x 0,50 |
| V1-G-BK7M-PUR-O1S-V1-W | 240790-100003 | 404.6 g | 6 mm | 7 m L | Li 9Y C11Y 4 x 0,50 |
| V1-G-BK5,5M-PUR-O1S-V1-W | 240790-100016 | 333.8 g | 6 mm | 5.5 m L | Li 9Y C11Y 4 x 0,50 |

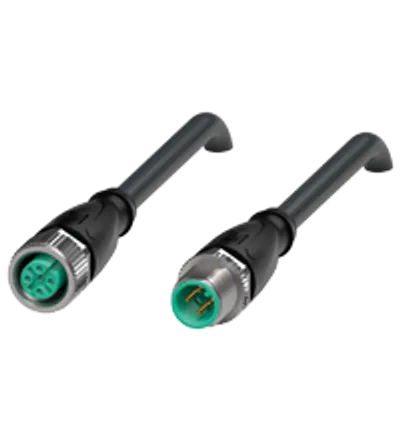

| V1-G-BK15M-PUR-O1S-V1-G | 240787-100010 | 815 g | 6 mm | 15 m L | Li 9Y C11Y 4 x 0,50 |
| V1-W-BK1M-PVC-U | 239999-100020 | 40.48 g | 4.3 mm | 1 m L | Li YY 4 x 0,34 |
| V1-G-BK5M-PUR-U-V31-GM | 240795-100006 | 144 g | 4.3 mm | 5 m L | Li 9Y 11Y 4 x 0.34 |
| V11S-G-BK1.0M-PUR-Y915367 | 915367 | 22.3 g | ∅ 4.3 mm | 1 m L | Li 9Y 11Y 3 x 0.34 |
| V1S-G-5M-PUR-ABG-SUBD9 | 288630 | 235.94 g | 4.8 mm | 5 m L | — |

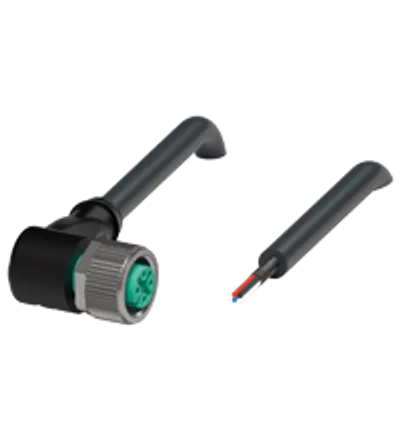

| V15-W-BK5M-PUR-O2/CAN | 70134459 | 259.5 g | 6 mm | 5 m L | Li 9Y C11Y 2 x 2 x 0,34 |
| V3S-GM-BK10M-PVC-U | 240807-100014 | 228 g | 4.3 mm | 10 m L | Li YY 3 x 0,34 |
| V3S-GM-BK5M-PVC-U | 240807-100013 | 141.4 g | 4.3 mm | 5 m L | Li YY 3 x 0,34 |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
