3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | Net Weight | operational current — at 55 °C | operational current — at 60 °C |
|---|---|---|---|---|---|

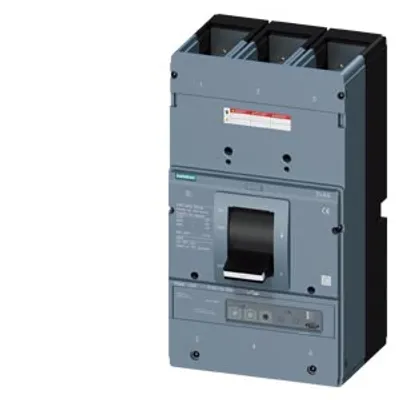

| 3VA6712-6HL31-2AA0 | HNAE | ETU320 | 25.63 kg | 1 200 A | 1 200 A |
| 3VA6712-6HL31-0AA0 | HNAE | ETU320 | 25.86 kg | 1 200 A | 1 200 A |
| 3VA6712-5KT31-2AA0 | MNAE | ETU856 | 3.133 kg | 1 200 A | 1 200 A |

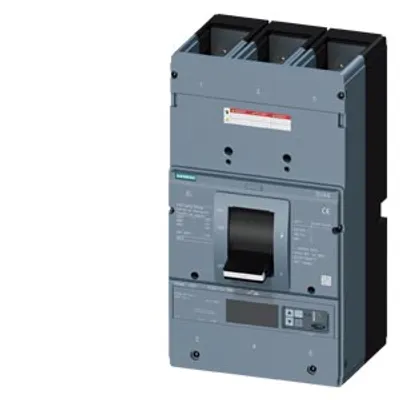

| 3VA6712-5KT31-0AA0 | MNAE | ETU856 | 25.7 kg | 1 200 A | 1 200 A |
| 3VA6712-5KQ31-2AA0 | MNAE | ETU860 | 3.133 kg | 1 200 A | 1 200 A |

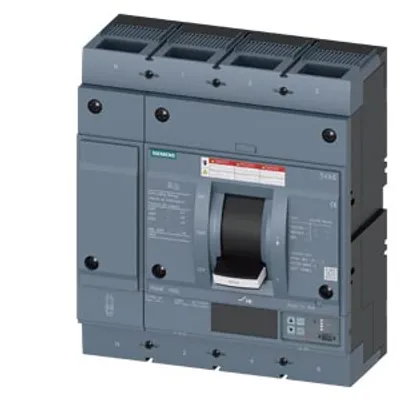

| 3VA6580-7JP42-2AA0 | CMAE | ETU550 | 17.01 kg | 776 A | 752 A |
| 3VA6580-7JP42-0AA0 | CMAE | ETU550 | 17.01 kg | 776 A | 752 A |
| 3VA6580-7JP36-2AA0 | CMAE | ETU550 | 17.755 kg | 776 A | 752 A |

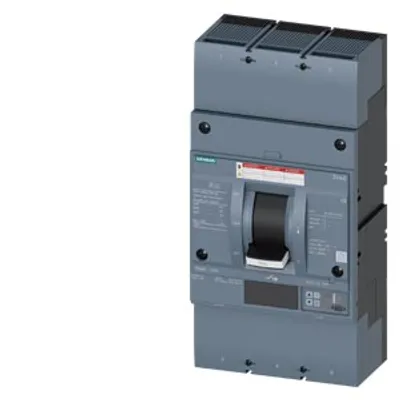

| 3VA6580-7JP36-0AA0 | CMAE | ETU550 | 17.755 kg | 776 A | 752 A |

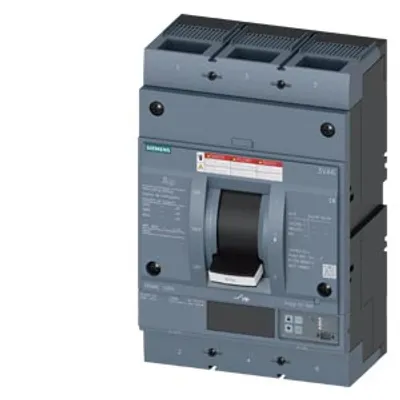

| 3VA6580-7JP32-2AA0 | CMAE | ETU550 | 13.3 kg | 776 A | 752 A |
| 3VA6580-7JP32-0AA0 | CMAE | ETU550 | 13.3 kg | 776 A | 752 A |

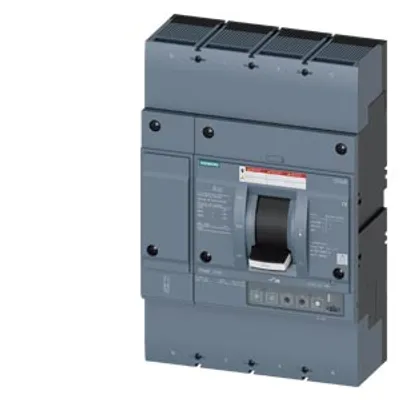

| 3VA6580-7HN46-2AA0 | CMAE | ETU350 | 23.298 kg | 776 A | 752 A |

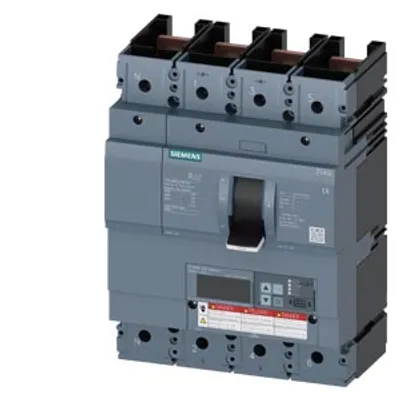

| 3VA6460-7KT41-0AA0 | CLAE | ETU856 | 6.9 kg | 540 A | 510 A |
| 3VA6460-7KM31-0AA0 | CLAE | ETU830 | 5.3 kg | 540 A | 510 A |
| 3VA6460-7HN41-0AA0 | CLAE | ETU350 | 6.9 kg | 575 A | 557 A |
| 3VA6460-7HN31-0AA0 | CLAE | ETU350 | 4.913 kg | 575 A | 557 A |

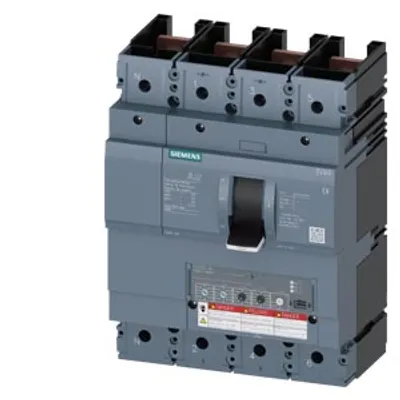

| 3VA6460-7HM41-0AA0 | CLAE | ETU330 | 6.9 kg | 575 A | 557 A |

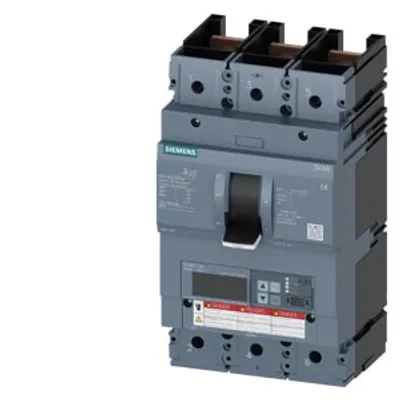

| 3VA6460-6JQ31-0AA0 | HLAE | ETU560 | 5.01 kg | 540 A | 510 A |
| 3VA6460-8HN31-0AA0 | LLAE | ETU350 | 4.884 kg | 575 A | 557 A |
| 3VA6460-8HM41-0AA0 | LLAE | ETU330 | 6.9 kg | 575 A | 557 A |
| 3VA6340-5KM41-0AA0 | MJAE | ETU830 | 6.9 kg | 375 A | 350 A |

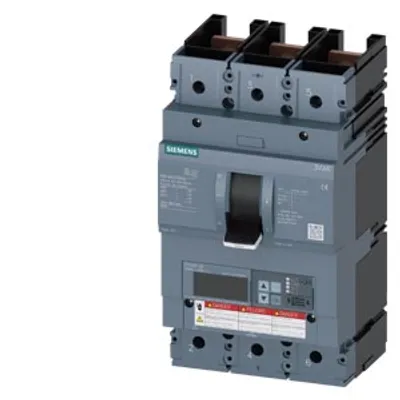

| 3VA6340-5JP31-0AA0 | MJAE | ETU550 | 5.3 kg | 375 A | 350 A |

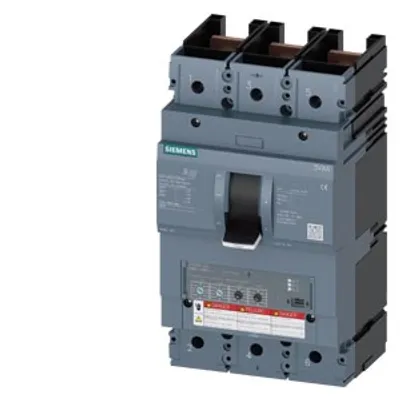

| 3VA6340-5HM31-0AA0 | MJAE | ETU330 | 5.3 kg | 385 A | 370 A |

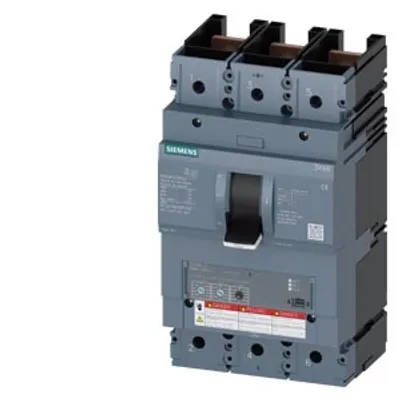

| 3VA6440-8HL31-2AA0 | LLAE | ETU320 | 5.3 kg | 400 A | 400 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| insulation voltage / rated value | 800 V |
| product component — undervoltage release | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
