3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | operational current — at 55 °C | operational current — at 60 °C | operational current — at 65 °C |
|---|---|---|---|---|---|
| 3VA6440-8HL31-0AA0 | LLAE | ETU320 | 400 A | 400 A | 400 A |

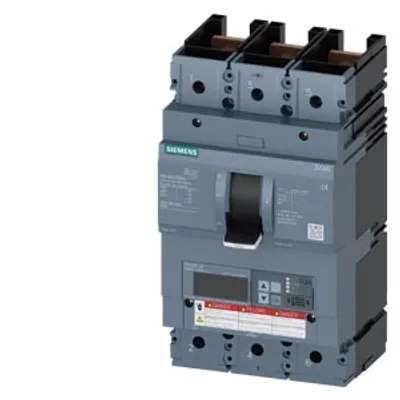

| 3VA6325-5JP31-0AA0 | MJAE | ETU550 | 250 A | 250 A | 250 A |
| 3VA6325-5HN41-2AA0 | MJAE | ETU350 | 250 A | 250 A | 250 A |
| 3VA6325-5HN41-0AA0 | MJAE | ETU350 | 250 A | 250 A | 250 A |
| 3VA6325-5HL41-2AA0 | MJAE | ETU320 | 250 A | 250 A | 250 A |
| 3VA6325-5HL41-0AA0 | MJAE | ETU320 | 250 A | 250 A | 250 A |

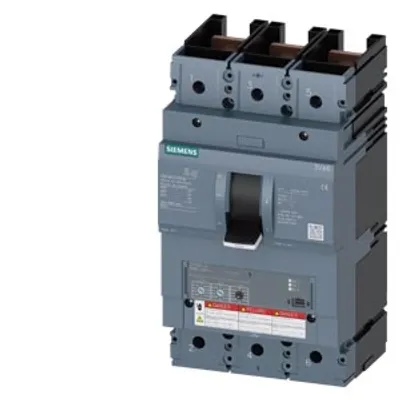

| 3VA6340-8HL31-0AA0 | LJAE | ETU320 | 385 A | 370 A | 355 A |
| 3VA6325-5JT41-2AA0 | MJAE | ETU556 | 250 A | 250 A | 250 A |
| 3VA6325-5JT41-0AA0 | MJAE | ETU556 | 250 A | 250 A | 250 A |
| 3VA6325-7JQ31-2AA0 | CJAE | ETU560 | 250 A | 250 A | 250 A |
| 3VA6325-7JQ31-0AA0 | CJAE | ETU560 | 250 A | 250 A | 250 A |

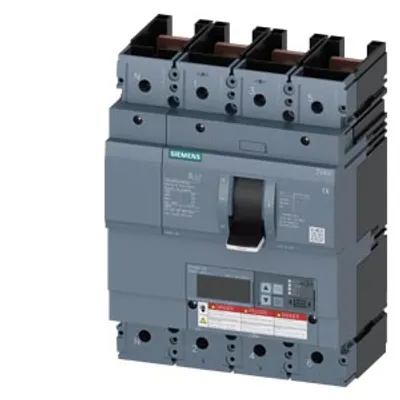

| 3VA6325-7JP41-2AA0 | CJAE | ETU550 | 250 A | 250 A | 250 A |

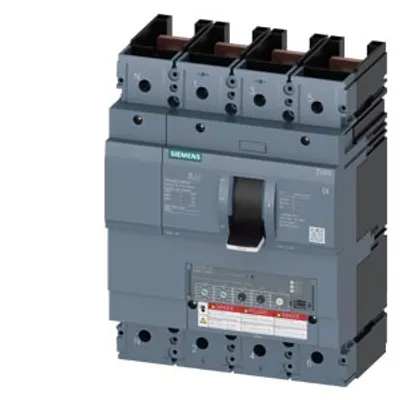

| 3VA6325-7HM41-0AA0 | CJAE | ETU330 | 250 A | 250 A | 250 A |
| 3VA6225-8JQ41-2AA0 | LFAE | ETU560 | 238 A | 225 A | 213 A |

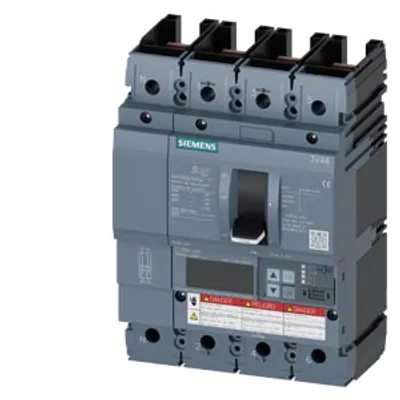

| 3VA6225-8JQ41-0AA0 | LFAE | ETU560 | 238 A | 225 A | 213 A |

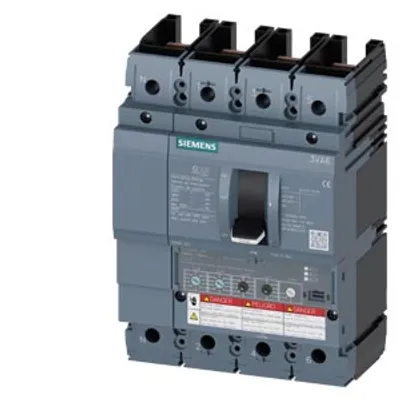

| 3VA6225-8HN41-2AA0 | LFAE | ETU350 | 241 A | 232 A | 222 A |
| 3VA6340-0HN41-0AA0 | EJAE | ETU350 | 385 A | 370 A | 355 A |

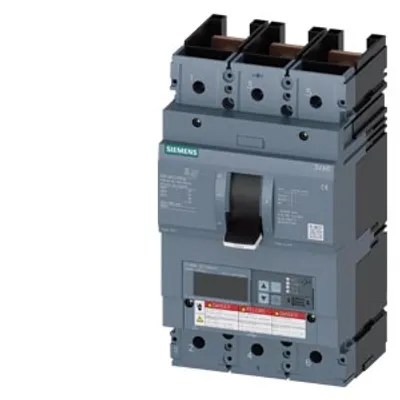

| 3VA6440-5KT31-0AA0 | MLAE | ETU856 | 400 A | 400 A | 400 A |
| 3VA6440-5KQ41-2AA0 | MLAE | ETU860 | 400 A | 400 A | 400 A |
| 3VA6440-5KQ41-0AA0 | MLAE | ETU860 | 400 A | 400 A | 400 A |
| 3VA6440-5KQ31-0AA0 | MLAE | ETU860 | 400 A | 400 A | 400 A |
| 3VA6460-5KP41-0AA0 | MLAE | ETU850 | 540 A | 510 A | 480 A |
| 3VA6460-5JQ41-0AA0 | MLAE | ETU560 | 540 A | 510 A | 480 A |
| 3VA6580-6JQ46-0AA0 | HMAE | ETU560 | 776 A | 752 A | 708 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — minimum | 0.5 s |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
