3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | power loss [W] / maximum | Net Weight | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|

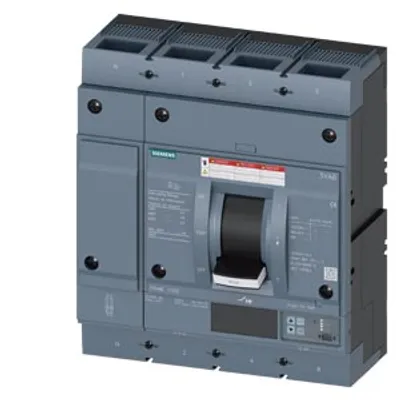

| 3VA6580-6JQ42-2AA0 | HMAE | ETU560 | 231 W | 17.01 kg | 1 200 A |
| 3VA6580-6JQ42-0AA0 | HMAE | ETU560 | 231 W | 17.01 kg | 1 200 A |
| 3VA6580-6JQ36-2AA0 | HMAE | ETU560 | 231 W | 17.755 kg | 1 200 A |

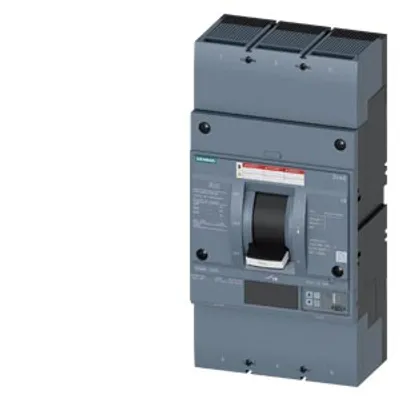

| 3VA6580-6JQ36-0AA0 | HMAE | ETU560 | 231 W | 17.755 kg | 1 200 A |

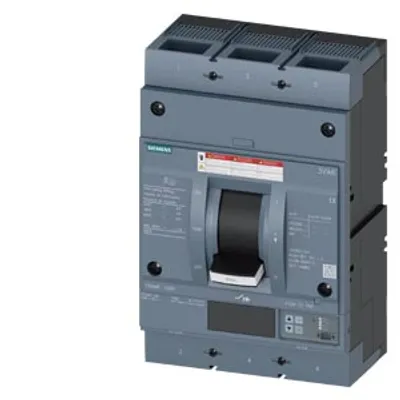

| 3VA6580-6JQ32-2AA0 | HMAE | ETU560 | 231 W | 16.5 kg | 1 200 A |
| 3VA6580-6JQ32-0AA0 | HMAE | ETU560 | 231 W | 14.12 kg | 1 200 A |

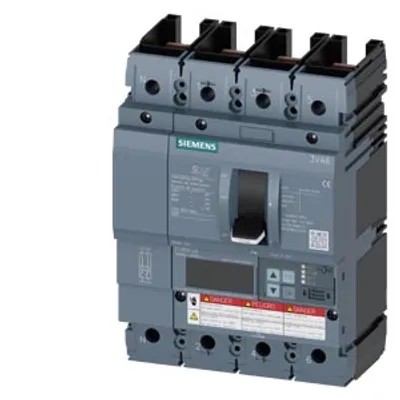

| 3VA6210-8KP41-0AA0 | LFAE | ETU850 | 6.7 W | 3.2 kg | 150 A |

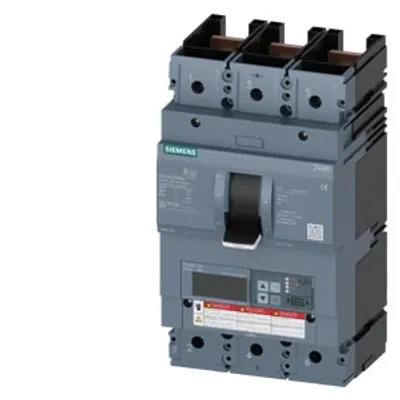

| 3VA6460-8KM31-0AA0 | LLAE | ETU830 | 151 W | 5.3 kg | 900 A |

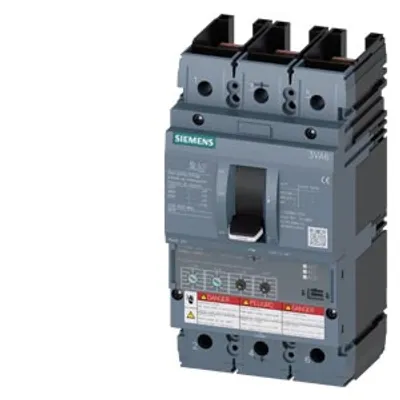

| 3VA6225-5HM31-0AA0 | MFAE | ETU330 | 42 W | 2.5 kg | 375 A |

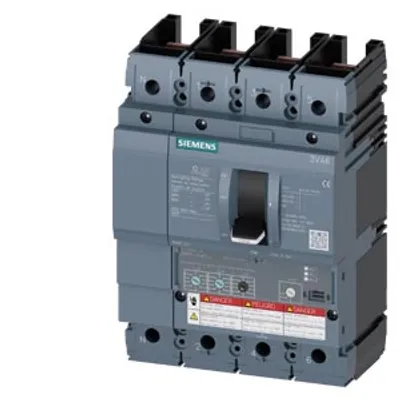

| 3VA6225-5HL41-2AA0 | MFAE | ETU320 | 42 W | 2.9 kg | 375 A |
| 3VA6225-5HL41-0AA0 | MFAE | ETU320 | 42 W | 2.821 kg | 375 A |

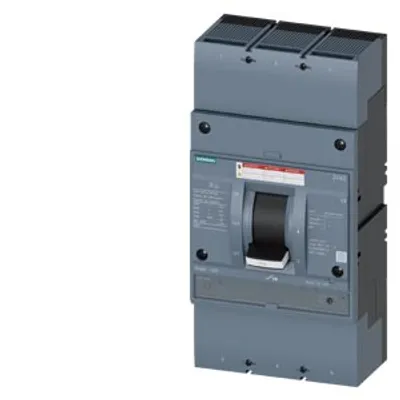

| 3VA5580-5EC36-2AA0 | MMAS | TM230 | 210 W | 16.986 kg | 4 000 A |
| 3VA5580-5EC36-1AA0 | MMAM | TM230 | 210 W | 17.66 kg | 4 000 A |
| 3VA5580-5EC36-0AA0 | MMAS | TM230 | 210 W | 18.45 kg | 4 000 A |
| 3VA5580-5EC32-2AA0 | MMAS | TM230 | 210 W | 12.76 kg | 4 000 A |
| 3VA5580-5EC32-1AA0 | MMAM | TM230 | 210 W | 13.362 kg | 4 000 A |

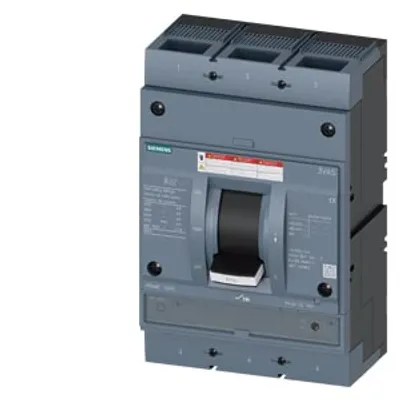

| 3VA5580-5EC32-0AA0 | MMAS | TM230 | 210 W | 14.217 kg | 4 000 A |
| 3VA5580-1MH36-0AA0 | CMAP | TM120M | 210 W | 17.66 kg | 4 800 A |
| 3VA5712-6BB31-0AA0 | HNAS | MCS110 | 249 W | 24.37 kg | 12 000 A |
| 3VA5712-5EC61-2AA0 | MNAS | TM230 | 249 W | 3.133 kg | 6 000 A |

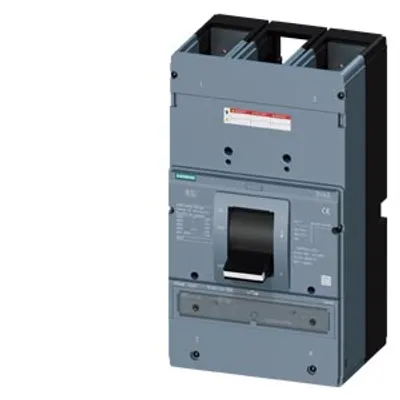

| 3VA5712-5EC61-1AA0 | MNAM | TM230 | 249 W | 3.133 kg | 6 000 A |
| 3VA5712-5EC61-0AA0 | MNAS | TM230 | 249 W | 3.133 kg | 6 000 A |
| 3VA5712-5EC31-2AA0 | MNAS | TM230 | 249 W | 24.65 kg | 6 000 A |
| 3VA5712-5EC31-1AA0 | MNAM | TM230 | 249 W | 3.133 kg | 6 000 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| product component — undervoltage release | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
| ambient temperature — during operation / minimum | -25 °C |
| ambient temperature — during operation / maximum | 70 °C |
