3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | Net Weight | operational current — at 55 °C | operational current — at 60 °C |
|---|---|---|---|---|---|
| 3VA6610-7KL42-0AA0 | CMNAE | ETU820 | 17.02 kg | 840 A | 800 A |
| 3VA6610-7KL36-0AA0 | CMNAE | ETU820 | 17.755 kg | 840 A | 800 A |
| 3VA6610-7KL32-0AA0 | CMNAE | ETU820 | 13.362 kg | 840 A | 800 A |
| 3VA6580-7KT32-2AA0 | CMAE | ETU856 | 13.3 kg | 776 A | 752 A |

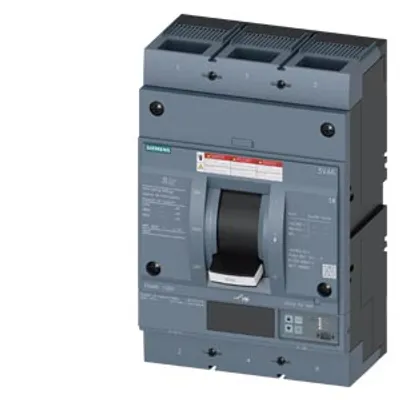

| 3VA6580-7KT32-0AA0 | CMAE | ETU856 | 13.3 kg | 776 A | 752 A |
| 3VA6580-7KQ46-2AA0 | CMAE | ETU860 | 23.298 kg | 776 A | 752 A |

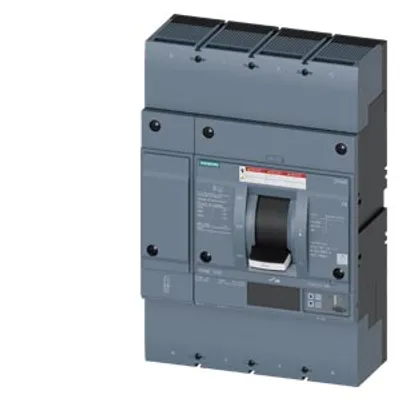

| 3VA6580-7KQ46-0AA0 | CMAE | ETU860 | 23.298 kg | 776 A | 752 A |
| 3VA6580-7KQ42-2AA0 | CMAE | ETU860 | 17.01 kg | 776 A | 752 A |
| 3VA6580-7KQ42-0AA0 | CMAE | ETU860 | 18.29 kg | 776 A | 752 A |
| 3VA6580-7KQ36-2AA0 | CMAE | ETU860 | 17.755 kg | 776 A | 752 A |

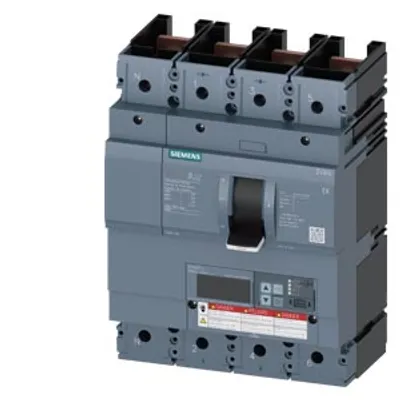

| 3VA6460-7KL41-0AA0 | CLAE | ETU820 | 6.9 kg | 540 A | 510 A |
| 3VA6460-7KL31-0AA0 | CLAE | ETU820 | 5.3 kg | 540 A | 510 A |
| 3VA6460-7JQ41-0AA0 | CLAE | ETU560 | 6.9 kg | 540 A | 510 A |
| 3VA6460-6JP41-0AA0 | HLAE | ETU550 | 6.9 kg | 540 A | 510 A |

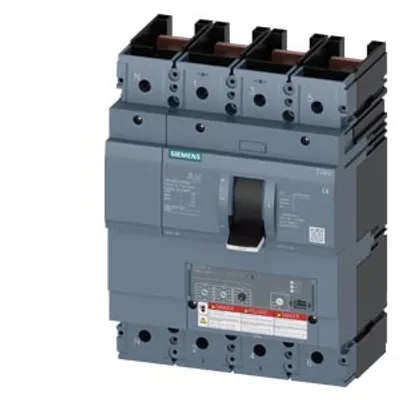

| 3VA6460-0HL41-0AA0 | ELAE | ETU320 | 6.9 kg | 575 A | 557 A |

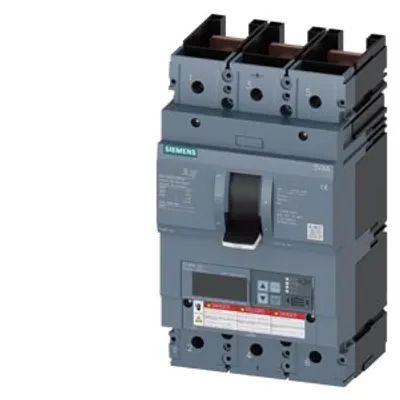

| 3VA6460-6KP31-0AA0 | HLAE | ETU850 | 5.3 kg | 540 A | 510 A |
| 3VA6460-6KM41-0AA0 | HLAE | ETU830 | 6.9 kg | 540 A | 510 A |
| 3VA6460-8KL31-0AA0 | LLAE | ETU820 | 5.3 kg | 540 A | 510 A |

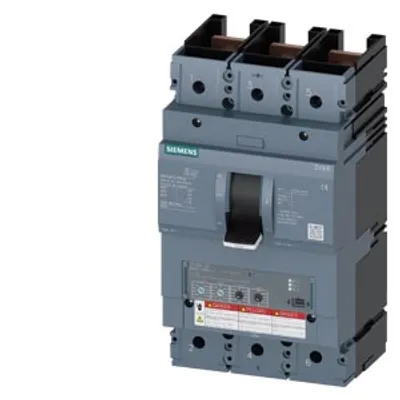

| 3VA6340-5HN31-0AA0 | MJAE | ETU350 | 4.83 kg | 385 A | 370 A |
| 3VA6340-5HM41-0AA0 | MJAE | ETU330 | 6.9 kg | 385 A | 370 A |
| 3VA6340-5HL41-0AA0 | MJAE | ETU320 | 6.9 kg | 385 A | 370 A |

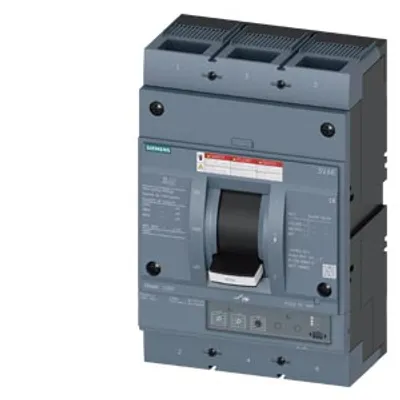

| 3VA6560-5HL32-0AA0 | MMAE | ETU320 | 13.2 kg | 600 A | 600 A |
| 3VA6340-8KQ31-0AA0 | LJAE | ETU860 | 5.057 kg | 375 A | 350 A |

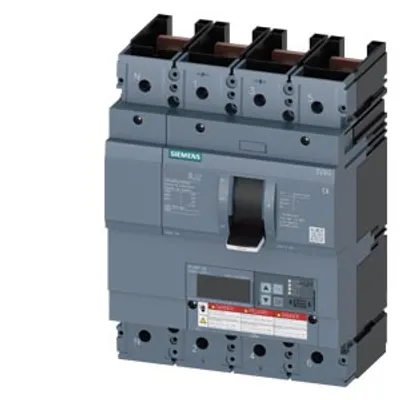

| 3VA6340-8KP41-0AA0 | LJAE | ETU850 | 6.9 kg | 375 A | 350 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — minimum | 0.5 s |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
