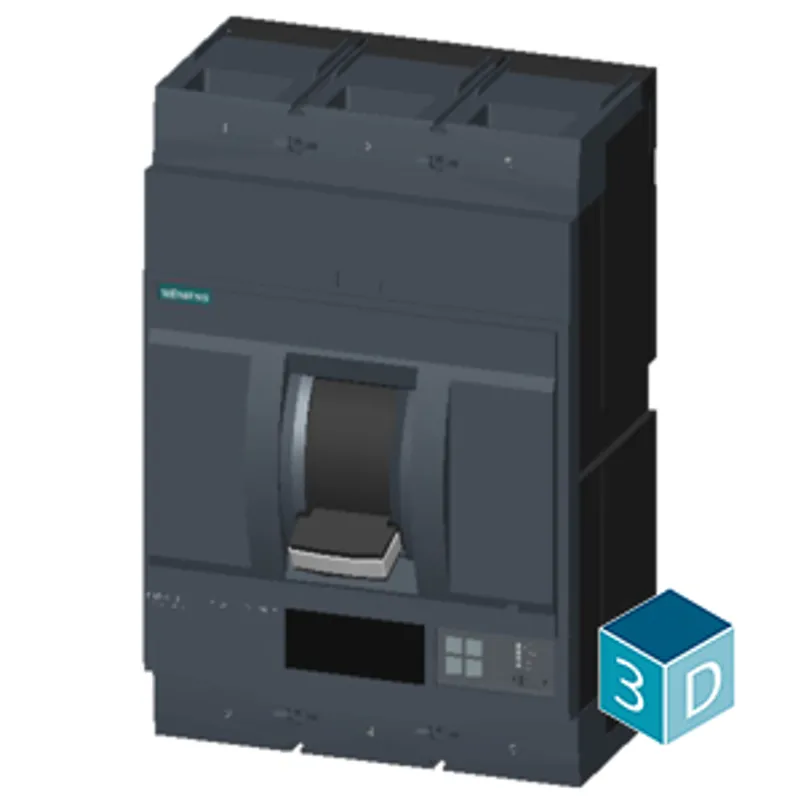

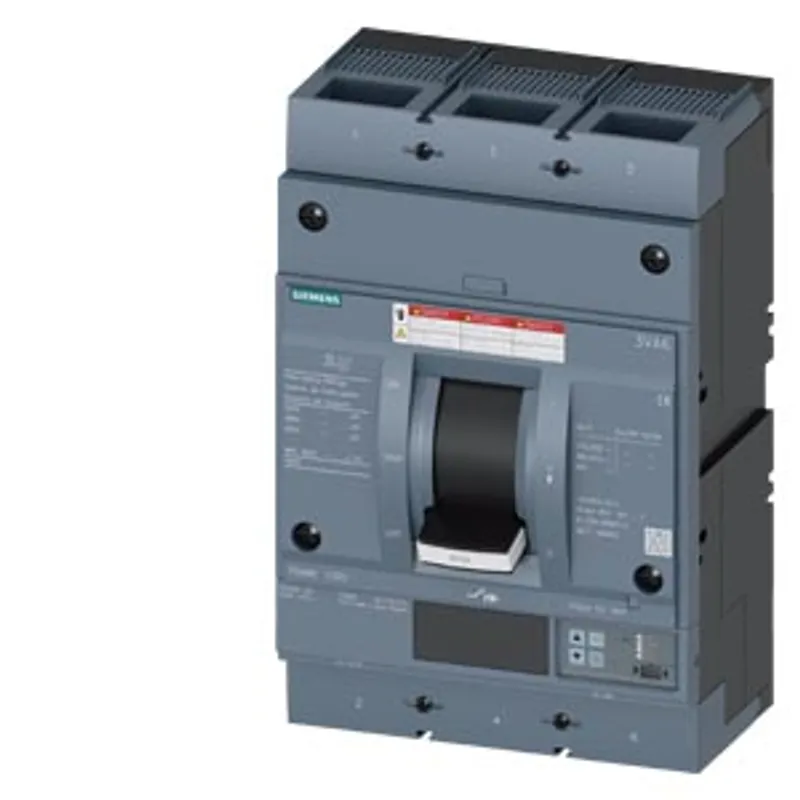

Siemens 3VA6580-7JP32-0AA0
Circuit breaker 3VA6 UL Frame 800 breaking capacity class C 100 kA @ 480 V 3-pole, line protection ETU550
- MPN
- 3VA6580-7JP32-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

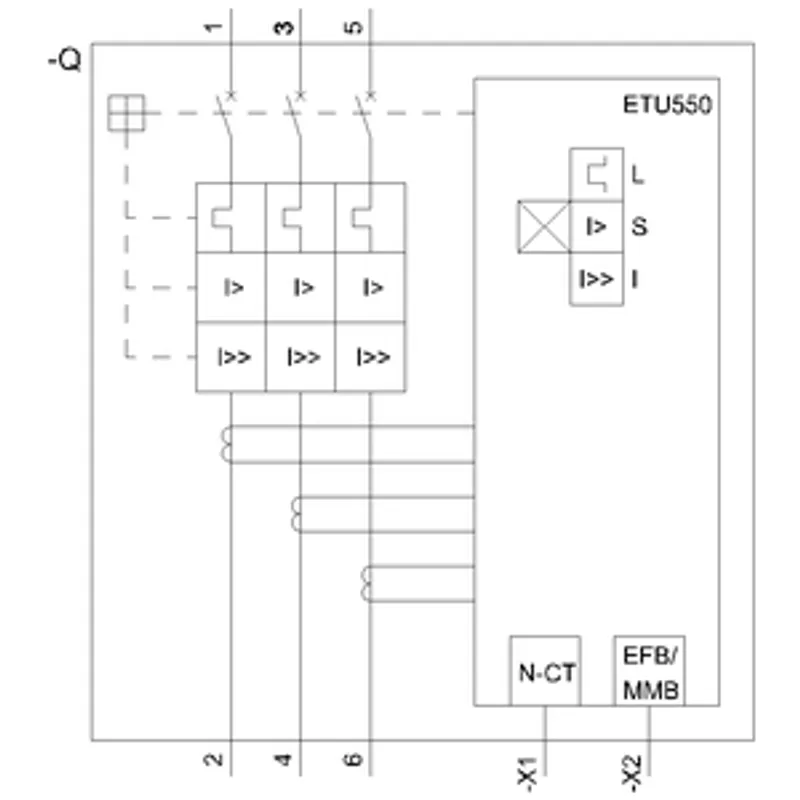

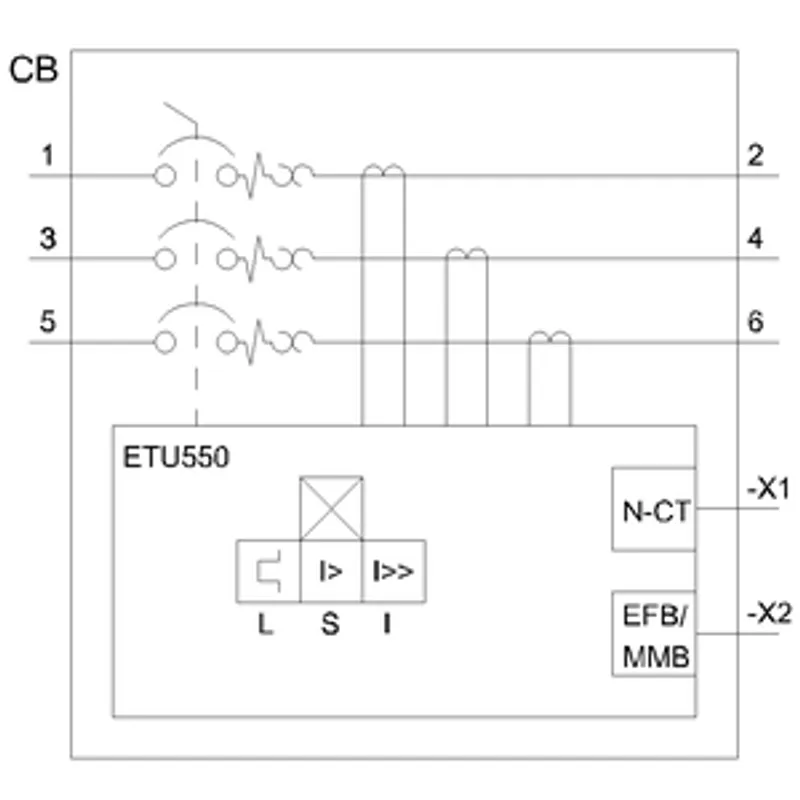

What is the Siemens 3VA6580-7JP32-0AA0?
circuit breaker 3VA6 UL Frame 800 breaking capacity class C 100 kA @ 480 V 3-pole, line protection ETU550, LSI, In=800 A overload protection Ir=315 A ...800 A short-circuit protection Isd=0.6..10x In, Ii=1.5..10x In neutral conductor protection optionally with ext. CT up to 160% nut keeper kit
Specifications
Model
| product brand name | SENTRON |
| product designation | Molded-case circuit breaker |
| product designation / according to UL file | CMAE |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| design of the overcurrent release | ETU550 |
| protection function of the overcurrent release | LSI |
| number of poles | 3 |
General technical data
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| power loss [W] / maximum | 231 W |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 77 W |
| mechanical service life (operating cycles) / typical | 10 000 |
| electrical endurance (operating cycles) / at AC-1 / at 380/415 V | 5 800 |
| electrical endurance (operating cycles) / at AC-1 / at 690 V | 4 000 |
| electrical endurance (operating cycles) / at 480 V | 5 800 |
| electrical endurance (operating cycles) / at 600 V | 4 000 |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | Yes |
| ground-fault monitoring version | without |
| product function — communication function | Yes |
| product function — other measurement function | No |
| Net Weight | 13.3 kg |
Current
| marking / according to UL 489 / 100%-rated breaker | No |
| operational current — at 40 °C | 800 A |
| operational current — at 45 °C | 800 A |
| operational current — at 50 °C | 800 A |
| operational current — at 55 °C | 776 A |
| operational current — at 60 °C | 752 A |
| operational current — at 65 °C | 708 A |
| operational current — at 70 °C | 664 A |
Switching capacity according to IEC 60947
| switching capacity class of the circuit breaker | C |
| maximum short-circuit current breaking capacity (Icu) — at 240 V | 200 kA |
| maximum short-circuit current breaking capacity (Icu) — at 415 V | 110 kA |
| maximum short-circuit current breaking capacity (Icu) — at 690 V | 35 kA |
| operating short-circuit current breaking capacity (Ics) — at 240 V | 150 kA |
| operating short-circuit current breaking capacity (Ics) — at 415 V | 85 kA |
| operating short-circuit current breaking capacity (Ics) — at 690 V | 19 kA |
| short-circuit current making capacity (Icm) — at 240 V | 440 kA |
| short-circuit current making capacity (Icm) — at 415 V | 242 kA |
| short-circuit current making capacity (Icm) — at 690 V | 74 kA |
Switching capacity according to UL 489
| current breaking capacity — at 240 V | 200 kA |
| current breaking capacity — at 480 V | 100 kA |
| current breaking capacity — at 600 V | 50 kA |
Adjustable parameters
| adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum | 315 A |
| adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — maximum | 800 A |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — minimum | 0.5 s |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — maximum | 25 s |
| adjustable response value setting current (Isd) / of S-trip / with I0t characteristic — minimum | 480 A |
| adjustable response value setting current (Isd) / of S-trip / with I0t characteristic — maximum | 8 000 A |
| adjustable response value setting current (Isd) / of S-trip / with I2t characteristic — minimum | 480 A |
| adjustable response value setting current (Isd) / of S-trip / with I2t characteristic — maximum | 8 000 A |
| adjustable response value delay time (tsd) / for S-tripping / with I0t characteristic — minimum | 0.05 s |
| adjustable response value delay time (tsd) / for S-tripping / with I0t characteristic — maximum | 0.5 s |
| adjustable response value delay time (tsd) / for S-tripping / with I2t characteristic — minimum | 0.05 s |
| adjustable response value delay time (tsd) / for S-tripping / with I2t characteristic — maximum | 0.5 s |
| adjustable response value setting current (Ii) / for I-tripping — minimum | 1 200 A |
| adjustable response value setting current (Ii) / for I-tripping — maximum | 8 000 A |
| adjustable setting current (InN) / for N-tripping — minimum | 0 A |
| adjustable setting current (InN) / for N-tripping — maximum | 0 A |
| design of the N-conductor protection | adjustable OFF; 20% to 160% |
| product function / grounding protection | No |

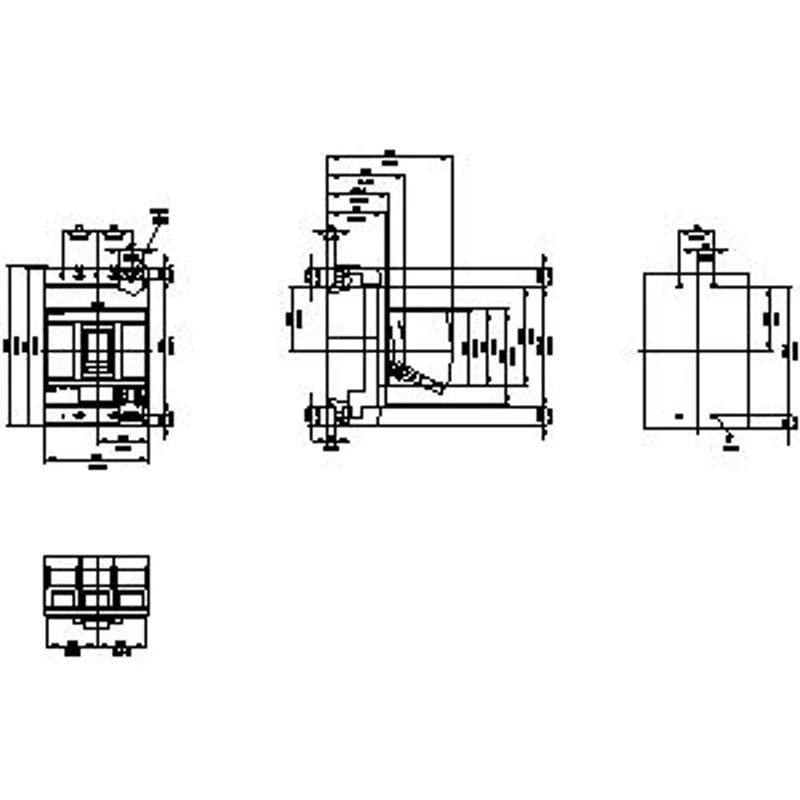

Mechanical Design
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| height [in] | 12.91 in |
| height | 328 mm |
| width [in] | 8.27 in |
| width | 210 mm |
| depth [in] | 4.72 in |
| depth | 120 mm |
Connections
| arrangement of electrical connectors / for main current circuit | Front connection |
| type of electrical connection / for main current circuit | nut keeper kit on both ends |
| type of connectable conductor cross-sections / for flat-bar terminal connection / minimum | 20 x 4 mm |
| type of connectable conductor cross-sections / for flat-bar terminal connection / maximum | 50 x 28 mm |
Auxiliary circuit
| number of CO contacts / for auxiliary contacts | 0 |
Accessories
| product extension / optional / motor drive | No |
Environmental conditions
| protection class IP / on the front | IP40 |
| ambient temperature — during operation / minimum | -25 °C |
| ambient temperature — during operation / maximum | 70 °C |
| ambient temperature — during storage / minimum | -40 °C |
| ambient temperature — during storage / maximum | 80 °C |
| reference code / according to IEC 81346-2 | Q |
