3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | protection function of the overcurrent release | Net Weight | operational current — at 55 °C |
|---|---|---|---|---|---|
| 3VA6340-8JT31-0AA0 | LJAE | ETU556 | LSI-G-alarm only | 5.3 kg | 375 A |
| 3VA6340-8JQ41-0AA0 | LJAE | ETU560 | LSIG | 6.9 kg | 375 A |
| 3VA6340-5KQ31-0AA0 | MJAE | ETU860 | LSIG | 5.3 kg | 375 A |

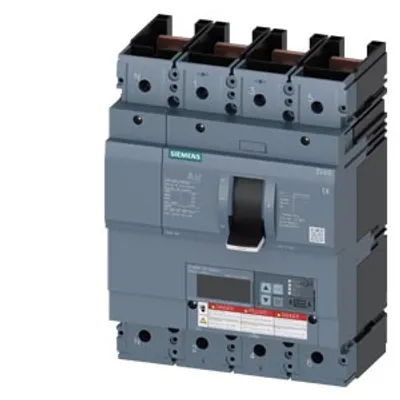

| 3VA6440-7KT41-2AA0 | CLAE | ETU856 | LSI-G-alarm only | 6.9 kg | 400 A |
| 3VA6440-7KT41-0AA0 | CLAE | ETU856 | LSI-G-alarm only | 6.9 kg | 400 A |
| 3VA6325-8KP41-0AA0 | LJAE | ETU850 | LSI | 6.9 kg | 250 A |

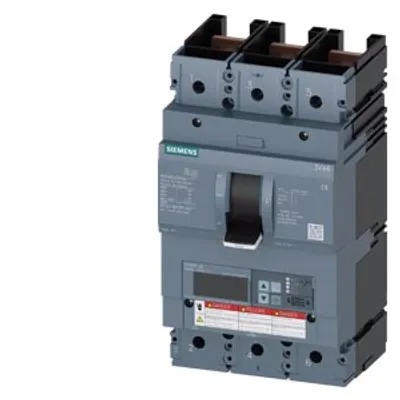

| 3VA6325-8KP31-2AA0 | LJAE | ETU850 | LSI | 5.3 kg | 250 A |
| 3VA6325-8KM31-0AA0 | LJAE | ETU830 | LIG | 5.3 kg | 250 A |
| 3VA6325-8KL41-2AA0 | LJAE | ETU820 | LI | 6.9 kg | 250 A |
| 3VA6325-8KL41-0AA0 | LJAE | ETU820 | LI | 6.9 kg | 250 A |
| 3VA6325-5KP31-2AA0 | MJAE | ETU850 | LSI | 5.3 kg | 250 A |
| 3VA6325-5KP31-0AA0 | MJAE | ETU850 | LSI | 4.5 kg | 250 A |
| 3VA6325-5KM41-2AA0 | MJAE | ETU830 | LIG | 6.9 kg | 250 A |
| 3VA6325-5KM41-0AA0 | MJAE | ETU830 | LIG | 6.9 kg | 250 A |

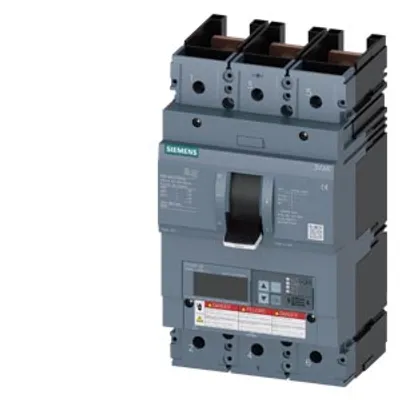

| 3VA6325-7JP31-0AA0 | CJAE | ETU550 | LSI | 5.3 kg | 250 A |

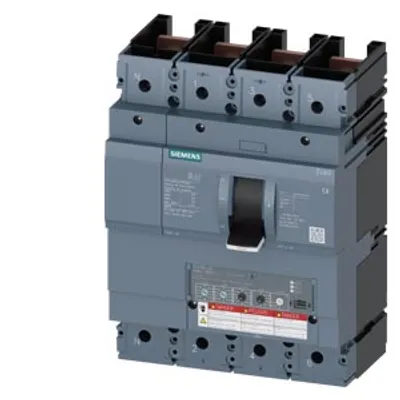

| 3VA6325-7HN41-2AA0 | CJAE | ETU350 | LSI | 6.9 kg | 250 A |
| 3VA6325-7HN41-0AA0 | CJAE | ETU350 | LSI | 6.9 kg | 250 A |
| 3VA6325-7KT41-0AA0 | CJAE | ETU856 | LSI-G-alarm only | 6.9 kg | 250 A |
| 3VA6780-5HM31-2AA0 | MNAE | ETU330 | LIG | 3.133 kg | 800 A |
| 3VA6780-5HM31-0AA0 | MNAE | ETU330 | LIG | 3.133 kg | 800 A |
| 3VA6780-5HL31-2AA0 | MNAE | ETU320 | LI | 3.133 kg | 800 A |
| 3VA6780-5HL31-0AA0 | MNAE | ETU320 | LI | 3.133 kg | 800 A |
| 3VA6712-6HM31-2AA0 | HNAE | ETU330 | LIG | 25.6 kg | 1 200 A |

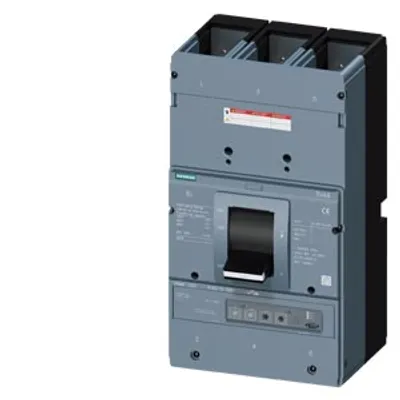

| 3VA6712-6HM31-0AA0 | HNAE | ETU330 | LIG | 25.75 kg | 1 200 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| insulation voltage / rated value | 800 V |
| product component — undervoltage release | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
